Musktool-SKZ2054C handheld combustible BR2 Bromine gas detector

Overview

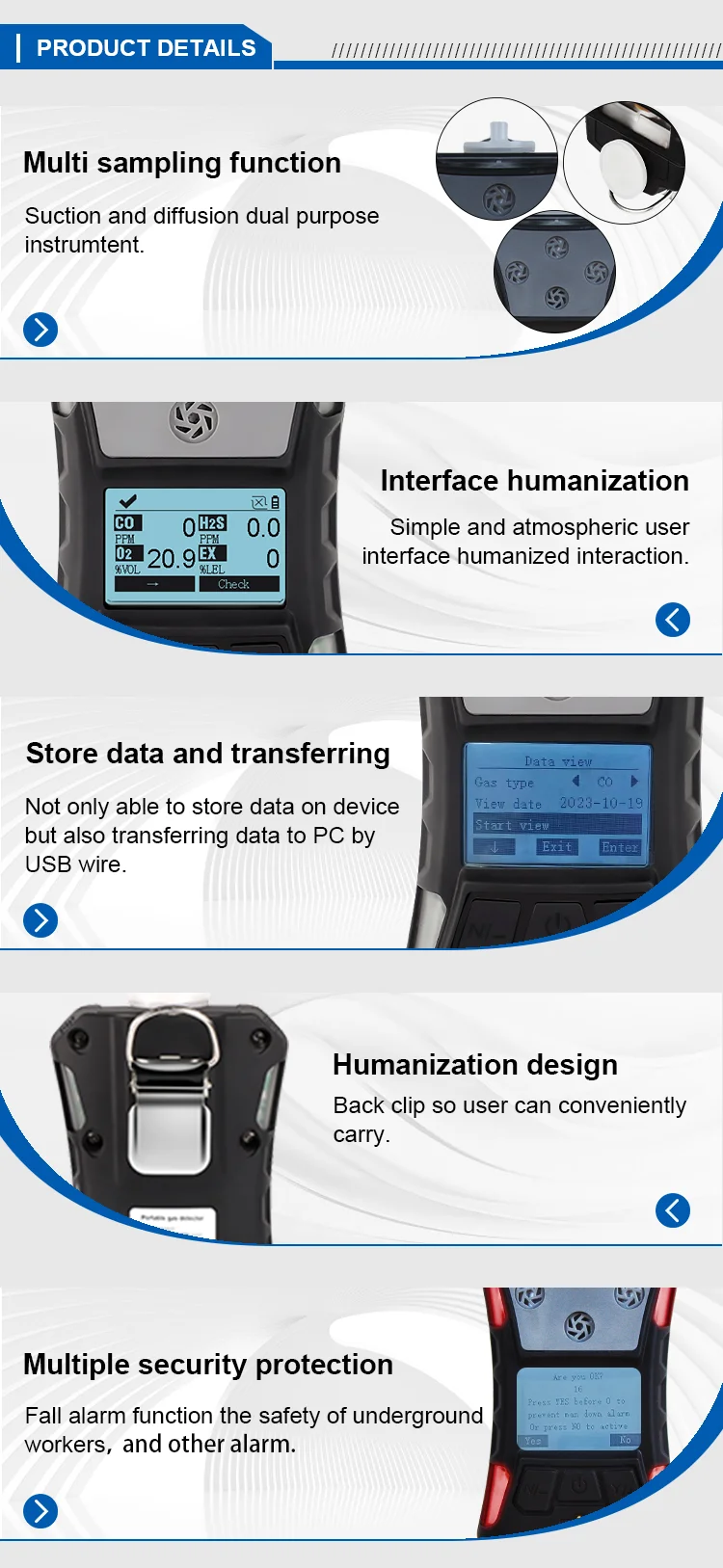

SKZ2054C is a portable gas detector which can show real-time data and send alarms when the reading reaches the set value.
The device is a suction and diffusion dual purpose instrument. When the pump fails to work, it can automatically switch to the diffusion sampling mode. It is also with back clip so user can conveniently carry. It is with data log function. Which is not only able to store data on device but also transferring data to PC by USB wire.
It is IECEX, ATEX explosion-proof certified and its protection level reaches IP67.

Feature

Durable and sturdy, resistant to falling
The main body can effectively resist a 3-meter drop
Protection level reaches IP67
Through EMC anti-static interference testing, it can also operate normally in the intercom environment

Explosion-proof circuit design, safe and reliable IECEx, ATEX explosion-proof certification Explosion proof level reaches ExiaIICT4 Ga/ExiaIICT4 Gb
Multiple security protection
1) . Fall alarm function ensures the safety of underground workers
2). Password protection function to prevent non operators from modifying menu parameters
3). Safety reminder function, multiple alarm prompts for sound, light, and vibration, allowing operators to work with greater
peace of mind
4). High and low alarm locking function allows operators to better capture sudden changes in gas concentration values
Simultaneous measurement of multiple gases, multiple numerical display
Can simultaneously detect 1-5 gases
Real time value, TWA, STEL, MAX, MIN multiple numerical display
Powerful function, more user-friendly operation
The screen can automatically flip 180 degrees, making it easy to view in special work environments
Pump suction and diffusion dual-use, providing more reliable protection for operators
Equipped with a water trap filter, effectively filtering water, oil, and dust impurities
Optional Bluetooth function for real-time data transmission to mobile or PC devices
Optional mobile app function for viewing real-time data on the phone
Unique modifiable ID identification function, convenient for users to assign and manage

Sampling method	Pump suction & diffusion dual-use type
Gas type	BR2
Measure range	0-10,50,100ppm
Sensor Principle	Electrochemical principles
Resolution	0.01PPM
Response time	≤30 seconds
Language	Chinese/English
Accuracy	≤±2%F.S
Automatically test and calibrate after power-on	Including reset, maximum value (MAX), minimum value (MIN), STEL, TWA value
Measure unit	PPM and mg/m³ can be switched
Display	Monochrome graphics (160 x96) ,screen can be automatically flipped
Backlight	The backlight time can be manually set, and will be turned on automatically when an alarm is issued
Data record	Can store 100,000 sets data, the storage interval is adjustable from 5 to 3600 seconds, data can be exported
Alarm	95dB buzzer (@30cm), vibration alarm and flashing red LED and alarm status indication on the screen, alarm latched; diagnostic alarm and battery undervoltage alarm, pump block alarm; man down alarm, with early warning and optional real-time remote Bluetooth notification function
Battery	3.7V rechargeable lithium battery, battery capacity 2200mA
Working hours	More than 15 hours in continuous pumping mode
Charger	Travel charger with DC interface, charging time ≥ 4 hours
Explosion-proof grade	IECEX/ATEX(II IG Ex ia IIC T4 CNEX: Ex ia IIC T4 Ga
Certification (EU regulations)	2004/108/EC(EMC) 1995/5/EC(Radio) 94/9/EC(ATEX)
Protection grade	IP67
Working temperature	-20ºC~+50ºC
Humidity	0~90%RH(no condensation)
Environmental pressure	86~106Kpa
Size	15784.559.5mm (including back clip/water trap filter) (length * width * height)
Weight	365g (including battery, belt clip and filter)
