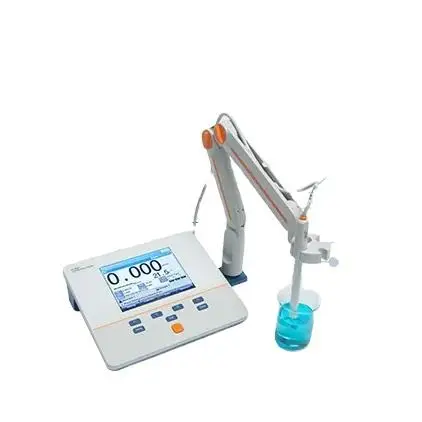

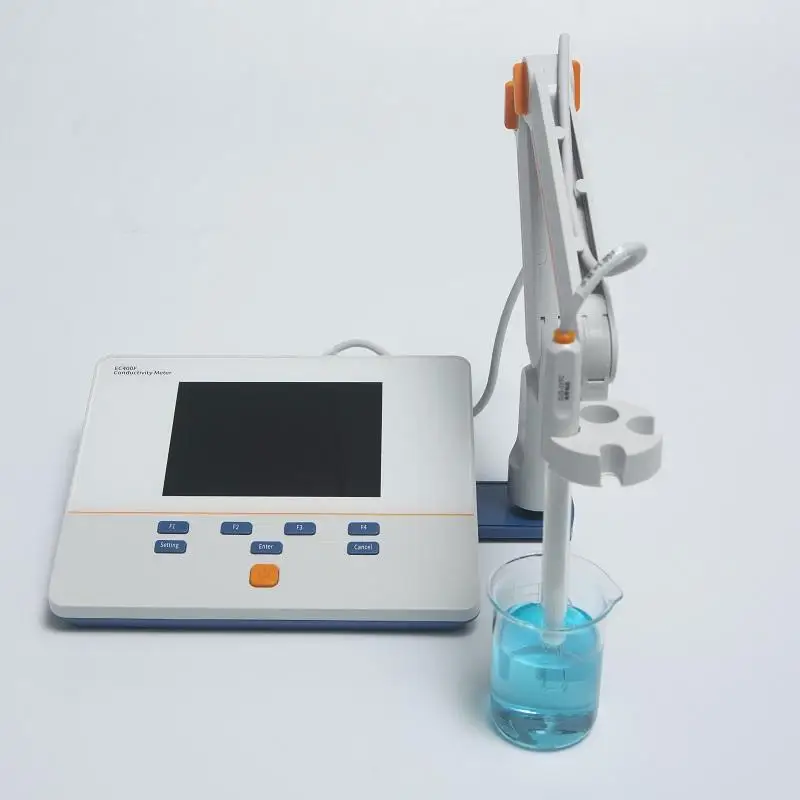

Musktool-High Quality Lab EC400F Bench Top Conductivity Meter
GENERAL FEATURES
1. High resolution LCD display, 5.7 inches. 2. Multi-reading feature allows auto-read, timed-read and continuous-read. 3. Automatic/Manual temperature compensation ensures accurate results. 4. Auto-hold feature senses and locks the measurement endpoint. 5. Data Storage 500 sets (GLP-compliant). 6. Support for USB or RS-232 communication. 7. Reset feature automatically resumes all settings back to factory default options. 8. IP54 waterproof. 9. 1-3 points calibration with Standard Recognition. 10. Settable parameters, including cell constant, temperature compensation coefficient and TDS factor. 11. Temperature compensation type (none, linear, pure water). Includes 1. DJS-1VTC EC electrode 2. 1413μS/cm EC standard solution, 50ml, 1 vial 3. REX-5 electrode stand |
Specification
Model | EC400F | |
Parameters | EC/Temp.(Resistivity/TDS/Sal.) | |
Conductivity | Range | 0.000 μS/cm to 1000 mS/cm |
Resolution | 0.001 μS/cm minimum, | |
Accuracy | ±0.5% FS | |
Reference Temperature | 20, 25 ºC | |
Calibration Points | Up to 3 | |
Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
Resistivity | Range | 5.00 Ω·cm~100.0 MΩ·cm |
Resolution | 0.01 Ω·cm minimum | |
Accuracy | ±0.5% FS | |
TDS | Range | 0.00ppm~1000ppt |
Resolution | 0.01 ppm minimum, various with range selection | |
Accuracy | ±0.5% FS | |
Salinity | Range | 0.0~80.0 ppt |
Resolution | 0.1ppt | |
Accuracy | ±1ppt | |
Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
Unit | ºC, ºF | |
Resolution | 0.1 | |
Accuracy | ±0.1ºC | |
Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
Reading Prompts | Reading, Stable, Locked | |
Temp. Compensation | ATC, MTC | |
Data management | Data Storage | 500 results each |
GLP Features | Yes | |

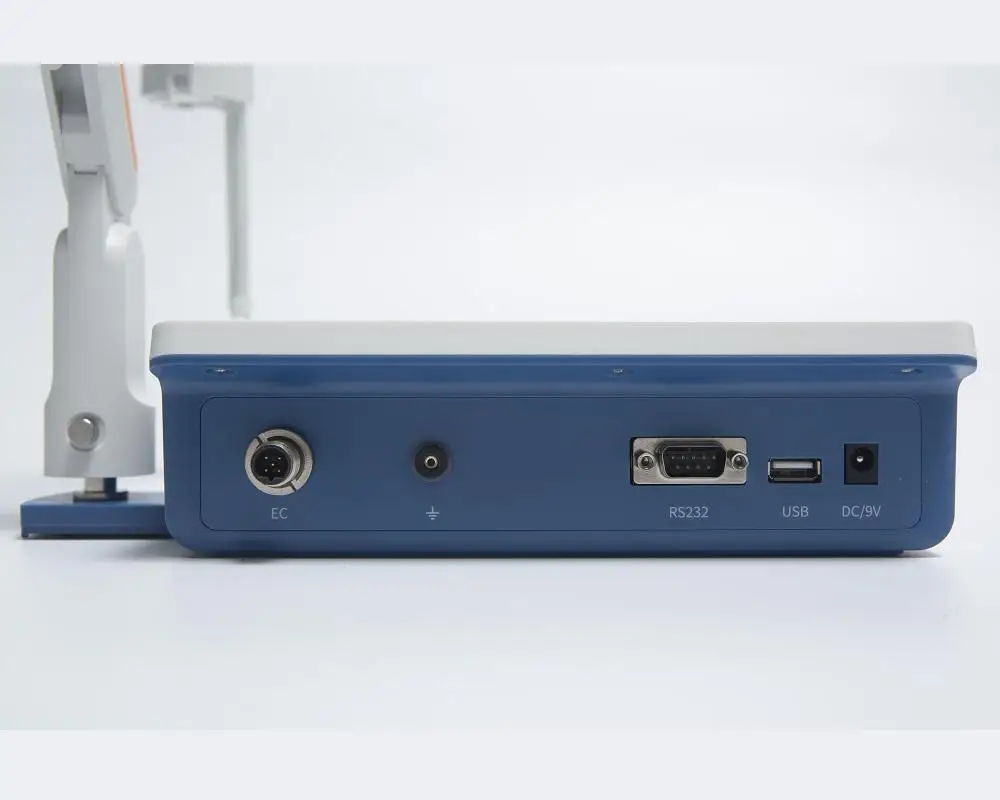

Conductivity with Temp. Probe | 5-pin aviation connector | |
Outputs | USB | PC |
RS 232 | printer | |
Display options | Backlight | Yes |
Auto Shutdown | 1~60 min, off | |
IP Rating | IP54 | |
Date and Time | Yes | |
General | Power | AC Adapter, 100-240V AC input, DC9V output |
Dimensions | 242×195×68 mm | |
Weight | 900g (1.98 lb) | |
Dimensions (Carton) | 370×305×330 mm | |
Weight (Gross) | 2.5 kg | |
