Musktool-1000PPM MiniMeta explosion-proof handheld CO gas leakage detector Safety industrial carbon monoxide monitor arm
Overview

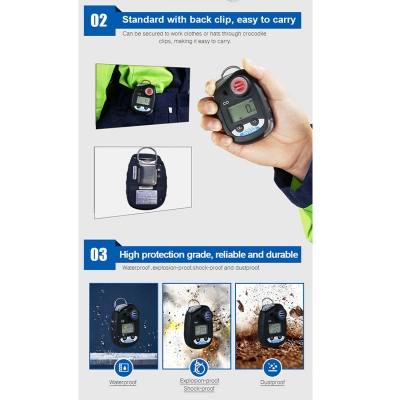

MiniMeta is a maintenance free single gas detector that is the most reliable, user-friendly, and cost-effective detection solution to ensure worker safety and operational compliance. It provides up to 2 years of protection - no calibration, no sensor replacement, no battery replacement or battery charging required. Passed IECEx, ATEX, and CNEX explosion-proof certifications, meeting the highest standards of quality and reliability, ensuring your safety and compliance. Compact, sturdy, ergonomic, and can be secured to work clothes or hats through crocodile clips, making it easy to carry. |
Feature
| * Low power and long standby, with a standby time of up to 2 years, without the need to replace the battery. * Maintenance free: Just turn on the device and it can run continuously - no calibration, no sensor replacement, no battery charging required. * Automatic Self check function to improve safety. * Ultra high buzzer alarm sound, 2 bright red LED for LOW and HIGH alarms, and triple alarms for sound, light, and vibration. * High alarm, low alarm, TWA, STEL multiple alarm types, allowing users to adjust alarm setpoints as needed throughout the entire lifecycle. * Automatically record 10 recent alarm events for easy and accurate record keeping. * Protection level IP66/IP68, waterproof, dustproof, explosion-proof, shockproof, intrinsically safe circuit design. * Compact and lightweight design, two button operation, without the need for extensive training. * Economical and low cost, Small size, light weight, and easy to carry. * The shell is made of high-strength materials, designed specifically for various harsh environments, making it comfortable and durable. |
Sampling method | Diffusion type |
Gas type | CO |
Measure range | 0-500,1000,2000ppm |
Resolution | 1PPM |
Sensor Principle | Electrochemical principle |
Response time | ≤30 seconds |
Language | Chinese/English |
Accuracy | ≤±3%FS or ±10% |
Measure unit | PPM, mg/m3, % VOL μ Mol/mol |
Display | gas name, concentration unit, measured value, electrical quantity |
Alarm | sound, light, vibration alarm, and high and low alarm values can be set |
Battery | 3.6V dry battery (non rechargeable) |
Working hours | 2 years |
Explosion-proof grade | ExiaIICT4Ga |
Protection grade | IP66/IP68 |
Standards | GB 12358-2006, GB 3836.1-2010, GB 3836.4-2010, JJF1421-2013, JJF1363-2019, JJF1364-2012, JJG 365-2008, IEC 60079-0-2017, IEC |
Working temperature | -20ºC~+55ºC |
Humidity | 0~95%RH(no condensation) |
Environmental pressure | 86~106Kpa |
Size | 90 * 60 * 33mm (length * width * thickness) |
Weight | 125g |
