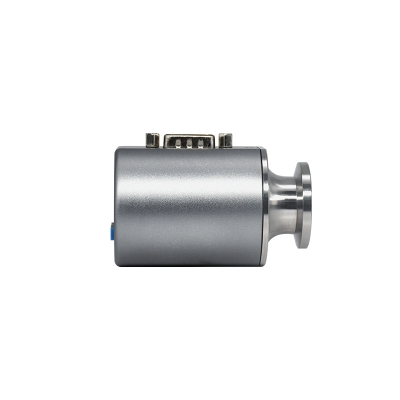

Pirani vacuum gauge with matching flange for measuring vacuum

  • Main Feature :
  • Serial No. : monica0210
Contact Us for QuotationEmail: mewoi008@mewoi.comWhatsapp:+8619928420370

Musktool-Pirani vacuum gauge with matching flange for measuring vacuum

Introduction

Based on the thermal conductivity principle, it is used for vacuum pressure measurement and provides analog voltage output. The product comes with a color screen display, keypad control, and contains a MEMS chip as well as signal processing circuits, featuring high precision, excellent stability, and good repeatability.

Technical Parameters

Supply voltageDC:9-24V
Measuring range (N2 and air) 5×10-2~1×105 Pa
Accuracy N2 (5×10-2~1×10-1 Pa)Tolerance is ±50% of reading
Accuracy N2 (1×10-1~1×104 Pa)Tolerance is ±15% of reading
Accuracy N2 (1×104~1×105 Pa)Tolerance is ±50% of reading
Repeatability accuracy N2 (1×10-1~1×104 Pa)Tolerance is ±2% of reading
Power consumption1.0W

Product Features

● High-precision vacuum measurement

● Long-term stable and reliable performance

● Easy and convenient installation

● Fast response for control applications

● TFT-LCD color display

● 0~10V analog signal output

Application Scenarios

Suitable for low and medium vacuum measurement scenarios, such as vacuum baking, vacuum packaging, vacuum coating, vacuum heat treatment, vacuum brazing, vacuum coating, metal smelting, semiconductor equipment and other industry fields.
