Musktool-P2500B oscilloscope probe X10500MHz

Musktool-P2500B oscilloscope probe X10500MHz

2025-08-11 17:21:38

Musktool-P2500B oscilloscope probe X10500MHz

Main Feature : Musktool-P2500B oscilloscope probe X10500MHz
Serial No. : Owen0308

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

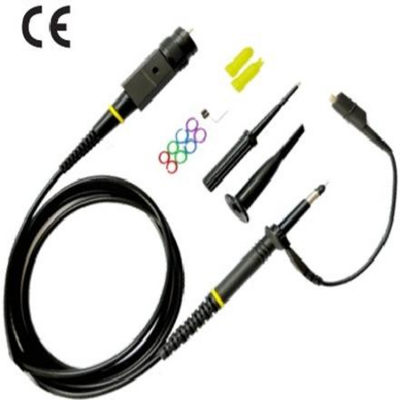

Musktool-P2500B oscilloscope probe X10500MHz

INTRODUCTION

In the field of high - frequency electronic measurement, the performance of an oscilloscope probe is a core factor determining the depth and accuracy of signal analysis. The P2500B oscilloscope probe X10 500MHz, with its professional positioning, has become a key tool for meeting the testing requirements of ultra - high - frequency signals. Its 500MHz wide - band coverage enables it to accurately capture subtle features such as signal transitions in high - speed digital circuits and high - frequency oscillations in RF modules, and easily handle complex scenarios ranging from high - speed bus transmission to microwave circuit debugging.

Technical Specification

Model	P2500B
Attenuation Ratio	10X
Bandwidth	500MHz
Rise time	0.7ns
Input Resistance	10MΩ±2%
Input Capacitance	10pF
Max.Input Voltage	10X:300V rms CATI
Compensation Range	8pF~25pF
Operation Temperature	-10℃~+55℃
Humidity	-40℃ or below≤90%+41℃ to+50℃≤60%
Alitude	Operating 3000m Nonoperating 15000m
Cable Length	130±2cm
Weight	About 70g
Safety	IEC61010-031

Lable: P2500B, oscilloscope, probe, X10500MHz
