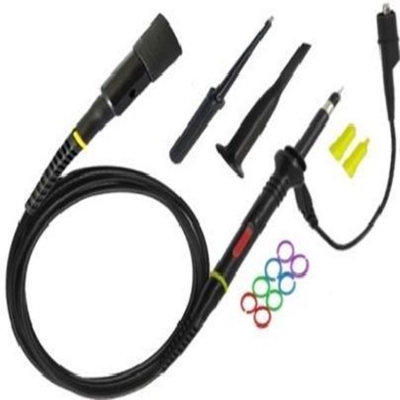

Musktool-P2000 series oscilloscope probe X1X1060-200MHz
INTRODUCTION
In the field of precision electronic measurement, the oscilloscope probe serves as a critical bridge connecting the measured signal and the measuring instrument, and its performance directly determines the accuracy and reliability of signal capture. The P2000 series oscilloscope probe X1X1060-200MHz is precisely a professional tool designed to meet high-end electronic testing needs — with its wide frequency band coverage of 60-200MHz, it can not only accurately capture subtle transitions in high-frequency digital signals but also stably acquire slow changes in low-frequency analog signals. |
Technical Specification
Model | P2060 | P2100 | P2150 | P2200 | |
Attenuation Ratio | 1×&10× | ||||
Input Resistance(MΩ) | 1× | 1 | |||
10× | 10 | ||||
Input Capacitance(pF) | 1× | 70-120 | |||
10× | 14-18 | 13-17 | |||
Compensation Range(pF) | 10× | 15-45 | 10-30 | ||
Bandwidth(MHz) | 1× | 6 | |||
10× | 60 | 100 | 150 | 200 | |
Risetime(ns) | 1× | ||||
10× | 5.8 | 3.5 | 2.3 | 1.75 | |
Working Voltage(VP-P) | 1× | 150 | |||
10× | 300 | ||||
Net Weight(g) | 55 | ||||
Cable Length(cm) | 110 | ||||
Operating Temp. (℃) | -10-+50 | ||||
Non-operating Temp. (°℃) | -20-+60 | ||||
Humidity | ≤85%RelativeHumidity | ||||
