Musktool-P5004 high voltage test rod P50041000MΩ0-28KV

Musktool-P5004 high voltage test rod P50041000MΩ0-28KV

2025-08-11 17:34:11

Musktool-P5004 high voltage test rod P50041000MΩ0-28KV

Main Feature : Musktool-P5004 high voltage test rod P50041000MΩ0-28KV
Serial No. : Owen0314

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

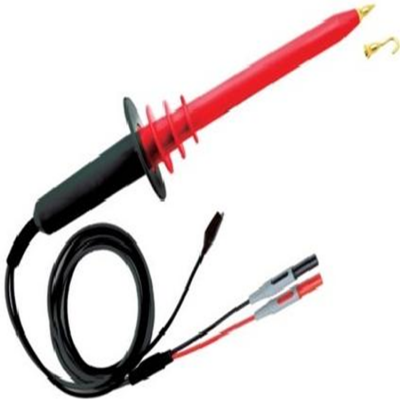

Musktool-P5004 high voltage test rod P50041000MΩ0-28KV

INTRODUCTION

In the field of insulation performance testing of high - voltage electrical equipment, the impedance characteristics and voltage withstand capacity of testing tools are the core prerequisites for ensuring testing accuracy and operational safety. The P5004 high - voltage test rod, with an ultra - high input impedance of 1000MΩ and a wide voltage measurement range of 0 - 28KV, has become a professional device for medium - and high - voltage insulation testing scenarios.

Technical Specification

Model	P5004
Input resistance	1000MΩ(±5%)
Maximum operating voltage	DC:0-28KV;AC:0-28KV(50/60H
Polarity	Both positive and negative voltages can be measured.
Temperature coefficient	≤200PPM/℃
Maximum load current	≤40μA(at40KV DC)
Maximum power consumption	≤1.6watt
Operating temperature range	0~+50℃
Storage temperature range	-20~+70℃
Length of the grounding wire	100cm
Length of the cable	100cm
weight	About 300g

Lable: P5004 high voltage test rod P50041000MΩ0-28KV
