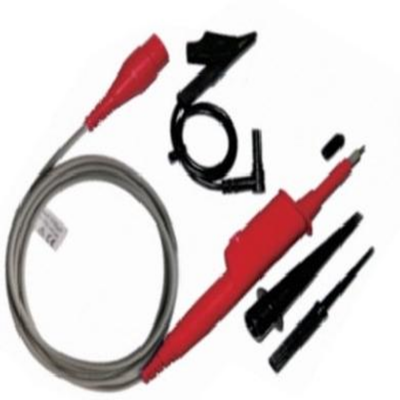

Musktool-P2301 series oscilloscope probes X1005KV 300-500MHz
INTRODUCTION
| In the extreme scenarios of high-voltage and high-frequency electronic measurements, the withstand voltage level and ultra-high-frequency response capabilities of the probe are the core elements to break through the testing bottleneck. The Xtester-P2301 series of oscilloscope probes, with an ultra-high withstand voltage of 5KV, a fixed attenuation ratio of X100, and a wide frequency band coverage of 300 - 500MHz, have become professional tools to meet the demanding high-voltage and high-frequency testing requirements. |
Technical Specification
Model | P2301C | P2501C |
Attenuation Ratio | ×100 | ×100 |
Input Resistance(MΩ2) | 100 | 100 |
lnput Capacitance(pF) | 6.5 | 6.5 |
Compensation Range(pF) | 10-20 | 10-25 |
Bandwidth(MHz) | 300 | 500 |
Risetime(ns) | 1.15 | 0.7 |
Working Voltage(KVP-P) | 5 | 5 |
Net Weight(g) | 77.5 | |
Cable Length(cm) | 130 | |
Operating Temp.℃) | 10-+50 | |
Non-operating Temp. (°℃) | -20- ·75 | |
Humidity | ≤85%Relative Humidity | |
