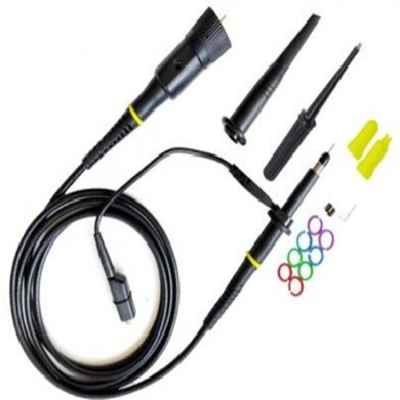

Musktool-P2000B series oscilloscope probe X10100-300MHz
INTRODUCTION
| In modern electronic measurement technology, the bandwidth coverage and signal processing capabilities of oscilloscope probes are the keys to unlocking the signal characteristics of complex circuits. The X10100 - 300MHz oscilloscope probe of the P2000B series, with its precise performance positioning, has become an ideal choice for cross - frequency - band signal testing. Its wide - band coverage from 100 - 300MHz enables it to not only capture the signal edge transitions of high - speed digital circuits but also stably collect the medium - high - frequency oscillations of RF modules, easily adapting to diverse testing scenarios ranging from industrial control buses to the front - ends of communication devices. |
Technical Specification
Model | P2100B | P2200B | P2300B |
Attenuation Ratio | 10× | ||
Input Resistance(MQ) | 10 | ||
Input Capacitance(pF) | 13.5 | 13.5 | 12 |
Compensation Range(pF) | 15-45 | 10-30 | |
Bandwidth(MHz) | 100 | 200 | 300 |
Risetime(ns) | 3.5 | 1.75 | 1.15 |
Working Voltage(b.p) | 300 | ||
Net Weight(g) | 55 | ||
Cable Length(cm) | 130 | ||
Operating Temp. (°℃) | -10-+50 | ||
Non-operating Temp. (℃) | -20-+60 | ||
Humidity | ≤85%Relative Humidity | ||
