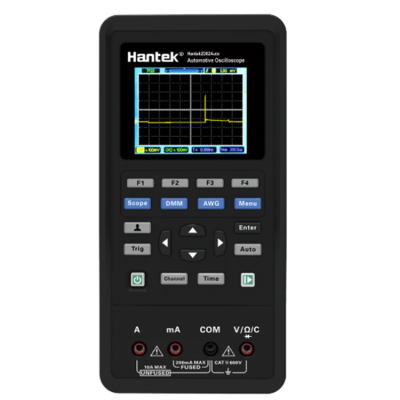

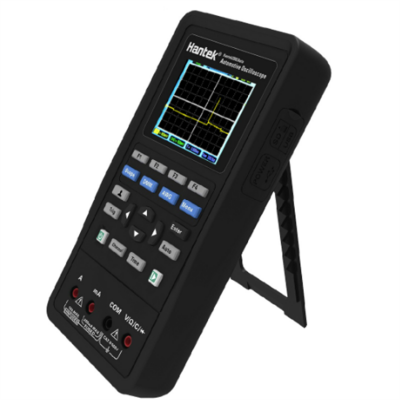

Musktool-oscilloscope Hantek2D82AUTO

Main Feature :
Serial No. : monica1032

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-oscilloscope Hantek2D82AUTO

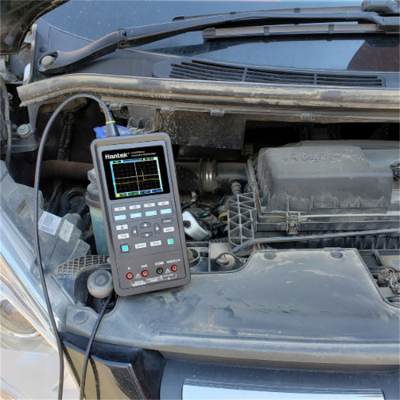

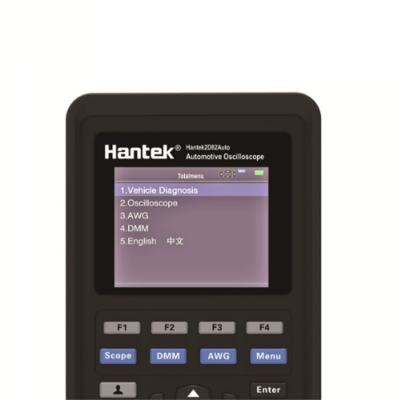

With more than 80 kinds of car testing, and scan the QR code on the back of device can open video help files to show you how to test vehicles.

Sensors: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position.
Ignition: Primary/Secondary.
Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
Oscilloscope: 2 channels oscilloscope, 80MHz bandwidth, 250M sampling rate.
Bus Detection: CAN bus data observation, CAN bus signal integrity, CAN bus LH long-term acquisition, LIN bus.
Actuator: Gasoline / Diesel.
Start & Charge: Charging circuit, current and voltage.
First test projects: intake manifold vacuum degree & ignition, lampblack adjustment valve vacuum degree & ignition, exhaust ignition (idle), exhaust ignition (start).

Primary ignition voltage and crankshaft sensor test

Charging circuit current and voltage test

Primary ignition and secondary ignition test

Primary ignition current test

Secondary ignition test

Cylinder relative pressure test

Lable: oscilloscope
