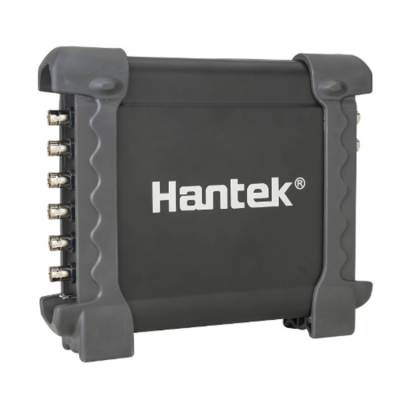

Musktool-oscilloscope Hantek1008C

Features：

Function Selection

     There are three functions of vehicle diagnosis, oscilloscope and signal generator, including 78 types of vehicle diagnosis function.

 One Button Screenshot

     Save the current waveform and generate pictures. Storage location is optional and easy to find.

 Quick Guide

     Callout the quick guide column with one button. There are special vedio guide for each vehicle diagnosis function, including wiring method, adjustment method, reference waveform etc. And it is supported to be checked through scanning the QR code.

 Reference Waveform

    Over 80 types of standard reference waveform inside and can be callout or close with one button. It is convenient to be compared.

 Measurement Method

     20 types of automatic measurement method which can be callout or close with one button. It is convenient and visual to read out the result.

 Print

     The result can be printed with one button and generate diagnosis report which is easy to be saved and recorded.

 REF Comparison Waveform

     The user can save the waveform as REF format and callout it again when you need to compare the two waveforms catched in different time.

 Data Storage

     The diagnosis result can be saved as the format of txt, csv, rfc, xls, doc, jpg and etc. It is convenient to be checked and compared later.

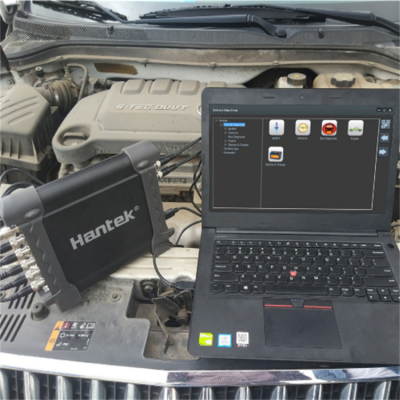

 8CH Vehicle Diagnosis

     8CH signal can be measured simultaneously. The measurement voltage of each channel can be adjusted independently. You can choose to open or close each channel.

 Waveform Record

     Support to record and replay the waveform. The waveform can be save into the computer hard disk and easy to read. There is no limit to the record time which can long-time measure and record the waveform for troubleshooting.

 Multilanguage Support

     Support the display surface in Chinese, English, German language, and it can be switched freely.

 Cursor Measurement

      Support 4 types of cursor measurement mode -cross,track, horizontal, and vertical.It's easy to read out the time and voltage of irregular signal.

 Color and Lightness

     The background color is optional as user's preference. And the lightness of waveform and gridding is settable.

 Easy to Install Software

     Install the PC software and start to use without any other drivers. Support WIN XP/7/8/10.

 USB Communication

     USB2.0 power supply + communication interface, plug and play, and support hot plugging.

 Signal Generator

     Signal generator function, can simulate crankshaft and camshaft signal.

Vehicle Diagnosis	Vehicle Diagnostic Function	Ignition	Primary Ignition (Voltage)
			Primary Ignition（current）
			Primary Ignition（Voltage& Current）
			Primary Ignition (Crankshaft Senser)
			Primary Ignition&SecondaryIgnition
		Secondary	Secondary Ignition Distributor Type (Plug Lead)
			Secondary Ignition Distributor Type (King Lead)
			Secondary DIS (Positive-fired)
			Secondary DIS or CPC (Negative-fired)）
			Secondary Coil Output Diagnosis
			Secondary Ignition&Primary Ignition
	Sensors	Air Flow Meter	Air Flow Meter (Hot Wire)
			Air Flow Meter (Air Vane)
			Air FlowSensor (BOSCH Diesel)
			Air Intake PressureSensor (BOSCH Diesel)
		Camshaft	Camshaft (Inductive)
			Camshaft (AC Excited)
			Camshaft (Hall Effect)
			Camshaft (BOSCH Common Rail Diesel)
		Crankshaft	Crankshaft Inductive Running
			Crankshaft Inductive Cranking
			Crankshaft Hall Effect
			Crankshaft Sensor &Primary Ignition
		Distributor	Distributor Pick-up (Hall Effect)
			Distributor Inductive Pick-up Cranking
			Distributor Inductive Pick-up Running
		Lambda Sensors	Lambda Sensor Titania
			Lambda Sensor Zirconia
			Lambda Sensor Zirconia Pre & Post cat
		Throttle Position	Throttle Position Potentiometer
			Throttle Position Switch
			Throttle Pedal Switch (Bosch Diesel)
			ABS Digital Speed Sensor
			ABS Analog Speed Sensor
			Coolant Temperature (5V)
			Coolant Temperature (GM/Vauxhall Simtec
			Crash Sensor
			MAP Analog
			MAP Digital
			Hall Effect Road Speed Sensor
			Accelerator Pedal (Bosch Diesel)
	Bus Diagnosis	CAN Bus	CAN Bus Data View
			CAN Bus Signal Integrity
			CAN Bus LH Long Capture
		LIN Bus	LIN Bus
	Engine	Petrol	Single-point Injector (Voltage)
			Single-point Injector (Current)
			Multi-point Injector (Voltage)
			Multi-point Injector (Current)
			Injector Voltage & Current
			Injector Current & Primary Ignition
		Diesel	Common Rail Diesel (Current)
			Injector Bosch CDi 3 (Current)
			Injector Bosch Diesel (Idling)
			Injector Bosch Diesel (Accelerating)
			Diesel Glow Plugs
			Electronic Fuel Pump
			Carbon Canister Solenoid Valve
			ERG Recirculation Solenoid Valve
			Stepper Motor Example 1
			Stepper Motor Example 2
			Idle Speed Control Valve (Rotary)
			Idle Speed Control Valve (Electromagmetic)
			Throttle Servomotor (Idling)
Throttle Servomotor (Accelerating)
Bosch CDi3 Quantity Control Valve
Bosch CDi3 Pressure Regulator Valve
Variable-Speed Cooling Fan On
Variable-Speed Cooling Fan Off
Variable Camshaft Valve Timing
Startup & Charge	Charging Circuits	Charging Circuits Current/Voltage
		Charging Circuits Current/Voltage Starting 24V
		Charging Circuits Current/Voltage Idling 24V
		Charging Circuits Alternator AC Ripple/Diode Diagnosis
		Relative Compression Petrol
		Relative Compression Diesel
		Starting Voltage Drop
General Oscilloscope	Model	Hantek1008C
	Analog Channel	8
	Input Impedance	Resistance: 1MΩ
	Input Sensitivity	10mV/div to 5V/div
	Input Coupling	DC
	Resolution	12 bits
	Memory Depth	4K
	Max. Input	400V (DC+AC Peak)
	Real-Time Sampling Rate	2.4MSa/s
	Time BaseRange	1ns/div to 20000s/div(1-2-5sequences)
	Time Base Precision	±50ppm
	Trigger Source	CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
	Trigger Mode	Edge
	X-Axis Input	CH1
	Y-Axis Input	CH2
	Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
	Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
	Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
	Waveform Signal Process	+,- , x,÷, FFT, Invert
	Voltage Range	10mV to 5V/div @ x 1 probe
		100mV to 50V/div @ x 10 probe
		10V to 5000V/div @ x 1000 probe
		100V to 50000V/div @ x 10000 probe
		200mV to 100V/div @ 20:1
	Current Range	100mA to50.0A/div @ CC65(20A)
		1000mA to500.0A/div @ CC65(65A)
		1A to100.0A/div @ CC650(60A)
		1A to200.0A/div @CC1100(100A)
		10A to2000.0A/div @CC1100(1100A)
	FFT	Rectangular, Hanning, Hamming, Blackman Window
	Math	Addition, subtraction, multiplication, division
	Interface	USB 2.0(Full Speed)
	Power	No need extra power supply
	Size	190 x 167 x 35 (mm)
	Weight	0.63kg
	High pressure ignition probe	1
Programmablesignal generator	Channel	8CH
	Output Level	LVTTL
	Frequency Range	0-250kHz
