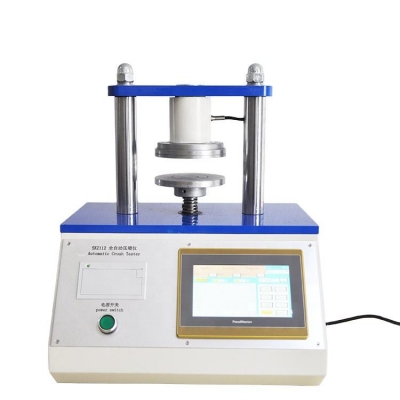

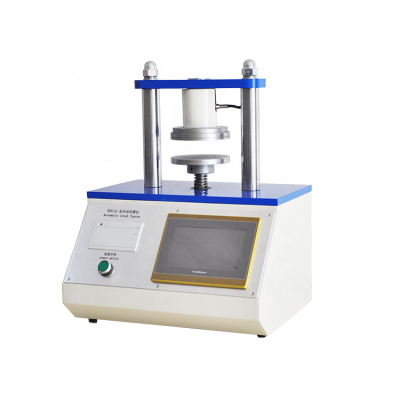

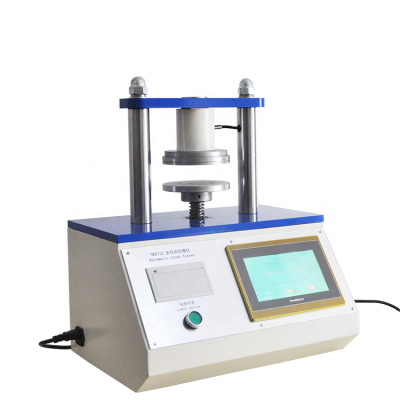

Musktool- lab crush tester machine for RCT ECT FCT CMT testing
Crush Tester is used to do the Ring Crush test, Edge Crush Test, Flat Press Test, Adhesive Strength Test, and Paper Tube Compress Test. We also have the accessories for its each test. |
Standards:
ISO 3070, ISO 12192-2011, ISO 7263-2011, ISO 3035-2011 |
Feature:
1. Microprocessor control, automatically carry the test according to testing requests. 2. Protect press sensor through the protection switch for over- loading. 3. Analyzing the group of testing data and to show the maximum, minimum, average, 4. Standard deviation and coefficient of variation displayed by color touch screen, print out the data. |
Technical parameter:
Press measuring range | 0-5KN |
Resolution | 1N |
Accuracy | ±1% |
Speed | 12.5±2.5mm/min |
Platen distance from top to bottom | 0-78mm (customized) |
Printer | mini-type printer |
Power | AC220V 50Hz 1A |
Working condition | Temperature: 0-40℃, relative humidity <85% |
Dimension | 345mm×300mm×505mm |
Weight | 75kg |
