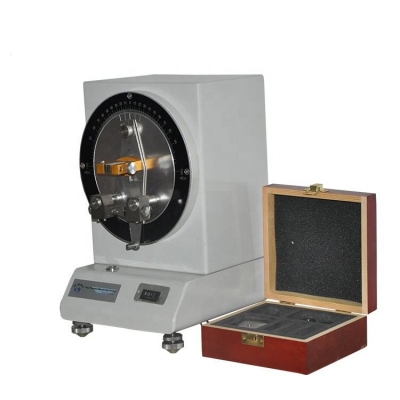

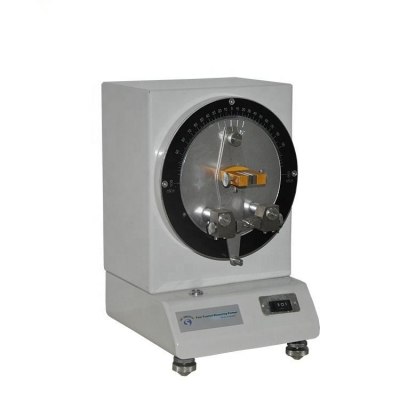

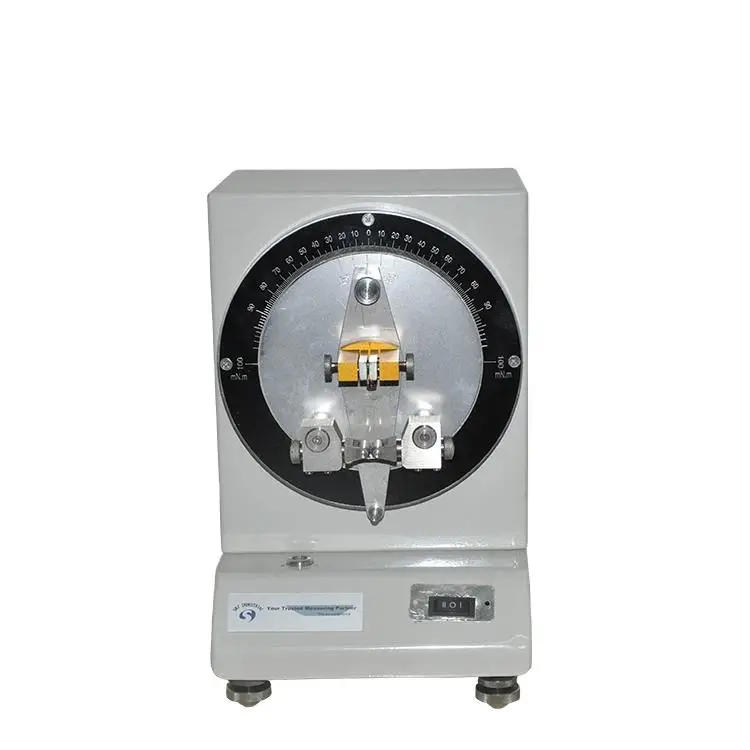

SKZ105 cardboard taber board bending stiffness tester and bending stiffness testing equipment

Main Feature :
Serial No. : Zoe184

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool- cardboard taber board bending stiffness tester and bending stiffness testing equipment

The tester is used to evaluate the stiffness and resiliency of cardboard by international Taber method.

Standard:

ISO2493-1992, ASTM D 5342 and GB2679.3 (The testing method of carton stiffness)

Technical parameters:

Testing Range	1-500 mN.m
Value Accuracy	±2%
Value Repeating error	≤2%
Length Of Swing Arm	100mm
Length Of loading Arm	50mm±0.1mm
Speed	200/min
Additional bending angles	±7.5°and 15°
Dimension of specimen (L×W)	70mm×38mm
Dimension of shape (L×W×H)	270mm×165mm×355mm
Weight	19kg
