Musktool- Waterproof 200m 360 degree view deep well camera with manual focus
| This waterproof deep well camera is capable of capturing a 360-degree view and can withstand depths of up to 200m. With manual focus controls, it provides clear and detailed images of underwater environments for inspection and exploration purposes. |
Delivery Way: DHL,UPS ,Fedex express, by sea, by air Gross Weight: 50.0kg for 200m cable Package: Carton box . 2 ctns /set. Box 1:42x49x22cm Box2:75x44x60cm Production Time: 5 days for sample. Less 10pcs, 7 days Applications: Deep wells, borehole ,water wells Power Supply: 8800mA Li-ion rechargeable battery Cable Reel: 100m to 200m soft cable with manual reel Camera Size: Ø45mm x 455mm Screen Size: 13 inch HD IPS LCD Screen Model No.: V13-BCS |
Product Detail
| The waterproof 200m 360 degree view deep well camera with manual focus is a high-tech device designed for underwater exploration in deep well environments. With its ability to withstand water pressure up to 200m, the camera provides a clear and detailed 360-degree view, allowing users to capture stunning visuals of underwater landscapes. Its manual focus feature enables users to adjust the focus according to their specific requirements, making it ideal for professional underwater photographers, marine biologists, and deep-sea explorers. |
Overview of 45mm Dual view (side/down) Sewer Camera
Dia.45mm dual view(side/down) rotation camera head |
Pan 360° rotation, Wateproof 20bars, 1/3 CMOS,1.3MP pixel HD camera sensor |
Adjustable focus function for side camera |
13 inch IPS icd screen,1280*720 resolution |
DVR control box with audio ,video recording and photography function |
USB wireless keyboard to typewrite the words |
Built in 8800mA li-ion battery inside |
Digital meter counter function, error is less than 1% |

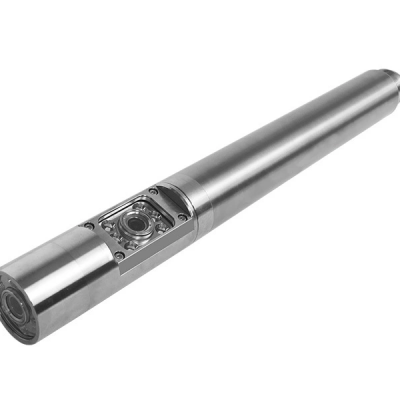

Main Part 1: 45mm Dual view (side/down) camera head
Camera size | 45mm x 506mm |
Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
Waterproof level | Waterproof IP68, waterproof 50bars (underwater 500m) |
Camera range | View range 120° |
Focusing | Manual focus fpr side camera |
Rotation range | Rotation: Pan 360°, Tilt 180° |
Light | 6pcs high light LED lighting adjustable (side & down camera) |
Connector | Detachable with pins type connection to Cable Reel |
Material | Lens window sapphire glass & stainless steel |

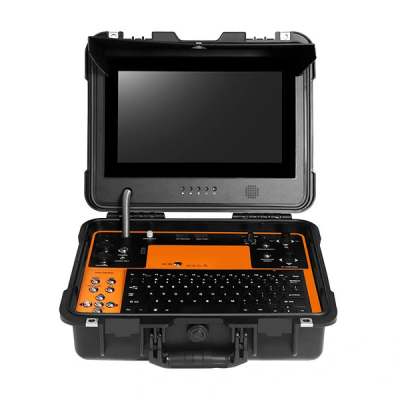

Main Part 2: DVR control unit
Screen Size | 13"HD IPS LCD Screen, 1280X720 resolution |
Waterproof level | Waterproof keys & waterproof panel |
Function | Video, auido and photography function DVR |
Keyboard | USB wireless Keyboard real time typewriting |
Meter counter | Digital meter counter function, display on the screen |
Battery | 8800mA rechargeable Li-ion Battery Pack |
Battery level indicator | |
Joystick | Joystick for camera rotation and focus manually |

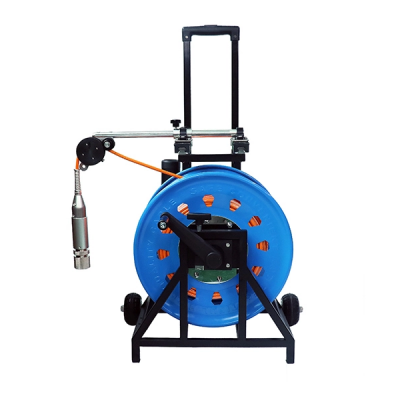

Main Part 3: Cable reel
Meter counter | Digital meter counter |
Material | Oxygen free copper flexible cable |
Cable diameter | 8mm |
Cable length | 200m |
Reel size | 50 x 55 x 70 cm |
Applications
Detect and identify pipe damage: Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline. Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection: Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes. Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines |
