Musktool- V13-BCSA 45mm AHD 300m to 500m Deep Well Inspection Camera with electrical winch function
| The 45mm AHD 300m to 500m Deep Well Inspection Camera with electrical winch function is a versatile and durable tool designed for inspecting and monitoring wells at depths ranging from 300m to 500m. With its electrical winch function, it allows for easy maneuvering and positioning of the camera to capture high-quality images and videos for comprehensive well inspections. |
Delivery Way: DHL,UPS ,Fedex express, by sea, by air Gross Weight: 150.0kg for 300m cable Package: Wooden box . 1pcs/box. Box size:90x94x85cm Production Time: 10 days for sample. Less 10pcs, 15 days Applications: Deep wells, borehole ,water wells Screen Size: 13 inch HD IPS LCD Screen Power Supply: 7000mA Li-ion rechargeable battery,AC110V to 240V for electrical winch Cable Reel: 200m to 500m electrical winch Camera Size: Ø45mm x 455mm Model No.: V13-BCSA |
Product Detail
| The 45mm AHD 300m to 500m Deep Well Inspection Camera with electrical winch function is a powerful tool designed for inspecting deep wells and boreholes. It features a high-definition camera that can withstand water pressure up to 500m deep, and an electrical winch for easy deployment and retrieval. This versatile tool can be used for conducting inspections in water wells, oil wells, and geothermal boreholes, making it essential for professionals in the drilling and water management industries. |
Overview of 45mm Dual view (side/down) Sewer Camera
Dia.45mm dual view(side/down), rotation camera head |
Pan 360° rotation, Wateproof 50bars, 1/3 CMOS,1.3MP pixel HD camera sensor |
Adjustable focus function for side camera |
13 inch IPS icd screen,1280*720 resolution |
DVR control box with audio ,video recording and photography function |
USB wireless keyboard to typewrite the words |
Built in 7000mA li-ion battery inside |
Digital meter counter function, error is less than 1% |
Main Part 1: 45mm Dual view (side/down) camera head
Camera size | 45mm x 506mm |
Camera pixel | Sensor 1/3" CMOS, 1.3MP pixel |
Waterproof level | Waterproof IP68, waterproof 50bars (underwater 500m) |
Camera range | View range 120° |
Focusing | Manual focus for side camera |
Rotation range | Rotation: Pan 360°, Tilt 180° |
Light | 6pcs high light LED lighting adjustable (side & down camera) |
Connector | Detachable with pins type connection to Cable Reel |
Material | Lens window sapphire glass & stainless steel |

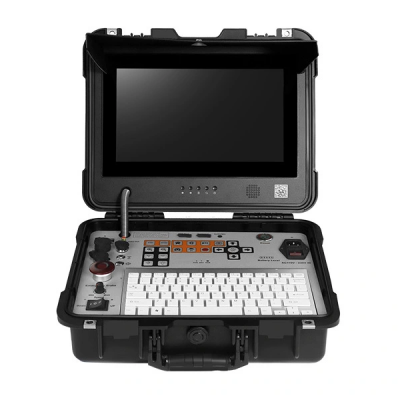

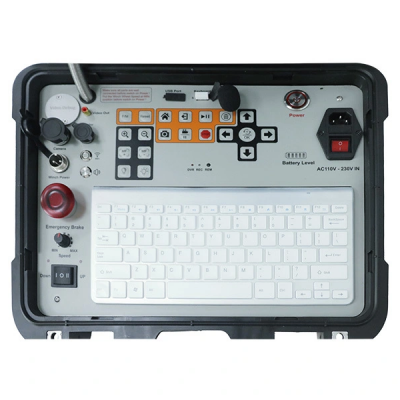

Main Part 2: DVR control unit
Screen Size | 13"HD IPS LCD Screen, 1280X720 resolution |
Waterproof level | Waterproof keys & waterproof panel |
Function | Video, auido and photography function DVR |
Keyboard | USB wireless Keyboard real time typewriting |
Meter counter | Digital meter counter function, display on the screen |
Battery | 7000mA rechargeable Li-ion Battery Pack |
Battery level indicator | |
Joystick | Joystick for camera rotation and focus manually |
Button Function | Manual Focus adjtable keys (MF+/MF-) |
Digital Zoom in/out keys | |
Video input option: Borehole Camera | |
Winch operating knob(adjusting speed, cable up and down, brake) | |
Camera rotation control button | |
On-screen | depth encoder, temperature and direction |
AC110V-230V input port | AC power supply for electrical winch working |
| Using intelligent terminals as display and recording device |
Transmitter distance 30m | |
Through WIFI wireless transmit video to Android, Apply OS or MID terminal |

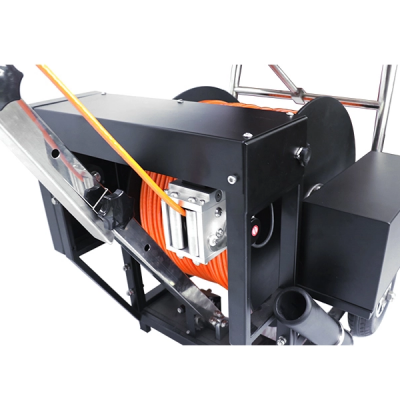

Main Part 3: Electrial Winch Cable reel
Winding speed | 0~20m / min (speed adjustable) |
Power supply | AC 110V to AC230V |
Meter counter | Digital depth meter counter |
Material | Kevlar cable |
Cable diameter | 8mm |
Cable length | 100m-500m option |
Reel size | 65 x 130 x 90 cm |
Applications
Detect and identify pipe damage: Detect leaks and blockages in the water supply pipeline system to ensure the normal operation of the work within the pipeline. Evaluate the aging, damage, internal blockage, corrosion damage, etc. of the pipeline to provide a basis for repair and replacement.
Underground pipeline detection: Used to locate the direction and depth of underground cables and metal pipes, and accurately measure the depth of pipes. Assess the damage to the anti-corrosion layer outside the pipeline, locate the damage points, and provide a basis for the construction quality acceptance of the anti-corrosion layer of newly laid pipelines |
