Introduction
Musktool-JT2022 is a hand-held portable WBGT index instrument. The professional industrial designstructure and appearance ensure the overall high quality of the product. The sensor can bedisassembled independently. The 50mm diameter copper Globe is used to further improvethe overall portable performance of the instrument. The sensor connection uses aviationconnector,which is firm and stable and not easy to shake. The instrument screen uses LEDdisplay with backlight, humanized interface and easy to read. It can display wbgtin, wbgtoutvalues,Ta, Tg, Tnw, RH and WBGT measurement curves.
|
Features
50mm Globe diameter, handheld host, easy to carry The built-in humidity sensor displays the relative humidity atthe same time Real time measurement curve display, intuitiveview of WBGT change trend Built in high-capacity SD-card,which can record massive measurement data Built in lithiumbattery with standby time up to 9 days (screen off |
Technical specifications
| Air temperature sensor | Measuring range: 0~120℃ Accuracy: 0.5℃ (0.3℃@10℃~40℃) Resolution: 0.1℃ |
| Black bulb temperature sensor | Measuring range: 0~120℃ Accuracy: 0.5℃ (0.3℃@10℃~40℃) Resolution: 0.1℃ |
| Wet bulb temperature sensor | Measuring range: 0~120℃ Accuracy: 0.5℃ (0.3℃@10℃~40℃) Resolution: 0.1℃ |
| Relative humidity sensor | 15~95%RH Accuracy: ±3% of reading |
| Instrument storage | SD memory card |

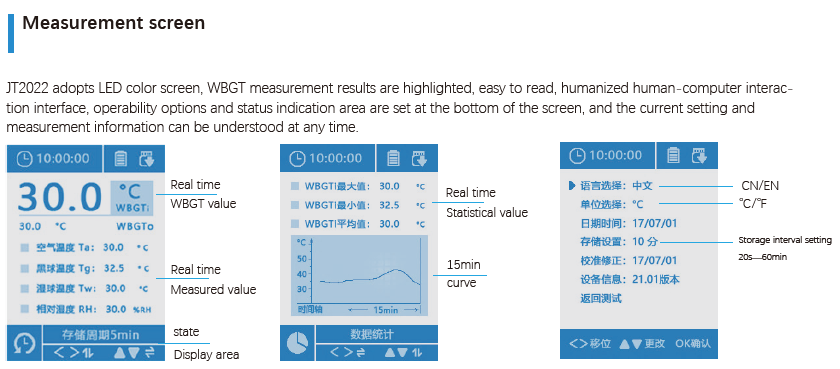

screen | 3.5-inch LCD display, which can display measurement values and measurement curves |
| Storage interval | Adjustable from 20 seconds to 60 minutes |
| Executive standard | GB/T4200-2008 GBZ/T229.3—2010 GB/T17244—1998 |
| Diameter of black ball (mm) | 50mm |
Power supply/battery | Built-in lithium battery, standby time of 9 days |
Appearance size (mm) | 175X92X38mm |
Weight (g) | About 350g (main unit) |
Data transfer interface | micro USB |
software | JTSOFT-MT |
Language | Chinese/English |
