Musktool-Pro–Model 1590Mutil-channel Anemometer
Musktool-Pro–Model 1590Mutil-channel Anemometer
Musktool-Pro–Model 1590Mutil-channel Anemometer
Musktool-Pro–Model 1590Mutil-channel Anemometer
Musktool-Pro–Model 1590Mutil-channel Anemometer
Musktool-Pro–Model 1590Mutil-channel Anemometer

Musktool-Pro–Model 1590Mutil-channel Anemometer

2023-07-07 08:27:55

Flexible instrumentation that allows you to customize number of channels, measurement items, and sensor shape to your purpose.

  • Main Feature :
  • Serial No. :
Contact Us for QuotationEmail:464560351@qq.comWhatsapp: +8618620373879

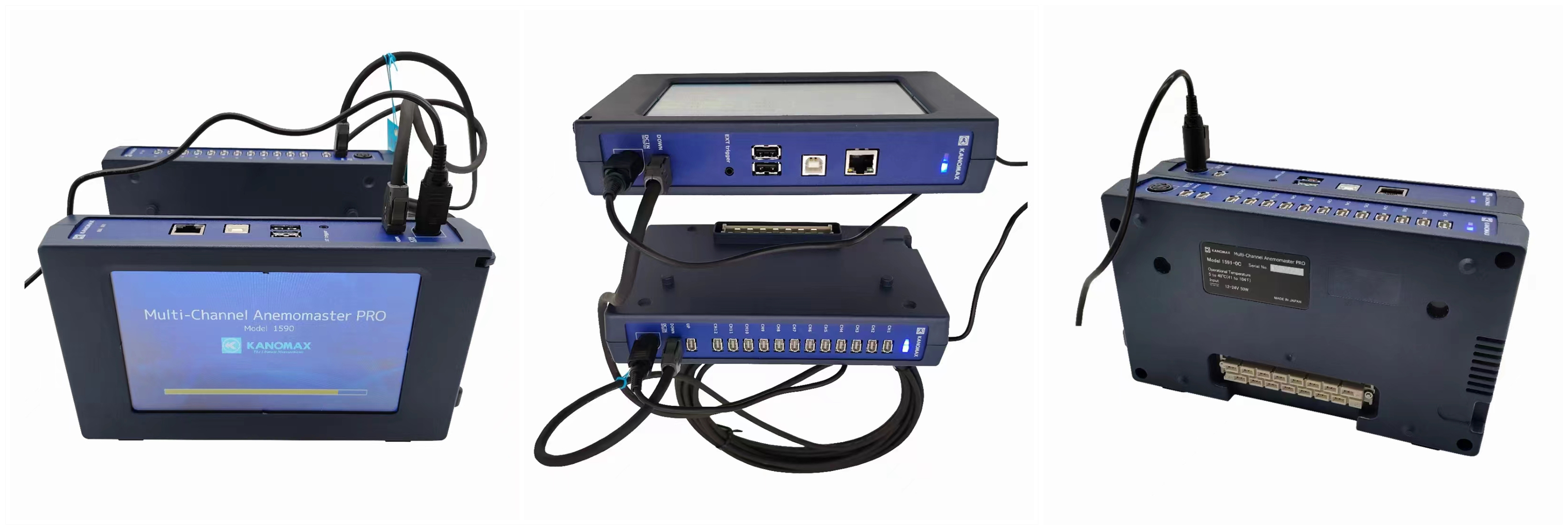

图片关键词

Features

  • 15 types of compatible probes for various applications

  • The smallest class probes in the industry

  • High heat resistance enables precise measurement even in tough environments

  • Large-scale system configuration with up to 144 channels available

  • Easily measure in large-scale spaces

  • Highly portable main body makes it easy to use in vehicles

  • Improved probe response and accuracy, micro air velocity limit of 0.01 m/s

  • Support analog output via optional Analog Unit - Model 1592-00

  • Windows measurement software simultaneously measures air velocity, temperature, and humidity via the real-time graph display. Measurement data is saved in text format and can be easily imported into table measurement software such as Excel

Aplications

  • Thermal management of automobile electronic control unit (ECU)

  • Electronic component heat evaluation

  • Indoor airflow management for semiconductor manufacturing equipment

  • Data center thermal managemen

Main Unit Specifications


ProductMulti-Channel Anemomaster PRO Main Unit
Model1590-00
Display, Operation7-inch color LCD with touch panel
Communication FunctionDataUSB Type-A: For USB memory
Remote MeasurementModbus (Ethernet, USB Serial)
Between UnitsRS485 (Standard cable)
Recording MediaMediumBuilt-in memory
FormatCSV format
Recording Capacity8GB (One hub unit can measure 1000 sampling times, about 24500 times).
External Trigger InputPin jack terminal Φ2.5 audio jack (Edge detection at start)
LanguageJapanese, English, Chinese
Power SupplyDC12 to 24V (Select either one of 3 options below)

1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable
Power ConsumptionUp to 50W
Operating Environment5~40℃, 0~85% RH (No Condensation)
Storage Environment-10~60℃, 0~90% RH
(No Condensation)
DimensionsW220mm × D130mm × H40mm
Weight0.6 kg
Standard AccessoriesAC Adapter (90W), Software (CD), Operation manual, USB cable, Rubber cap
Warranty1 year


Hub Unit Specifications


ProductMulti-Channel Anemomaster HUB Unit
Model1591-00
Number of Channels12ch
Communication FunctionBetween ProbesSerial communication (standard cable)
Between ProbesSerial communication (standard cable, connector)
Between ProbesRS485 (Standard cable)
Power SupplyDC12 ~ 24V
Power ConsumptionPower supply conforms to the main unit
DimensionsW220mm × D130mm × H40mm
Weight0.5 kg
Standard AccessoriesSetup guide, Connecting clips (2pcs)
Warranty1 year


Analog Unit Specifications


ProductAnalog Unit
Model1592-00
Number of Channels12
Communication FunctionBetween unitsSerial communication {connector}
Analog OutputVoltage outputRange0 ~ 5 V
Output resistance1 kΩ
Current outputRange4 ~20 mA
Load resistance250 Ω
Power SupplyDC12 to 24V (Select either one of 3 options below)

1) Connection with other unit, 2) AC adaptor (90W), 3) DC power cable
Power Consumption10W
Operating Environment5~40℃, 0~85% RH (No Condensation)
Storage Environment-10~60℃, 0~90% RH (No Condensation)
SizeW220mm × D130mm × H40mm
Weight0.5kg
Standard AccessoriesSetup guide, Connecting clips (2pcs), Rubber cap (2pcs), Terminal block (3pcs)
Warranty1 year

Model Number

Model NumberMeasurement TargetDirectivityAir VelocityWind TemperatureHumidityOperating
Temperature
Temperature
Compensation
Sensor



Measurement RangeMeasurement AccuracyResponsivityMeasurement RangeMeasurement AccuracyMeasurement RangeMeasurement Accuracy

0972-00
0973-00
Wind
Speed
Yes0.01~50.0m/sThe larger of ± 2% or
± 0.02 m/s of the displayed
value
1 Second0-100℃± 5% of
displayed
value
at 0-100 ℃
0975-00No0.01~25.0m/s3 Seconds
0975-09
0975-10
0.01~50.0m/s
± 5% of
displayed
value at 0-120 ℃
0976-03
0976-04
0976-07
0.01~30.0m/sThe larger of ± 3% or
± 0.02 m / s of the displayed
value
0-120℃
0976-13
0976-14
0976-17
The larger of ± 2% or
± 0.02 m/s of the displayed
value
0-100℃± 5% of
displayed
value
at 0-100 ℃
0976-05Air Velocity and TemperatureThe larger of ± 3% or ± 0.02 m/s
of the displayed value
0~120℃±0.5%0-120℃± 5% of displayed
value at 0-120 ℃
0976-150~100℃0-100℃± 5% of
displayed
value
at 0-100 ℃
0975-21The larger of ± 2% or
± 0.02 m/s of the displayed
value
0975-31Air
Velocity,
Temperature
and
Humidity
0.01~25.0m/s0~60℃
