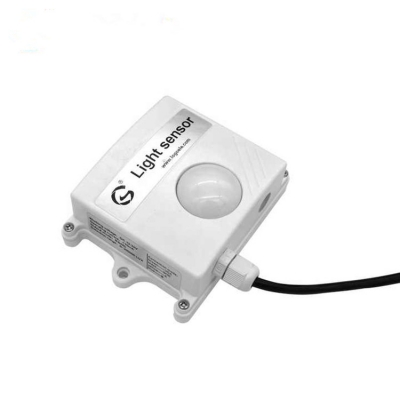

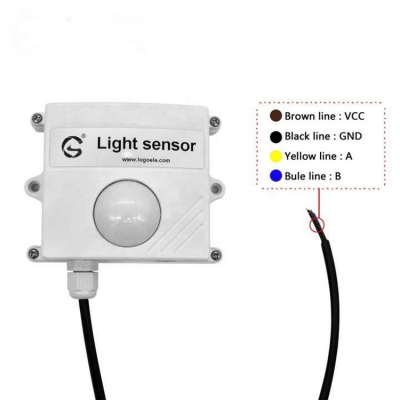

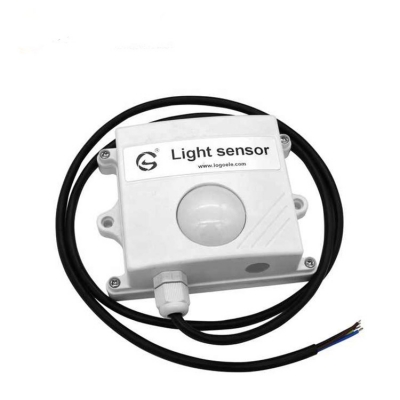

Musktool-Modbus 485 Illuminance Lux Detection Module Ambient Light Sensor With RS485

Main Feature : Musktool-Modbus 485 Illuminance Lux Detection Module Ambient Light Sensor With RS485
Serial No. : Owen0083

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Modbus 485 Illuminance Lux Detection Module Ambient Light Sensor With RS485

Products:

temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc.

Product Description

Product number	Power supply	Measurement range	Output signal
LD058A	12V/24V DC	0-65535 lux	0-5V
LD058B	12V/24V DC	0-65535 lux	0-10V
LD058C	12V/24V DC	0-65535 lux	4-20mA
LD058D	12V/24V DC	0-65535 lux	RS485
LD058E	12V/24V DC	0-20W lux	0-5V
LD058F	12V/24V DC	0-20W lux	0-10V
LD058G	12V/24V DC	0-20W lux	4-20mA
LD058H	12V/24V DC	0-20W lux	RS485

Product name	illuminance sensor
Working voltage	12V/24V DC
Working current	<20mA
Working temperature	0-60℃
Working humidity	≤90%RH
Detection range	0-65535 lux / 0-200000 lux
Accuracy	±5%
Output signal	RS485 / 0-5V / 0-10V / 4-20mA

Lable: Musktool-Modbus 485 Illuminance Lux Detection Module Ambient Light Sensor With RS485
