Musktool-Price 5VDC analog output 0-3V 0-3.3V 0-5v temp cheap temperature humidity sensor
Products:
| temperature and humidity sensor, gas sensor, water quality sensor, liquid level sensor, dust sensor, illuminance sensor, ultrasonic sensor, laser sensor, infrared sensor, current sensor, relay module, development board, communication module, electronic module, power module , other accessories, etc. |
Product Description
| Product name | temperature humidity sensor |
| Working voltage | C5VD |
| Working current | 5mA Max (2mA avg) |
| Storage temperature | - 20 ~ 70 ℃ |
| Storage humidity | ≤95%RH |
| Detection substance | Temperature and humidity |
| Temperature range | -20~80℃ |
| Humidity range | 0-100%RH |
| Output signal | 0-5V linear analog output |
| Temperature accuracy | ±0.5℃ |
| Humidity accuracy | ±5%RH |

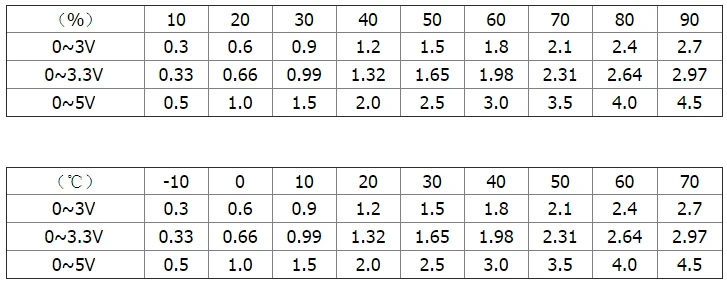

General output mode of analog quantity :(when rated voltage is 5V)
Applications: instrumentation, electrical and electrical equipment, air conditioning equipment, dehumidification equipment, storage, meteorology and industrial automation.
Matters needing attention:
1. Do not disassemble the plastic case of the wet-sensitive resistor to directly contact the wet-sensitive resistor;
2. Avoid long-term exposure of the sensor to condensation, corrosive gases and oxidizing gases, such as sulfur dioxide and hydrochloric acid.
