Musktool-6501 Series-Climomaster anemometer

2023-07-07 08:25:37

The most accurate handheld hot-wire anemometer of its kind

Email：464560351@qq.com

Whatsapp: +8618620373879

Features

Its sleek, ergonomic design with anti-slip grip comes standard with a highly visible backlit display making it the handheld choice of Journeymen technicians in the field.
Stores up to 20,000 data points which is easily downloaded to your company computer for analysis via the USB interface.
The optional software allows the users to view real-time data graphically formatted on their company computer
For your convenience the anemometer keeps track of its own calibration cycle and reminds you when it is due for calibration*.
The Climomaster 6501-CE measures pressure and features an analog output.
Equipped with an automatic atmospheric pressure compensation function.

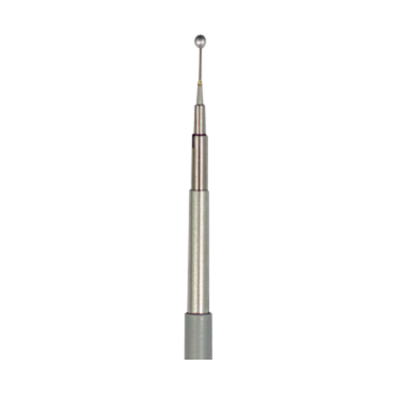

When the direction of the airflow is known, choose a unidirectional probe.
When the direction of the airflow is unknown or turbulent, choose an omnidirectional probe

Model Comparison

Climomaster Main Unit Specifications

Differential Pressure
Range	-5 to 5 kPa
Resolution	0.01 kPa
Accuracy	±3% of READING or ±0.01 kPa whichever is greater
General Specifications
Analog Output	DC 0 to 1 V
Interface	USB / Printer
Datalogging	Stores up to 20000 measurement data
Power Supply	6 × AA Batteries or AC Adapter (AC 100 to 240 V , 50/60 Hz)
Weight	0.9 lbs (400 g)
Operating Environment	41 to 104°F (5 to 40°C) with no condensation
Storage Environment	14 to 122°F (-10 to 50°C) with no condensation
Standards	CE-mark
Warranty	2 year
What’s Included	Meter, Operation Manual, Carrying Case, USB Cable, AA Batteries, 2m Probe Cable

Model Comparison

Air Velocity
Range	2 to 9840 FPM (0.01 to 50 m/s)
Resolution	1 FPM (0.01 m/s)
Accuracy	+/- 2% of READING or +/- 0.015 m/s (+/- 3 FPM) whichever is greater
Temperature
Range	-4 to 158°F (-20 to 70°C)
Resolution	1°F (0.1°C)
Accuracy	+/- 1°F (+/- 0.5 °C)
Relative Humidity
Range	2.0 to 98.0 %RH
Resolution	0.1%
Accuracy	±2.0% (at range of 2 to 80%) ±3.0% (at range of 80 to 98%)
General Specifications
Operating Environment	-4 to 158°F (-20 to 70°C) with no condensation
Storage Environment	14 to 122°F (-10 to 50°C) with no condensation
Standards	CE-mark
Warranty	2 year
Standard Accessories	Probe, NIST Certificate

Lable: Climomaster anemometer/airflow testing instrument
