INTRODUCTION
Musktool-ETCR1800B Wireless High Voltage Electroscope (with voltage and current indication)is specially designed and manufactured for high voltage transmission line electricity inspecting, high voltage transmission line voltage to earth, inductive voltage and current test. The products break through the traditional high voltage electroscope limitation which just can only detect whether there is the electricity. This instrument can test high voltage to earth voltage at the same time of electricity testing alarm, Musktool-ETCR1800A Wireless High Voltage Electroscope electricity testing voltage level 380V~220kV, completely covers the electricity testing and ground voltage test of each voltage level(380V, 6.6kV, 10kV, 35kV, 66kV, 110kV, 220kV), no need to purchase multiple sets of high voltage electroscope according to different voltage levels, which can save cost, safety, reliability and save time. It is a necessary tool for power transmission line maintenance. In the maintenance and repair of the transmission line, even if the line has been disconnected, due to the capacitive effect, there may still exisit very high high voltage through with induction, which seriously threatens the safety of the operators and operation process. It is necessary to pass the electroscope to check whether the voltage of the cable has been reduced to a safe and operable voltage level. Musktool-ETCR1800B Wireless High Voltage Electroscope (with voltage and current indication)consists of host receiver, detector, telescopic insulation rod, monitoring software and USB communication cable etc. During the test, you only need to hang the detector on the bare wire with insulation rod, the voltage value can be read on the handheld receiver through by wireless signal transmission.The wireless signal transmission straight-line distance is about 30 meters. The detector has red LED and buzzer and other sound and light alarms, making the test easier and convenient. Monitoring software has online real-time monitoring, historical data query, save, print and other functions |
SPECIFICAITON
Technical Parameters
| Function | Description | |
| Function | Wireless high voltage electricity testing, High voltage and induction voltage test, H/L voltage current test | |
| Power Supply | Receiver: DC6V, alkaline battery LR03X 4PCS; Detector: zinc-manganese dry battery 6F22, 9V | |
| Transmission Distance | Straight-line transmission distance about 30M | |
| Electricity Test Voltage Range | 380V~220kV | |
| Electricity Test Level | 380V, 6.6kV, 10kV, 35kV, 66kV, 110kV, 220kV | |
| Voltage to Earth Display Accuracy | ±15%±5dgt | |
| Voltage to Earth Display Range | 0.1kV~150kV(Voltage to earth) | |
| Line Voltage Display Accuracy | High voltage overhead line ±15%±5dgt (Other applications: ±25%±5dgt) | |
| Line Voltage Display Range | 0.1kV~220kV (display line voltage, according to the voltage to earth multiply) | |
| Current Range | 0.1A~6000A | |
| Current Accuracy | ±3%±5dgt | |
| Current Resolution | 0.1A | |
| Hook Caliber | Φ60mm | |
| Wireless Frequency | 433Hz | |
| LCD Size | 47mm×28.5mm | |
| Power Supply Indication | With green power indicator | |
| Electricity Test Indication | In electricity test, the detector with sound and light indication function, red double flash indicator and "beep - beep - beep" buzzing sound. | |
| Display Speed | 2 Times/Second | |
| Data Storage | 99 groups (Power down or replace the battery will not lose data) | |
| LCD Backlight | Yes | |
| Automatic Shutdown | 15 minutes after boot up, the meter shuts down automatically without any operation | |
| Low Battery Voltage Indication | When the detector battery voltage is lower than 7.2V±0.1V, the green power indicator flashes; when the receiver voltage lower than 4.8V±0.1V, low battery voltage symbol will display and remind to replace battery. | |
| Rated Current | Detector: 75mA max; Receiver: 35mA max | |
| Communication Interface | USB | |
| Instrument Dimension | Receiver:78mm×165mm×42mm Detector: 300mm×237mm×85mm | |
| Instrument Weight | Instrument: 660g; Package and insulation rod total weight: 5.6kg | |
| Insulation Rod Length | Max Diameter:Φ38 mm; Length: Contraction state 850mm; Stretched state 4500mm | |
| Insulation Test | The insulation rod stretched to both ends: AC 220 kV / rms | |
| Host, detector: AC3700V / rms (between exposed metal and plastic shell) | ||
| External Interference | Non extra strong electromagnetic field?without 433MHz, 315MHz same frequency interference | |
| Working Temperature | -10℃~40℃,below 80%rh | |
| Store Temperature | -10℃~60℃,below 70%rh | |
Selection Guide
| Model | Electricity Test Voltage Level | Display Function | Remark |
| Musktool-ETCR1800A | 380V~220kV | voltage display | equipped with hook probe and probe (replaceable) |
| Musktool-ETCR1800B | 380V~220kV | voltage and current display | Probe (not removable) |

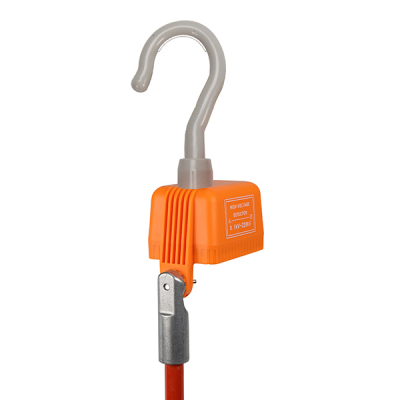

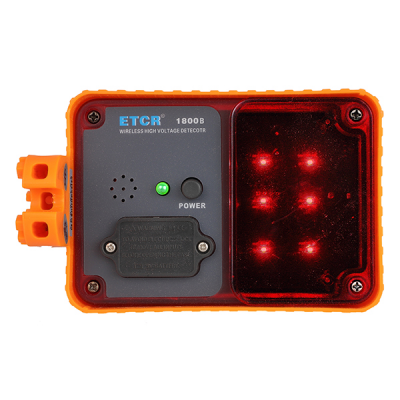

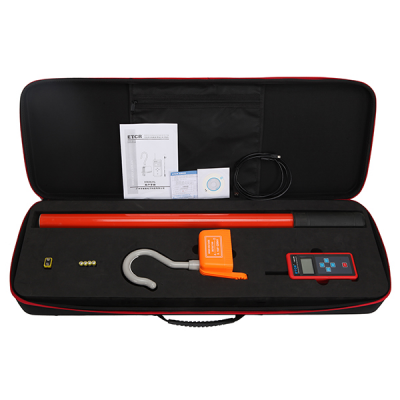

Packing Details
| Receiver | 1 PCS |
| Detector | 1 PCS |
| Hook | 1 PCS |
| Probe | 1 PCS |
| Monitoring Software (CD),USB Communication Cable | 1 SET |
| Instrument Bag | 1 PCS |
| Telescopic insulation rod | 1 PCS |
| Manual Warranty Card Certificate | 1 SET |
