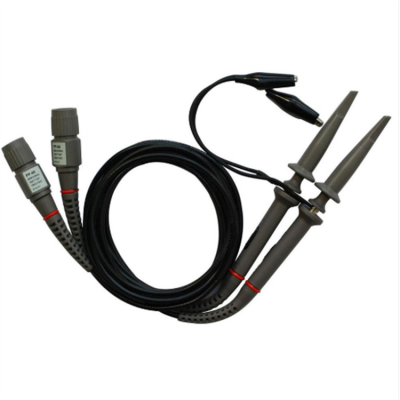

Musktool-oscilloscope Probe (PP80, PP90, PP150, PP200)
Oscilloscope Rapier
Performance & Characteristics
| Attenuation ratio: 1× and 10× optional. |
| Portable design according with ergonomics. |
| Integral injection molding makes the usage more flexible and the oscilloscope able to adapt more testing situations. |
| Safety standards: it has passed the CE Attestation of European Community. |
Application Fields
| Compatible with domestic and international digital and analog oscilloscopes in relevant frequency. |
| Measurement in intermediate and low frequency signals. |
Order Information

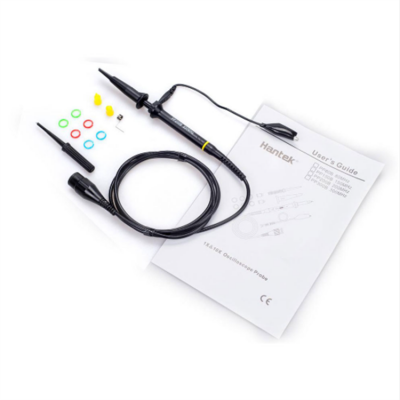

Accessories included by PP series passive voltage rapier
| Operation manual |
| Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph. |
| Contractive-type acuminate hook |
| 12cm earth wire with alligator clip |
| 4 pairs of colorized cable markers |
| Locating sleeve adapts to IC testing. |
Double-nip wire
| Item | PP-80 | PP-90 | PP-150 PP-150B | PP-200 PP-200B |
| Attenuation | x1 x10 | |||
| Input resistance | 1MΩ: 10MΩ | |||
| Input capacitance | x1: 85pF-115pF x10:18.5pF-22.5pF | x1: 85pF-115pF x10: 18.5pF-22.5pF | ||
| Compensation scope | 20pF-40pF | 15pF-40pF | 15pF-35pF | |
| System bandwidth | x1:DC-6MHz; x10: DC-60MHz | x1:DC-6MHz; x10: DC-80MHz | x1: DC-6MHz x10: DC-100MHz | x1: DC-6MHz x10: DC-200MHz |
| Input voltage | x1:<200V DC +Peak AC x10: <600V DC +Peak AC | |||
| weight | 55g | |||
| Cable length | 120cm | |||
| Temperature scope: | Operation: -10℃--+50℃ Not Operation: -20℃--+75℃ | |||
| Humidity | ≤85% (Relative humidity) | |||
PP-80B,PP-150B,PP-200B
PP-80,PP-150,PP-200
