Product introduction

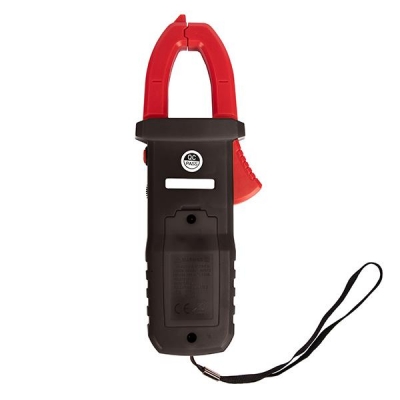

Musktool-ETCR6420 clamp multimeter is a portable clamp digital multimeter, which can measure DC voltage, AC voltage and current true RMS, resistance, frequency, continuity test, temperature, diode forward voltage drop and other parameters, and the capacitance measurement range is expanded to 10mF And the measurement of large capacitance is fast. The instrument is compact in structure, easy to operate and portable, and is an ideal tool for electrical measurement. It provides a safe, accurate and convenient new power meter for electricity inspectors, and is an essential tool for electrician safety inspection. |
Technical parameter
| basic skills | |
| DC voltage | 400mV/4V/40V/400V/600V ± （0.5%+5 ） |
| AC voltage | 4V/40V/400V/600V ± （1.2%+5 ） |
| Alternating current | 4A/40A/400A/600A ± （2%+10 ） |
| resistance | 100Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ ± （1%+5 ） |
| capacitance | 10nF/100nF/1uF/10uF/100uF/1000uF/10mF ±（3%+5） |
| frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz/40MHz ±（0.5%+3） |
| the temperature | -50°C～1000°C ±（1%+4） |
| special function | |
| auto range | √ |
| manual range | √ |
| AC conversion type | True RMS |
| input protection | √ |
| Automatic shut-down | About 10 minutes, can be set to no automatic shutdown |
| Diode test | Can measure LED working voltage below 3V |
| Duty cycle measurement | √ |
| NCV (Fire Wire) Measurements | √ |
| Short circuit buzzer | √ |
| low pressure indication | √ |
| input resistance | About 10MΩ |
| data retention | √ |
| blue backlight | √ |
| Jaw size | Measurable maximum wire diameter Ф27mm |
| general characteristics | |
| power supply | AAA1.5VX2 |
| Instrument weight | 230g (including battery) |
| Meter size | 213X80X35mm |
MODEL COMPARISON
| Product number | Jaw size | DC voltage | AC voltage | DC | Alternating current | resistance |
| Musktool-ETCR6420 | Ф27mm | 0mV~600V | 0V~600V | / | 0A~600A | 0 Ω ~40MΩ |
| Musktool-ETCR6450 | F52mm | 0mV~1000V | 0mV~700V | 0A-1000A | 0A~1000A | 0 Ω ~40MΩ |
| Musktool-ETCR6470 | F55mm | 0V~2000V | 0V~2000V | 0A~2000A | 0A~2000A | 0 Ω ~20MΩ |
