USB port cnc milling machine 5 axis mini cnc 6040
Category | Specification |
Ease of Operation | - Compatible with 3-axis/4-axis/5-axis configurations |

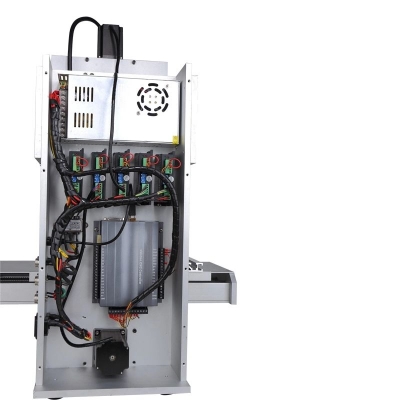

- Standalone high-speed microcomputer intelligent controller | |
- Independent driver for each axis | |
- Mach3 software USB connection | |
- Upgraded structure, more stable than older models | |
- Built-in frequency converter (no control box required) | |
Higher Precision | - Cross-slide platform design (instead of gantry design) |
- Heavy aluminum base plate reduces vibration during operation | |
- Auto-check function | |
- 1500W/2200W water-cooled spindle | |
- Ball screw mechanism | |
- Stainless steel water tank for bit cooling | |
Specifications | |
Voltage | 220V / 110V |

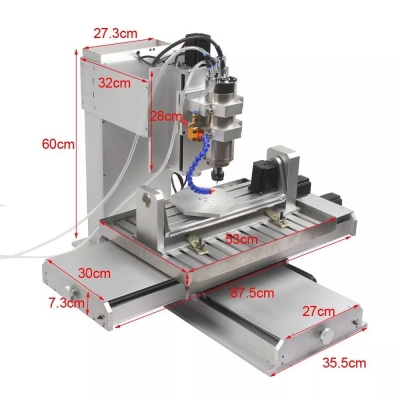

Dimensions (L×W×H) | 970 × 810 × 790 mm |
Effective Stroke | 583 × 420 × 145 mm |
Repeat Positioning Accuracy | ±0.05 mm |
Processing Speed | 0–4000 mm/min |
Table Max Load | 15 kg |
Material | Stainless steel tailgate |
Output Current | Driver 4.5A (Peak 5A) |
A-axis/B-axis Rotation Speed | 0–180 RPM |
Net Weight | 120 kg |
Packaging Size | 116 × 99 × 58 cm |
