Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

2025-08-06 11:02:24

Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

Main Feature :
Serial No. : monica0997

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-XLG-75-24-A 75W 24V 3.1A LED Driver 24 Voltage Constant Class 2 6Kv 4Kv Protection AC DC Switching Power Supply

Product descriptions from the supplier

Product Description

Wide input range 100~305V AC(Class I)

Full power output at 70~100%

Constant power mode operation

Metal case with IP67, suitable for outdoor application

Class 2 power unit(except for L type)

Surge protection with 6KV/4KV

3 in 1 dimming function (Dim to off and Isolation design)(Except 12v 24v)

India (EESL) version with Input Over Voltage

Protection can survive input voltage stress of 440Vac for 48hours

Protection functions: OVP/SCP/OCP/OTP

Life time >50,000 hrs.

and 5 years warranty

Please chat with me if you need more pdf specification.

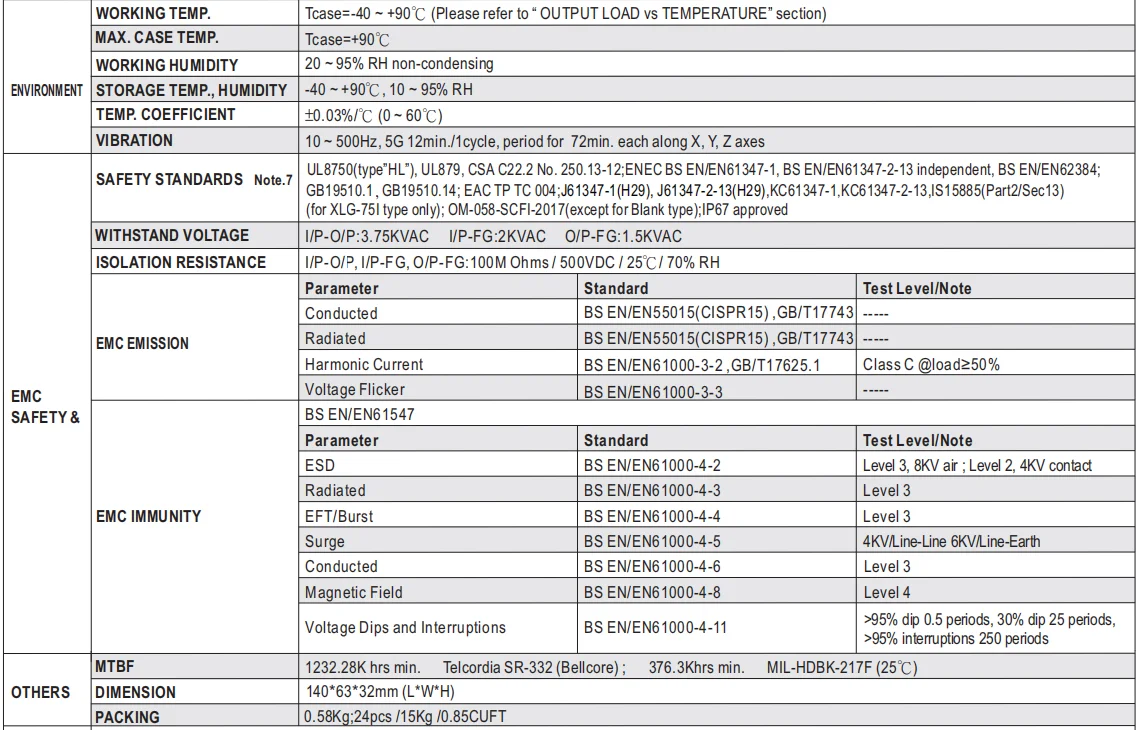

Specification and detailed pics

Lable: LED Driver
