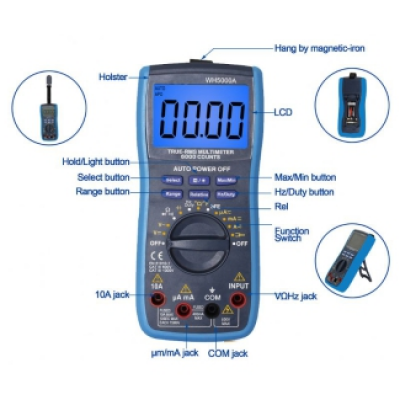

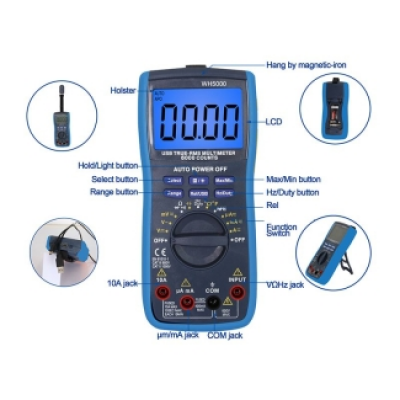

Xtester-WH5000,5000A True RMS Digital Smart Multimeter
Characteristic
With data transfer function to store data |
Large LCD |
Easy to read in dark condition with blue backlight |
Data hold function for easy reading after measurement |
With analogue bar graph for visual display |
With MAX and MIN value display |
Double fuse and anti-burn design, safe and reliable |
With frequency and temperature test function |
With PVC shockproof holster |
Technology features
DCV: 60m-600m-6-60-600V | ±0.5% |
ACV: 60m-600m-6-60-600V | ±1.0% |
DCA: 600μ-6000μ-60m-600m-20A | ±1.8% |
ACA: 600μ-6000μ-60m-600m-20A | ±2.0% |
Resistance: 600-6K-60K-600K-6M-60MΩ | ±1.0% |
Capacitance: 60n-600n-6μ-60μ-600μF | ±5.0% |
Frequency: 9.99~9.99MHz | ±3.0% |
Temperature: -20ºC~1000ºC/-4ºF~1832ºF | ±2.0% |
Duty cycle: 0.1%~99.9% | ±0.1% |
Description
LCD size: 64x42mm |
Max display: 5999 |
Low battery indication: yes |
Overload protection: yes |
Auto range: yes |
Diode test: yes |
Transistor test: yes |
Continuity buzzer test: yes |
Auto power off: yes |
Data hold: yes |
Backlight: yes |
Analogue bar graph: yes |
USB interface: yes |
Power supply: one 9V 6F22 batter |
Product size: 188x81x48mm |
Product weight: about 357g (with holster) |
Standard accessories: meter (with battery), holster, multi-function socket, test lead, thermocouple, USB data line, CD disc, manual |
