UT-883R/UT-883F/UT-883N UOTEK USB to RJ45 Console debug cable

  • Main Feature :
  • Serial No. : Zoe217
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-UT-883R/UT-883F/UT-883N UOTEK USB to RJ45 Console debug cable



Standards: USB V1.1, 1.0, 2.0, RS-232 EIA

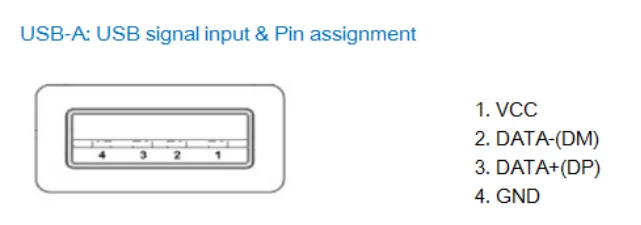

USB signal: VCC, DATA-, DATA+, GND, FG

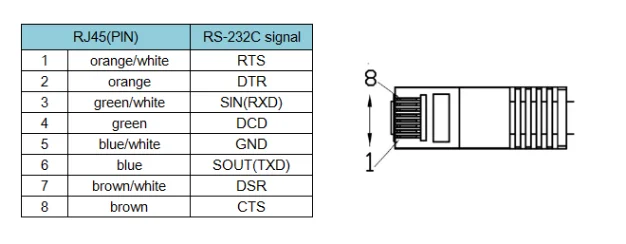

RS-232 signal: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS

Working mode: asynchronous, point to point

Direction control: Adopts data flow direction auto-control technology to distinguish and control the direction

Baud rate: 300-460,800bps auto detection

Loading capacity: Supports point to point communication

Transmission distance: 5m for RS-232 port, no more than 5m for USB port

Port protection: ±15KV ESD protection

Interface: USB-A male, RJ45

Transmission media: twisted-pair or shielded wire

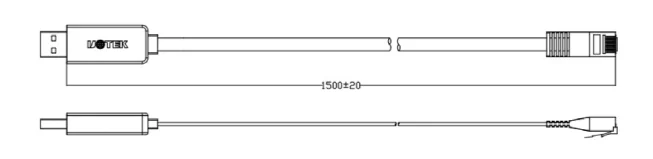

Length: 1500±20mm

Operating temperature: -40 ~ 85 °C

Relative humidity: 5 ~ 95%

Supports Win95/98/2000/2008/XP/Vista/7/8/8.1/10/IMAG



Overview

With the continuous development of PC industry, USB interface is gradually replacing the old PC with various low-speed peripheral interfaces, however, many important devices in industrial environment still use RS-232 interface design, so many users use USB to RS-232 converter to achieve data transfer between PC and RS-232 devices.



The UT-883R is a universal USB/RS-232 converter, which is compatible with USB and RS-232 standards without external power supply, and can convert a single USB signal to RS-232 signal with zero delay automatic transceiver, unique I/O circuit to control the data flow direction automatically, plug and play. Ensure that it is suitable for all existing communication software and interface hardware.



UT-883R interface converter can be point to point, data communication rate 300-460800bps, supported communication methods are USB to RS-232 conversion. Applications: Attendance machine, switch, router, gateway, firewall, PLC, cash register, PLAM, CNC machine tool, disposal MODEM, ISON terminal, scanner, industrial control, industrial instrument, temperature control equipment, LED display, PDA tax control machine, touch screen, printer, access control system, etc.



 20210719165450_41574.png20210719165518_97023.png20210719165636_43622.png20210719165951_55205.png
