UT-850N UOTEK USB to RS-485/422 Converter

  • Main Feature :
  • Serial No. : Zoe218
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-UT-850N UOTEK USB to RS-485422 Converter

Standards: USBV1.1, RS-485/422 EIA

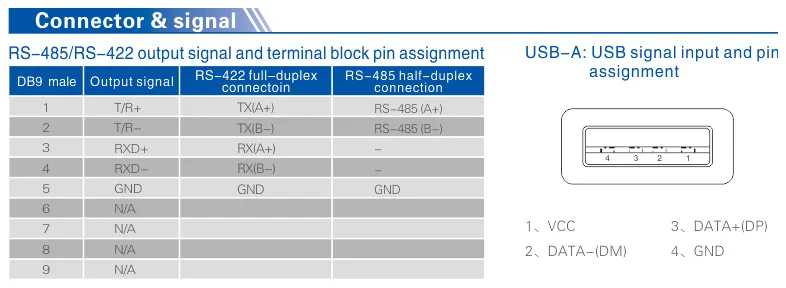

USB Signal: VCC, DATA+, DATA-, GND, FG
RS-485 Signal: T+, T-, GND
RS-422 Signal: T+, T-, R+, R-, GND
Working mode: Asynchronous, point to point or point to multi-point, 2 wires half-duplex or 4 wires full-duplex
Direction control: Adopts data flow direction auto control technology to distinguish and control the direction
Baud rate: 300-921.6Kbps auto-detect serial signal
Loading capacity: Supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
Transmission distance: 5,000m(9,600bps) for RS-485/422, no more than 5m for USB
Port protection: Surge, ±15KV ESD protection
Connector: USB-A male, DB9 male
Transmission media: twisted-pair or shielded cable

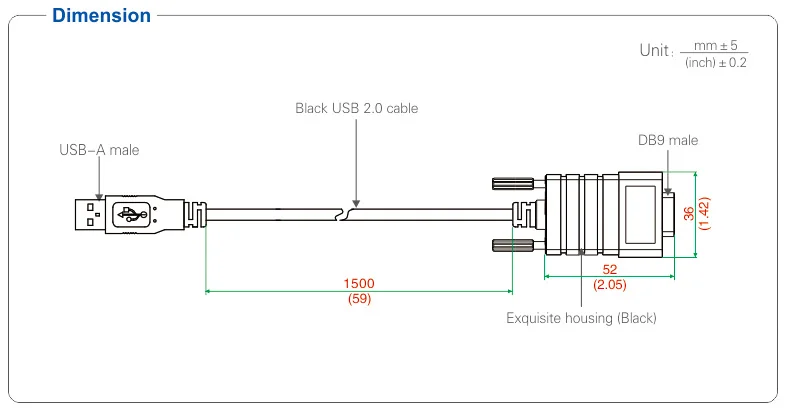

Length: 1.5m
Operating temperature: -20℃ to 75℃

Relative humidity: 5% to 95%
Transmission distance: 0-1,200m(921,600bps-9,600bps)
Supports Win Android/2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux



Overview

As the PC industry growing, most of the low speed external ports are replaced by USB port. In industrial environment, lots of important equipments still adopt RS-485/422 interface design. With this, most of the users use USB to RS-485/422 converter to transmit the data between PC and RS-485/422 equipments.

UT-850N is a universal USB to RS-485/422 converter. There is no need external power; it is compatible with USB and RS-485/422 standards. UT-850N enables to convert USB signal to balanced differential RS-485/422 signal. It provides each wire with surge protection; the tiny interelectrode capacitance ensures high speed transmission for RS-422/485 ports. RS-485/422 adopts DB9 female as connector; internal zero delay auto receiving and transmitting function, unique I/O circuit auto control data flow direction without any handshake signal (RTS, DTR) ; there is no need jumper wire setting for full duplex (RS-422) and half duplex (RS-485) mode, plug & play. All these ensure that it is compatible with all the communication software and interface hardware.

UT-850N provides connection for point to point, point to multipoint communication. For point to multipoint mode, each converter is allowed to connect 32 sets RS-422 or RS-485 device with baud rate 300-921.6Kbps.
