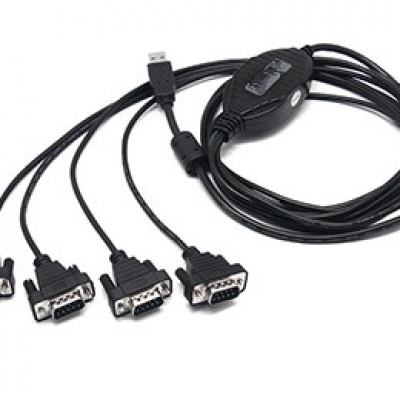

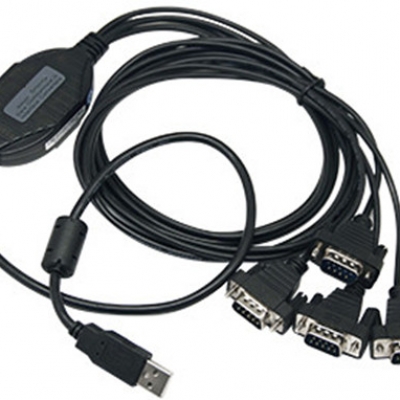

UT-8814 UOTEK USB to 4-Port RS-232 Converter USB V2.0

  • Main Feature :
  • Serial No. : Zoe222
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-UT-8814 UOTEK USB to 4-Port RS-232 Converter USB V2.0

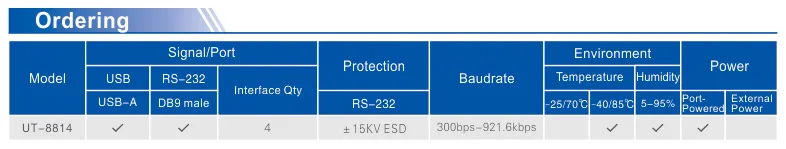

Standards: USBV1.1, 2.0, RS-232 EIA

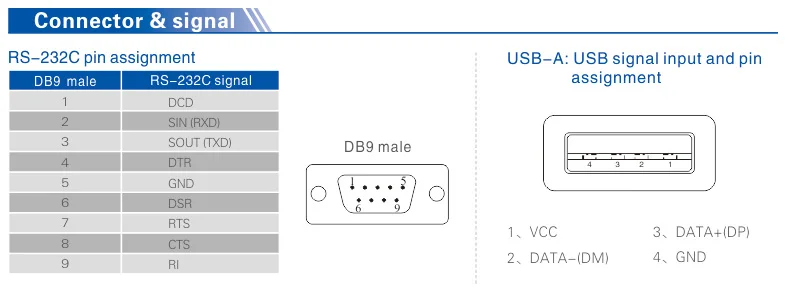

USB signals: VCC, DATA-, DATA+, GND, FG
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI
Working mode: Asynchronous, point to point
Direction control: Adopts data direction auto control technology, auto control the data transmission direction
Baudrate: 300-921,600bps, auto detection
Load capacity: supports point to point
Transmission distance: RS-232 5m, USB no more than 5m
Port protection: surge, ±15KV ESD protection

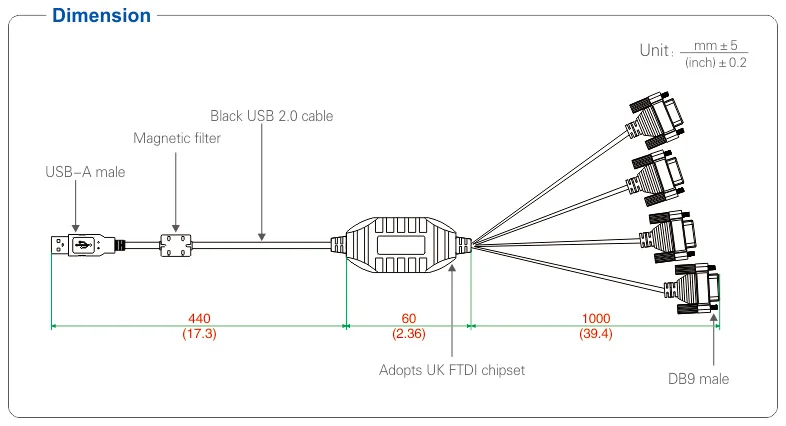

Connector: USB-A male, DB9 male
Indicator: TXD, RXD, POWER
Transmission media: Twisted pair or shielded cable
Cable length: 1.5m
Operating temperature: -40~85, relative humidity 5%~95%
Supports Win8/Win10/Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux




As the development of PC, USB port starts to replace most of the low speed external ports from old PC. In industrial field, most of the devices or equipments are still using RS-232 interface. In this situation, we need to use USB to RS-232 converter to complete the data transmission between PC and RS-232 equipment.

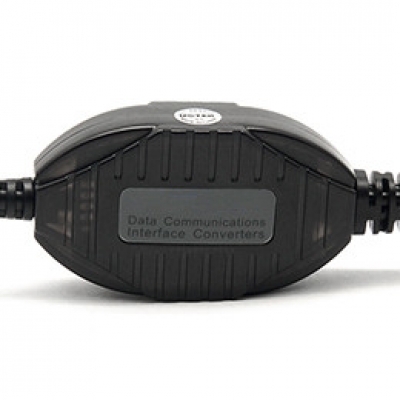

UT-8814 is a universal USB/4 ports RS-232 converter without external power. It complies with USB, RS-232 standards; it converts single side USB signal to RS-232. This converter is with built-in zero delay auto receiving and transmitting conversion and unique I/O circuit auto control data flow direction, plug & play. It is compatible with current communication software and hardware.



UT-8814 converter provides connection for point to point communication. The baud rate can be 300-921,600bps. The power and data flow indicators indicate the working status.
