Musktool-UNIVERSAL ENCODER Mini-Wheel Encoder Compatible with OLYMPUS NDT

  • Main Feature : Musktool-UNIVERSAL ENCODER Mini-Wheel Encoder Compatible with OLYMPUS NDT
  • Serial No. : Owen0228
Contact Us For QuotationEmail:  464560351@qq.com  Whatsapp&Wechat:+8618620373879

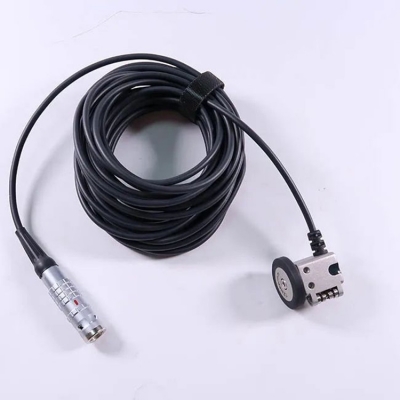

Musktool-UNIVERSAL ENCODER Mini-Wheel Encoder Compatible with OLYMPUS NDT

FEATURES

  • Waterproof

  • Small dimensions

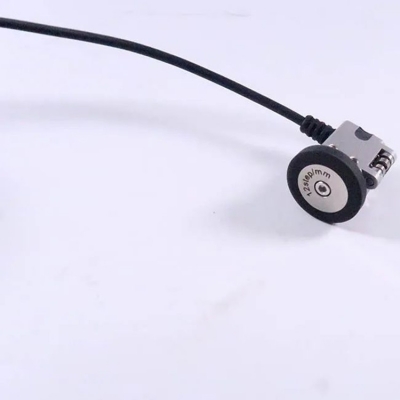

  • Encoder resolution is engraved on the wheel

  • Removable encoder wheel

  • Double O-ring tire for better adherence

  • Metallic strain relief for cable protection

  • Spring-loaded pin for encoder attachment

  • Two M3 threaded holes on top of the casing for rigid attachment

  • DE version is compatible with the Omniscan instrument (with DE15 connector type)

  • BX version is compatible with the FOCUS LT instrument (with Bendix connector type)



The Mini-Wheel Encoder is used for the positioning and dimensioning of defects in the scan axis. It can synchronize data acquisition with probe movement.

The Mini-Wheel Encoder is waterproof and compatible with the HST-X04 scanner, as well as Olympus NDT standard PA wedges that can be connected with the included bracket kit.

This miniature encoder is built with an aluminium casing, a stainless steel wheel, and has a resolution of 12 counts per millimeters (304.8 counts per inch).

TMTECK UNIVERSAL ENCODER Mini-Wheel Encoder Compatible with OLYMPUS NDT

A = 27 mm (1.06 in.)

D = 24 mm (0.94 in.)

B = 28.7mm (1.12 in.)

E = 17.5 mm (0.69 in.)

C = 22.5 mm (0.89 in.)

F = 6 mm (0.23 in.)



Part number, Cable length (m), Connector

TE01-F2.5-J2

2.5

TE01-F5-J2

5.0

TE01-F7.5-J2

7.5

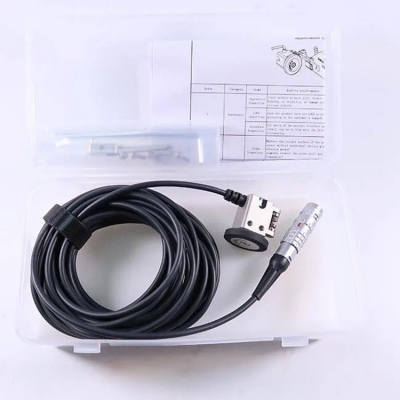

Standard Inclusions

• 1 encoder with standard wheel

• 1 bracket kit

• 1 Allen key screwdriver for bracket attachment

• 1 carrying case

TMTECK UNIVERSAL ENCODER Mini-Wheel Encoder Compatible with OLYMPUS NDT
