Musktool-IIW-type 2 Ultrasonic Calibration Block 1018 SteelUltrasonic Flaw Detection

Main Feature : Musktool-IIW-type 2 Ultrasonic Calibration Block 1018 SteelUltrasonic Flaw Detection
Serial No. : Owen0229

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-IIW-type 2 Ultrasonic Calibration Block 1018 SteelUltrasonic Flaw Detection

Features

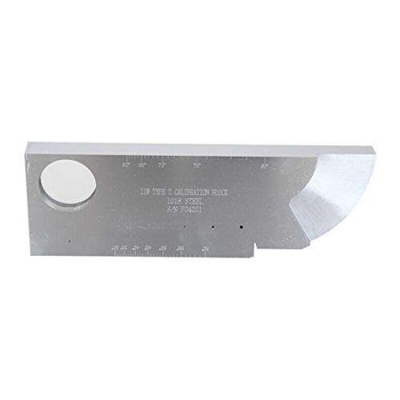

A modified version of the original IIW-Type 1 design in a inch version, design based on International Institute of Welding,

ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1

Includes a 2.0" radius x .250" deep cut-out superposed on the 4.0" radius for distance calibration.

Also includes numbers 3, 5 and 8 through holes (3/64", 5/64" AND 8/64" diameter) for sensitivity testing or surface wave

inspection, and distance calibration marks to the 2.0" hole.

Dimensions: 12.0" x 4.0" x 1.0"

Material: 1018 Steel

Weight:6 KG

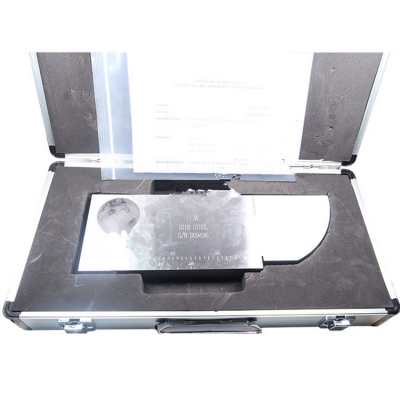

Package including
Calibration block	1
certificate	1
carrying case	1

Lable: Musktool-IIW-type 2 Ultrasonic Calibration Block 1018 SteelUltrasonic Flaw Detection
