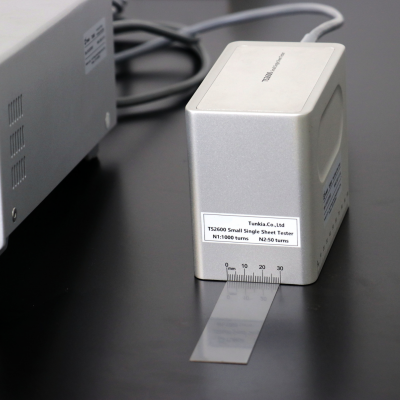

Musktool- TS2600 Iron loss Fast Tester for Electrical Steel Sheets
| TS2600 is an instrument used to quickly measure the AC magnetic properties of electrical steel sheets. It can quickly measure Ps of electrical steel sheets. |
Summary
| TS2600 is an instrument used to quickly measure the AC magnetic properties of electrical steel sheets. It can quickly measure Ps of electrical steel sheets. |
Features
It can quickly measure the loss of multiple points. It can display a variety of magnetic parameters, including Ps,Jm,Hm. The user only needs to press the sheet tester under specimens to measure. Supports one-click storage and viewing of measurement data, including test date and time. Equipped with large size LCD touch color screen. |
Specifications
Testing Capability | Test point | P1.0,P1.5,P1.7 [1] |
Frequency | 50 Hz / 60 Hz | |
Uncertainty of Voltage and Current (k=2) | 0.2%*RG [2] | |
Uncertainty of Active Power | 0.5%*FS [3] | |
Uncertainty of Ps (k=2) | 10% | |
Repeatability of Ps | 2% | |
Specimens | Size (L × W) | ≥ 30 mm × 100 mm |
Thickness | 0.1 mm~1.0 mm | |
Other Requirements | The surface should be clean, flat, free from spots and scratches |
General specifications
Power supply | AC ( 220 ± 22 ) V,( 50 ± 2 ) Hz |
Temperature performance | Working temperature:0°C~40°C; Storage temperature:-20°C~70°C |
Humidity performance | Working humidity:40%~80% R·H,No condensation Store humidity:< 95% R·H,No condensation |
Quality | About 3kg |
Size | 230 mm(W) ×290 mm(D) × 130 mm(H) |
Note: [1] P1.7 is the test point of orientation steel; Note: [2] RG is range; Note: [3] FS= Voltage range x current range, when the phase Angle is within 75 degrees. Repeatability: put the same specimens in the specified position and keep it from moving, and measure it repeatedly for 10 times. Take the maximum or minimum value of 10 measurements minus the average value divided by the average value, and the maximum value of the two represents repeatability. |
