Xtester-Tenmars TM-196 3-Axis RF Field Strength Meter Frequency Electromagnetic Field Strength Tester EMF Meter Range 50mV/m to 11V/m

  • Main Feature :
  • Serial No. : zoe029
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Xtester-Tenmars TM-196 3-Axis RF Field Strength Meter Frequency Electromagnetic Field Strength Tester EMF Meter Range 50mV/m to 11V/m

Application


TM-196 is designed for measuring and monitoring Radio Frequency(RF) electromagnetic field strength

and capable of measuring the frequency range of 10Mz~8GHz. It's ideal for the applications of:

RF power measurement for transmitters.

High frequency(RF)electromagnetic wave field strength measurement.

Mobile phone base station antenna radiation power density measurement.

Spy camera, wireless bug finder.

Wireless communication (CW, TDMA, GSM, DECT) applications.

Wireless LAN (Wi-Fi) detection, installation.

Cellular /Cordless phone radiation safety level.

Microwave oven leakage detection.

Personal living environment EMF safety.


Features


Measurement range: 38mV to 11V/m

Frequency range: 10MHz~8GHZ.

Sensor: Triple Axis (X, Y, Z).

Manual data memory (Max & AVG) records.

Calibration factor, Alarm and Clock settings.

Specification


 Measurement range

 50mV/m to 11V/m

 Display

 4½ digits maximum reading 19999

 Frequency range

 10MHz~8GHz

 (accuracy :±1dB at 2.45GHz)

 Measurement units

 mV/m, V/m, µA/m, mA/m,

 µW/m², mW/m²,µW/cm²

 Display resolution

 0.1mV/m, 0.01V/m,
 0.1µA/m, 0.001mA/m,

 0.001µW/m², 0.01mW/m²,
 0.001µW/cm²

 Manual data memory

 200 data sets

 Alarm function

 Adjustable threshold with ON/OFF

 Memory recall

 Adjustable

 Calibration factor CAL

 The CAL setting range is from 0.10~5

 Sampling time

 3 times per second

 Operating temperature

 and humidity

 0°C~50°C (32°F~122°F),

 25% ~75% RH

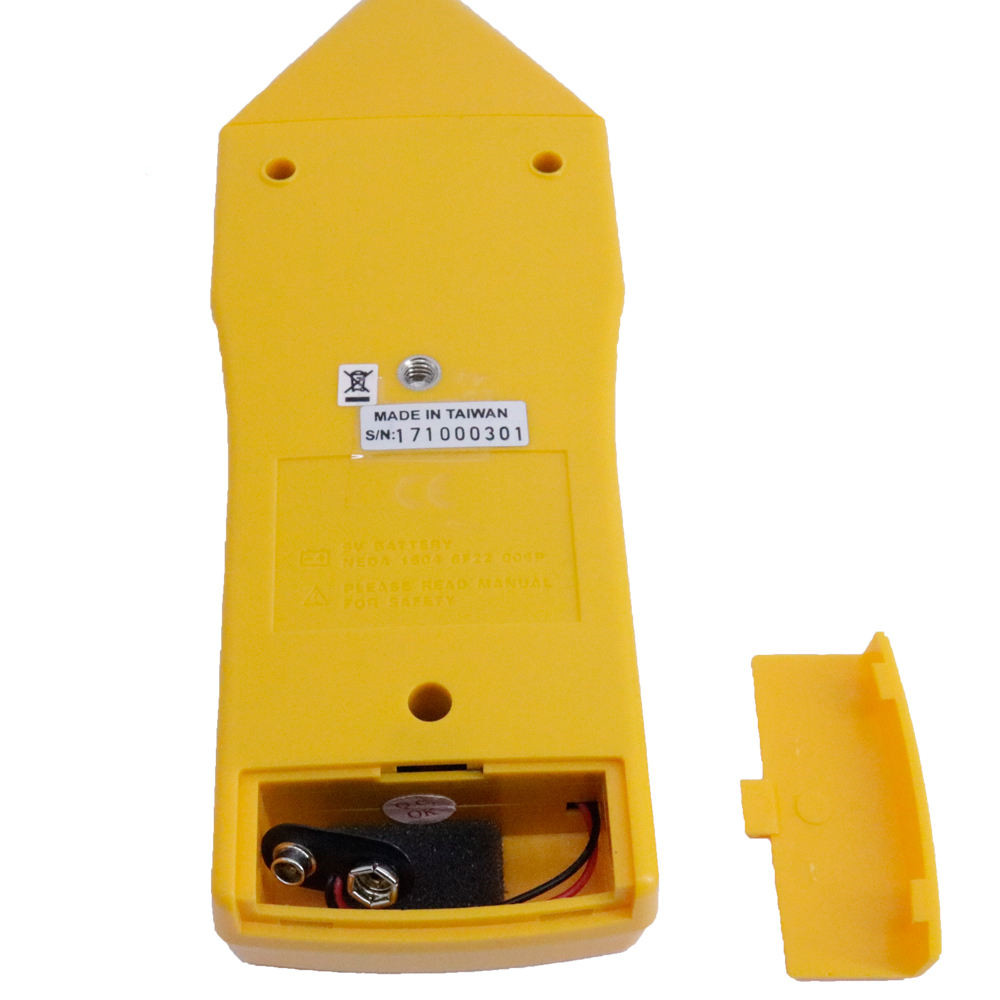

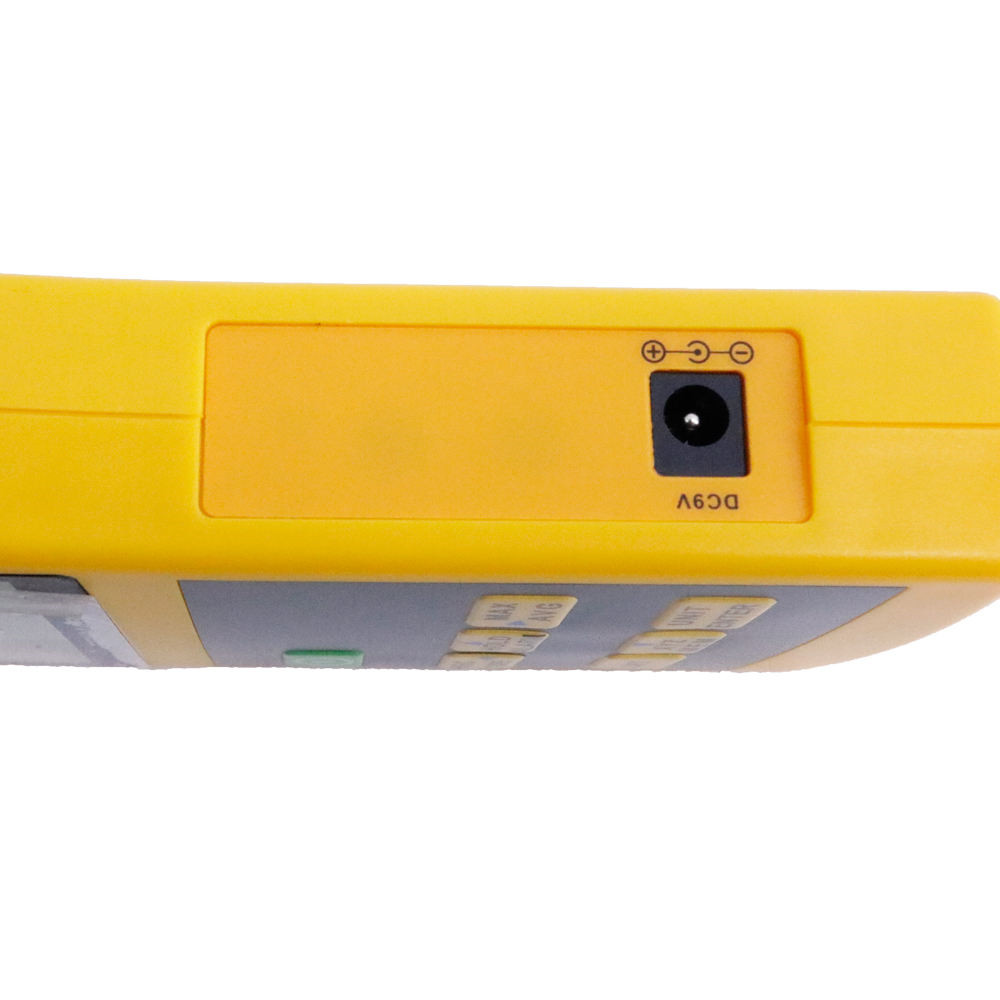

 Power supply

 9V battery
 (NEDA 1604 IEC 6F22 JIS 006P)

 Battery life

 Approx. 3hours

 Dimension

 370x80x80mm (LxWxH)

 Weight

 Approx.400g (including battery)
