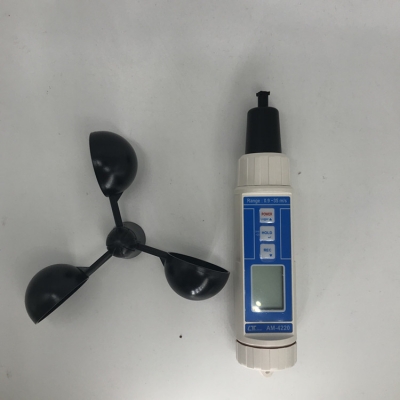

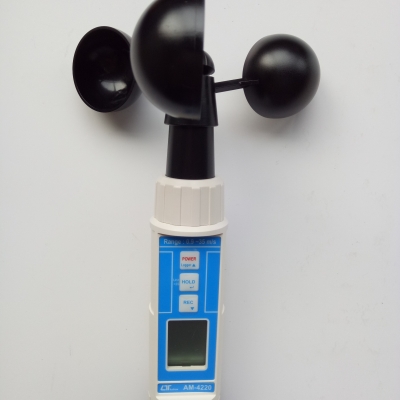

Musktool-CUP ANEMOMETERAM-4220
Features
1. High Reliability Measurement: Designed for outdoor wind speed measurement with a cup vane anemometer probe, offering high reliability and accuracy. 2. Wide Measurement Range: Measures wind speed from 0.9 to 35.0 m/s, with multiple units available including m/s, km/h, ft/min, knots, and miles per hour (mile/h). 3. IP65 Water Resistance: Features an IP65-rated water-resistant design, ensuring durability and reliability in various environmental conditions. 4. Data Logging and Recall: Includes a 100-point data logger with recall, and records maximum and minimum readings with the ability to recall these values. 5. User-Friendly Display: Equipped with an LCD display for easy readability, and includes data hold and auto power off functions to save battery life. |
Specifications
| Display | LCD size : 28 mm x 19 mm. |
| Anemometer Unit | / |
| Temp. unit | / |
| Barometer unit | / |
| Humidity unit | / |
| Dew point | / |
| Circuit | Custom one-chip of microprocessor LSI circuit. |
| Sensor Structure | Cup van probe with low friction ball bearing design. |
| Data Hold | Freeze the display reading. |
| Memory Recall | Maximum & Minimum value. |
| Sampling Time | Approx. 1 second. |
| Power off | Auto shut off saves battery life or manual off by push button. |
| Operating Temperature | 0 to 50 °C. |
| Operating Humidity | Less than 80% R.H. |
| Power Supply | DC 1.5 V battery ( UM4/AAA ) x 4 PCs, |
| Power Current | Approx. DC 6.8 mA |
| Weight | 181 g/ 0.4 LB. @ Battery is included. |
| Dimension | Main instrument : 190 x 40 x 32 mm (7.5" x 1.6" x 1.3") Cup vane ( 3 cups with arm ) : 135 mm dia. |
| Measurement | m/S (meters per second) Km/h ( kilometers per hour ) Knot ( nautical miles per hour ) ft/min ( feet per minute ) mile/h ( miles per hour ) |
| ELECTRICAL SPECIFICATIONS | / |
| Datalogger Sampling Time Setting range | Max. can save 100 point data with recall. Manual, push the data logger button once will save data one time. |
| Memory Card | / |
| Advanced setting | / |
| Temperature Compensation | / |
| Data Output | / |

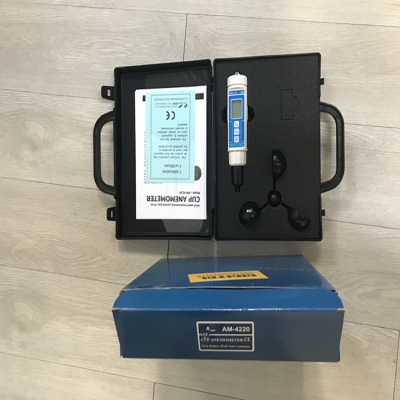

| Accessories Included | Instruction manual : 1 PC Carrying case : 1 PC |
| Optional Accessories | / |
