Musktool-TM681-C70,TM681B-11B111.TM681A-11C1100.TM681-12B1100 Flame Controller New in Stock

  • Main Feature :
  • Serial No. : Lisa0827
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-TM681-C70,TM681B-11B111.TM681A-11C1100.TM681-12B1100 Flame Controller New in Stock

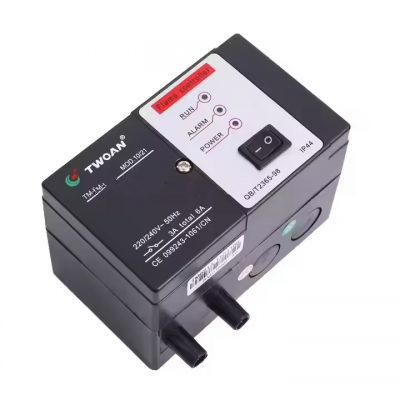

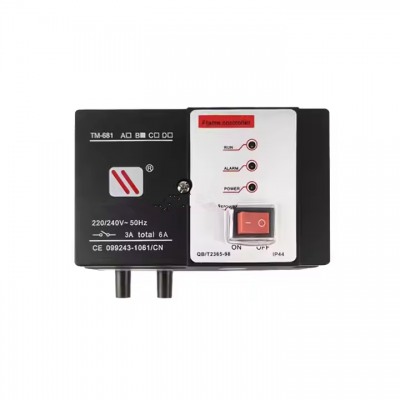

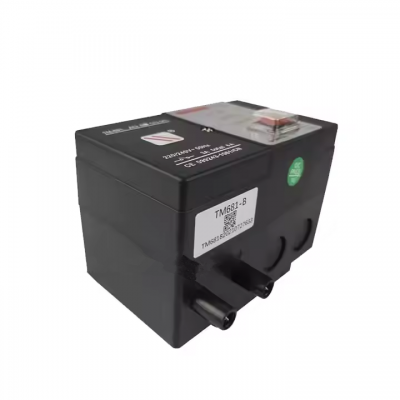

Product Overview

The TM681-A is an advanced automatic ignition controller designed for industrial and commercial burning applications. It offers a range of features that make it ideal for use in various industries such as metallurgy, ceramics, glass production, chemicals, building materials, and foundry.

Key Features

  1. Versatile Fuel Compatibility:

    • The TM681-A is capable of igniting a wide range of gas and liquid fuels.

  2. Comprehensive Functionality:

    • It includes functions such as automatic ignition, flame detection and indication, flame-out protection, fault alarm indication, and dual-stage combustion control.

  3. Flame Detection:

    • The controller can be paired with either a UV flame detector or an ion flame rod for reliable flame monitoring.

  4. Robust Design:

    • With its compact structure and built-in ignition transformer, the TM681-A offers ease of installation and operation.

    • It has a strong on-site anti-interference ability and can operate normally under strong inverter interference.

  5. Safety and Protection:

    • The flame-out protection feature ensures safety by shutting down the system if the flame is extinguished.

    • Fault alarms provide timely warnings of any issues.

  6. Technical Specifications:

    • Rated Voltage: AC220V230V 50/60Hz (-15%+10% voltage fluctuation range).

    • Power Rating: 10W.

    • Operating Temperature: -20+60°C (standalone installation); -20+45°C (when installed with two or more devices combined).

    • Design Life: 100,000 normal operations (under all specified conditions).

    • Ignition Spark Length: Up to 1 cm, which is relatively long among similar products.

    • Ignition Response Time: Less than 0.5 seconds.

    • Dimensions: 126.5 mm (W) x 76 mm (H) x 86 mm (D).

    • Weight: Approximately 500 grams.

  7. Ease of Use:

    • The controller is compatible with various UV detectors available in the market, including 2-wire, 3-wire, and 4-wire types

Other attributes

Place of Origin
Standard
Application
NA
Motor Type
NA
Material
NA
Brand Name
NA
Model Number
TM681
Type
controller
Model
TM681
