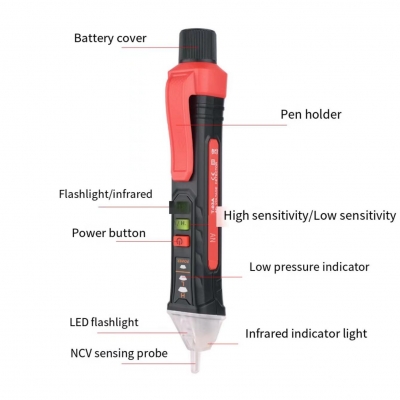

Musktool-T03B Digital Multimeter series intelligent measuring pencil
Technical Datasheet T03B(voice reading)
Voltage detection range | 12~1000V,50/60Hz |
Boot key | Have |
Shutdown key | Be off after 5 mints without operation |
Measurement alarm | Yellow light is on when the signal is weak,and red light is on when the signal is strong.The buzzcue also becomes faster or slower with signal intensity |
voice reading | Have |
llmination/red light indicator | Tap to_turn on the lighting,and then tap to turn off the lighting.Press and hold for 2s to turn on the red indicator |
Sensitivity regulation | Have |
Sensitivity Settings | Have |
Fire discrimination | The neutral line or weak electric field can only trigger the yellow light to be on,and only the live line can trigger the red light |
Product Description
*T03B is an intelligent voice measuring pen,which can both sense the long-distance electric field and distinguish the live/neutral line at close distance. *The default low sensitivity test state isturned on,and you can switch between high and low sensitivity by pressing the sensitivity switch. *Widely used in home decoration,engineering installation and maintenance industries. |
T03B
| |
Product Colour | Iron-gray and Orange Red
|
Product Net Weight | about 40g
|
Product Size | 165.5×24.5×28.1mm |
Individual carton Size | 167×35×30mm |
Battery | 2*1.5VAAA alkaline battery
|
Standard Accessories | Packing Carton ,English Manual ,Battery |
Including package weight | about 67.5g |
Quantity | 100
|
Outer Carton Size | 360×335×210mm
|
Net Weight | about 6.8KG |
Gross Weight | about 7.6kg |
