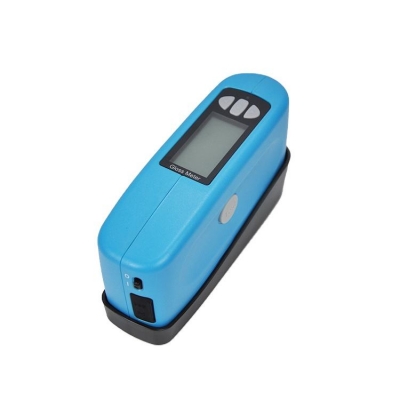

SKZ117A auto 60 degree paint gloss test meter

  • Main Feature :
  • Serial No. : Zoe177
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-auto 60 degree paint gloss test meter



Designed according to the national verification regulation of JJG696 standard, adopt long life light source, good repeatability, small volume, high precision and good stability. It is mainly used coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials to the surface of the mirror gloss measurement, more stable performance, more durable, more comfortable

Function:

(1) One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incident angle of mirror gloss meter is 20 °, 60 °, 85 ° respectively

(2) Optional angle mode: choose measuring angle or angle combination according to user needs.

(3) Manually entering standard samples gloss data

(4) Humanized design, good man-machine communication interface

(5)Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data

(6) Data browsing and viewing function

(7) The machine has automatic shutdown function, low power warning functions, full data storage hint functions

(8) USB communication interface to communicate with PC

(9) PC software can be extended more functions.

 Specification

Specification

SKZ117B

SKZ117A

Measuring Angle

20° 60° 85°

60°

Measuring Range

20°:0-2000GU

60°:0-1000 GU

85°:0-160 GU

60°: 0-1000

Measuring Spot

20°: 10x10 mm

60°:9x15 mm

85°:5x18 mm

60°9x15

Measuring Spot

0-1000:0.1 GU,  1000-2000:1 GU

Repeatability

0-100:0.2 >100:0.2% GU

Indication Error

±1.5 GU

Zero Error

0.2 GU

Working Temperature

10℃ - 40℃

Storage Temperature

-10℃ - 70℃

Humidity Range

less than 85%,without condensation

Power Adapter

Section 2 5 alkaline batteries/power adapter

Volume

159x49x72 mm

Weight

500 g

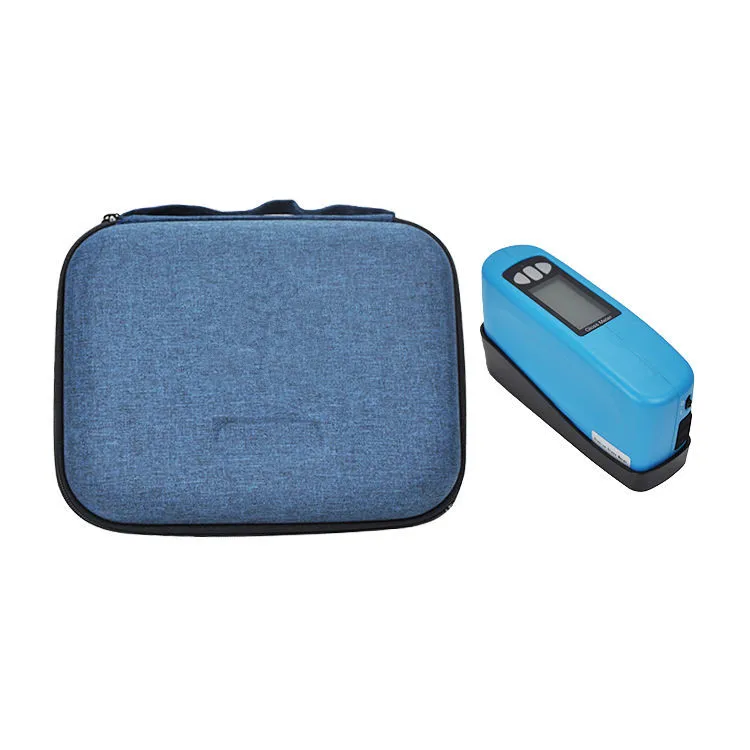

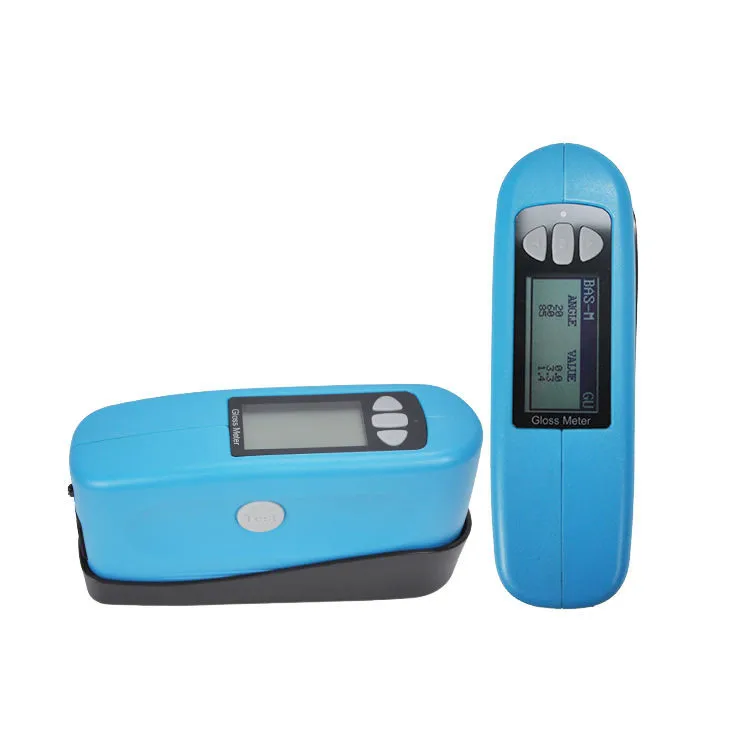

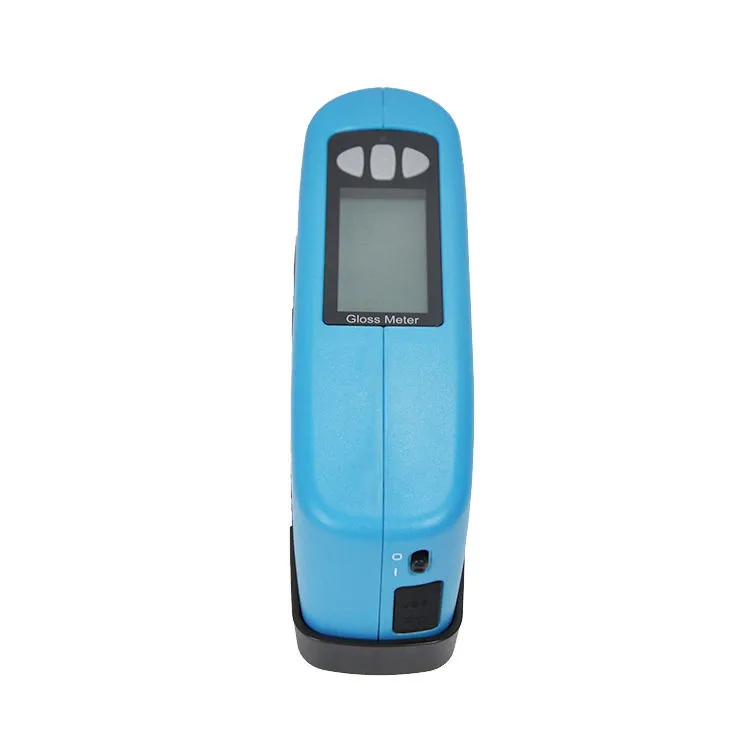

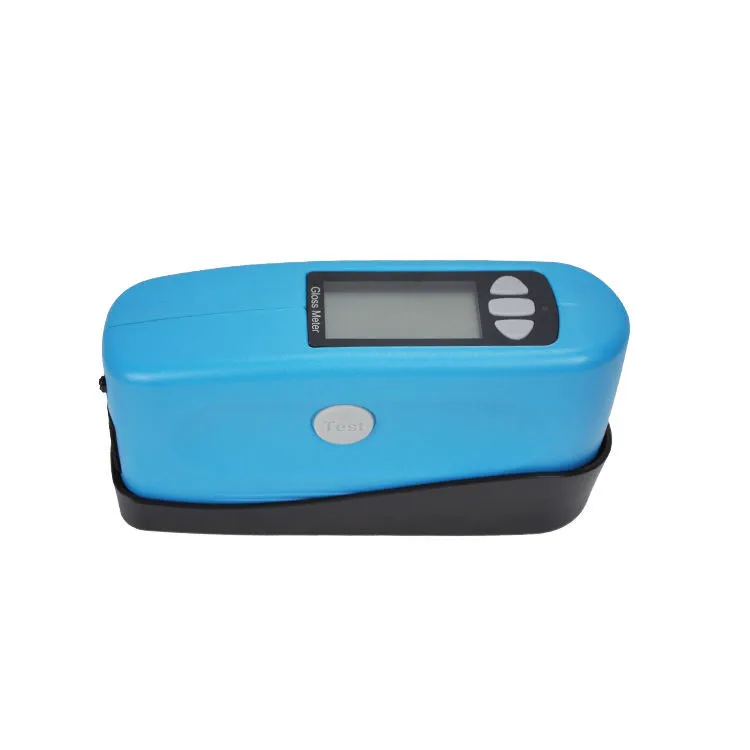

 j (1).jpgj (2).jpgj (3).jpgj (4).jpg
