Rescue lifting tripod

  • Main Feature :
  • Serial No. :
Contact Us For QuotationEmail:  464560351@qq.comWhatsapp&Wechat:+8618620373879

Musktool-Rescue lifting tripod

1、 Scope of application

The utility model relates to a tripod used for deep wells, high-rise buildings and other high-rise rescue. It is applicable to fire fighting and rescue organizations.

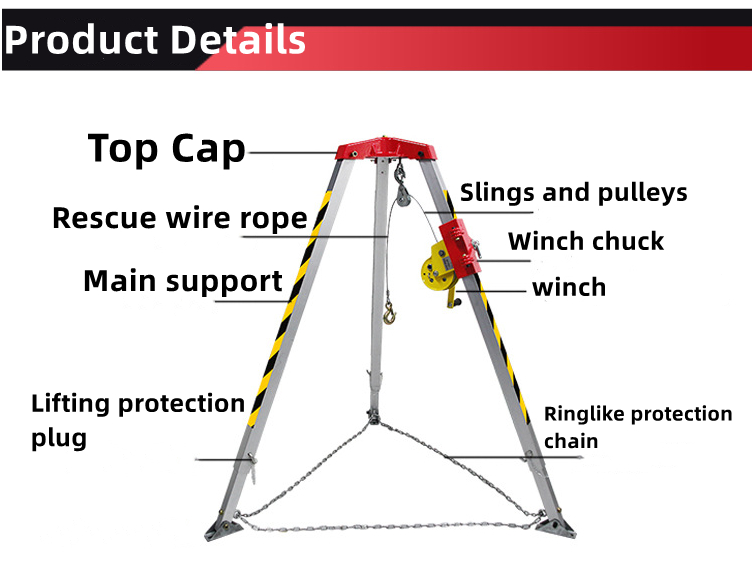

2、 Main features

1. The expandable leg made of high-strength light alloy is adopted, with a safety factor greater than 10, and the foot is equipped with a ring type protection chain;
2. The winch is equipped with lifting and lowering self-locking devices to ensure the safety of slings;
3. The sling shall be made of special stainless steel wire rope with good flexibility and will not be damaged due to corrosion or lack of oil;
4. Convenient assembly, the device can be installed at the wellhead and pithead according to local conditions, and is not limited by the uneven ground.

3,Tripod Parameters

Blocking force: 22kN

Blocking force: 22kN

Working height:

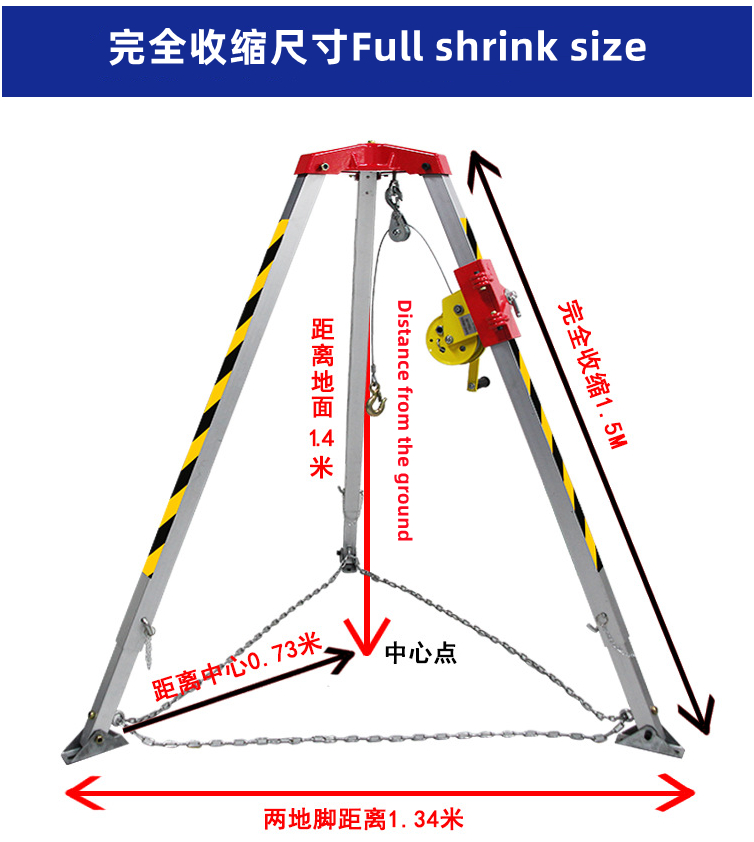

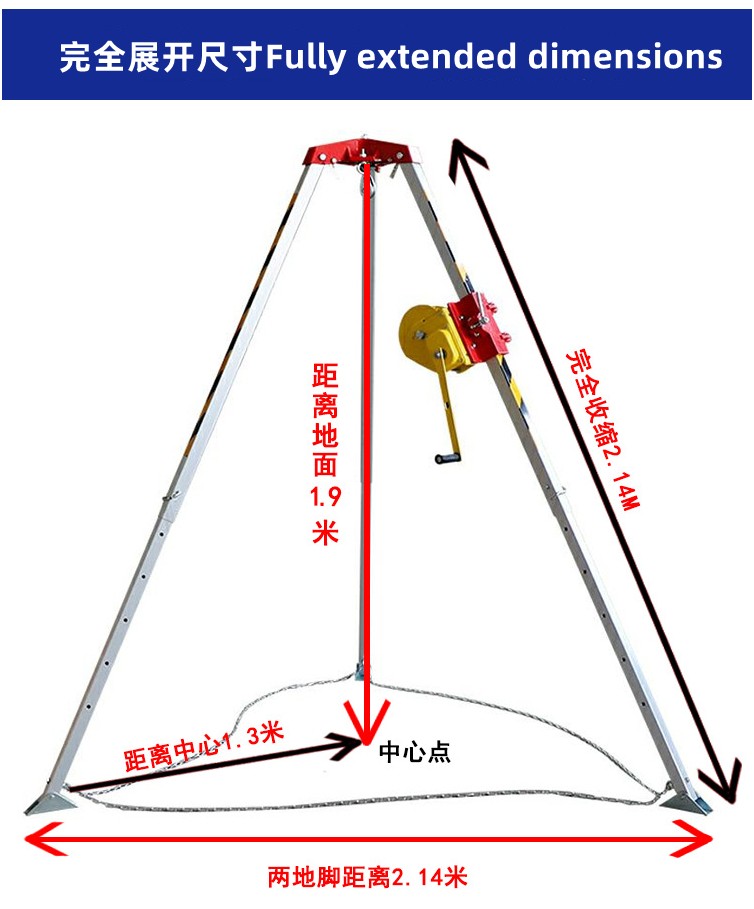

214cm (fully expanded) 134cm (fully retracted)
Package specification:
173 × thirty-nine × 36cm

4,Winch parameters

Wire rope:

20M

Gear ratio:

8:1
Working load:
180kg
Blocking force:
1800kg
Features:
winch with self-made brake device
