Musktool-RS-WS---2---EX Modbus 0-5V 0-10V 4 20mA RS485 High Temperature Humidity Sensor

Main Feature :
Serial No. : Lisa0951

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-RS-WS--2--EX Modbus 0-5V 0-10V 4 20mA RS485 High Temperature Humidity Sensor

Product description

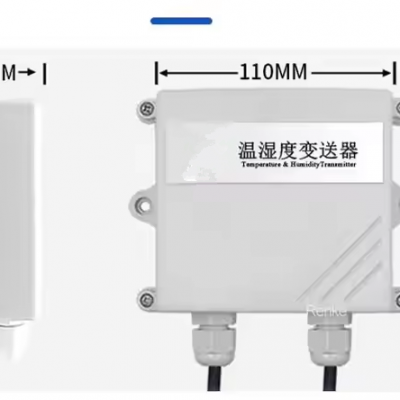

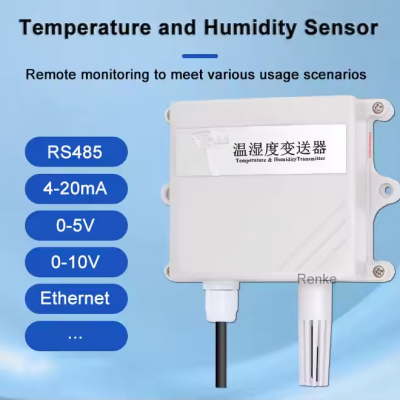

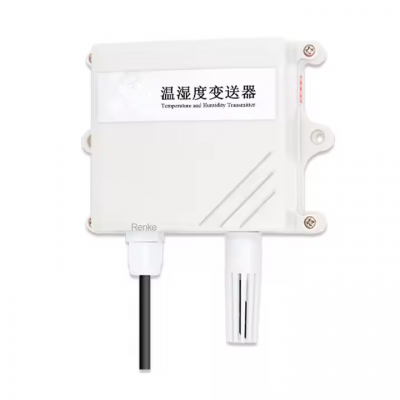

Our temperature and humidity sensor is a wall-mounted high-protection grade housing with a protection grade of IP65, which is rainproof and snowproof and has good air permeability. The circuit uses an industrial-grade microprocessor chip imported from the United States and an imported high-precision sensor, which has high accuracy and strong stability. Our temperature and humidity sensor uses a particle sintered probe sheath, and the probe is directly connected to the shell, which has a beautiful appearance.

Parameter	RS485 Output	4-20mA/0-5V/0-10V
Power supply	10~30V DC
Max. power consumption	0.1W(DC24V)	1.2W
Measure range	-40℃~+80℃, 0%RH~100%RH
Accuracy	±3%RH(60%RH,25℃), ±0.5℃(25℃)
Resolution	0.1℃, 0.1%RH
Data refresh time	1s	--
Component temperature resistance	-40℃~+80℃, 0%RH~95%RH (non-condensing)
Long-term stability	humidity ≤1%RH/y, temperature ≤0.1℃/y
Response time	temperature ≤25s (1m/s wind speed²), humidity ≤8s (1m/s wind speed²)

Lable: RS-WS-*-2-*-EX High Temperature Humidity Sensor
