Musktool-RS485 Output Acquisition Module Range Detection 10 multi Channel AC 5A 50A 10A 20A sensor Current Transmitter

Main Feature : Musktool-RS485 Output Acquisition Module Range Detection 10 multi Channel AC 5A 50A 10A 20A sensor Current Transmitter
Serial No. : Owen0089

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-RS485 Output Acquisition Module Range Detection 10 multi Channel AC 5A 50A 10A 20A sensor Current Transmitter

Product Description

Selection Guide
Product number	Power supply	Measurement range	Output signal
LC29A	24V DC	AC 0-5A	RS485
LC29B	24V DC	AC 0-10A	RS485
LC29C	24V DC	AC 0-20A	RS485
LC29D	24V DC	AC 0-50A	RS485

Range	Sample unit price
0-5A	$40
0-10A	$45.3
0-20A	$50.5
0-50A	$57.5

Supply Voltage	DC 24V (Current loss: <60mA; Power loss: <1.5W )
Detection range	Default AC 0-10A ( Optional 0-5A/0-20A/0-50A)

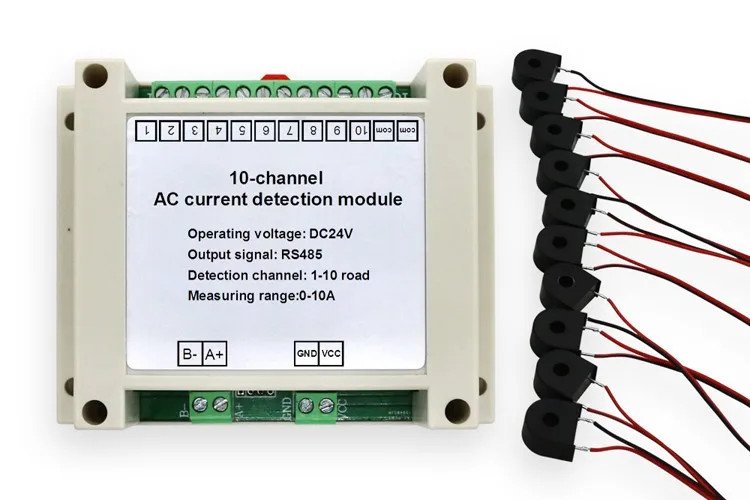

Signal input	Mutual inductor signal input (need different range please specify)
Collection and description	It is recommended to use an exchange of less than 500V and a frequency of 50Hz
Check the accuracy	+ 2.5% (in the case of precise regulation)
Temperature drift	±0.02%/℃
Response time	Data response time <0.05s
Data Refresh	The completion time of the data refresh is 0.1 seconds
Communication distance	<1000 m
Communication format	9600, 8, N, 1
Working temperature	-20~50℃
Appearance size	Long 115 * width 90 * high 40 (mm)
Shell material	Upper cover ABS, bottom shell ABS, clasp paraformaldehyde POM
Device address	1~247, the default is 1. 0xfa is a general address
Installation method	Guideway installation

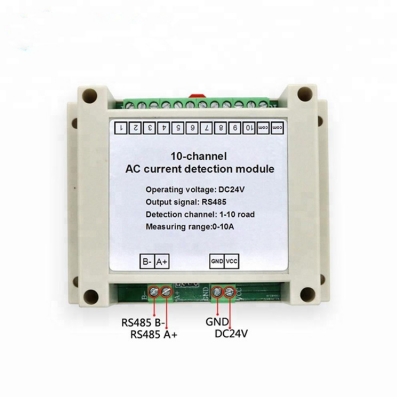

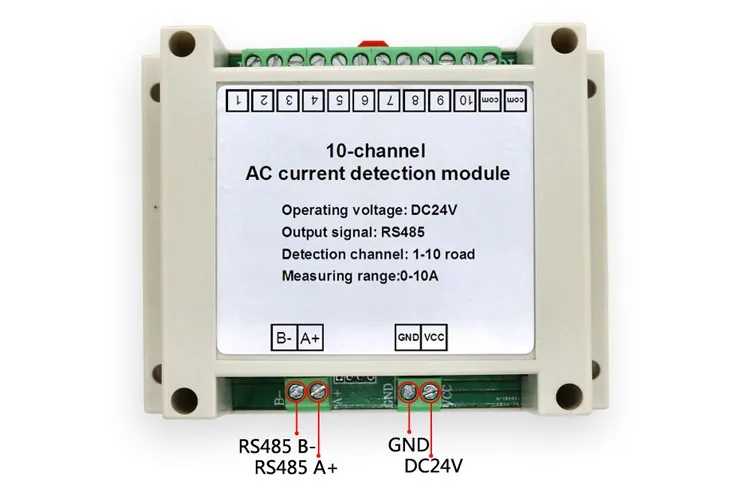

Connection Method

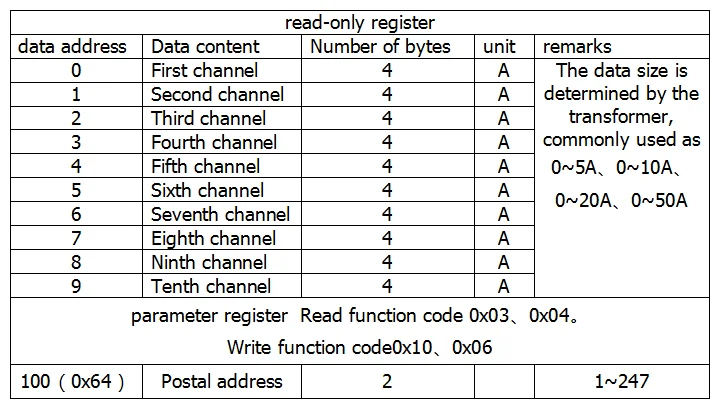

Communication Description:

Lable: Musktool-RS485 Output Acquisition Module Range Detection 10 multi Channel AC 5A 50A 10A 20A sensor Current Transmitter
