Musktool-Fast Response ATEX Certified Portable Nitrogen Purity Tester N2 Gas Detector High Precision
Nitrogen Purity Tester Functions

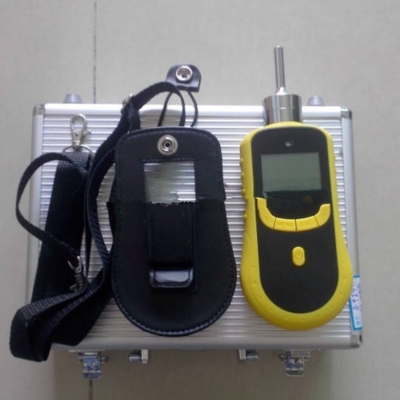

| 1. Monitor the Nitrogen gas concentration in environment and enclosed space and alarm. 2. With Self-calibration and zero calibration functions, makes the detection more accurate and reliable. 3. One press to restore factory setting, free from the bother of mis-operation With temperature and pressure compensation, this is able to realize gas concentration compensation under conditions of different temperatures or pressures. 4. Two-stage alarm with sound and light, alarm point is settable. 5. Rechargeable lithium polymer battery of large capacity. 6. Employing pumping sampling method and the pumping suction is adjustable. 7. Special engineering plastics housing of high intensity, anti-skipping, water-proof, dust-proof, explosion-proof. 8. Elegant and exquisite aluminum alloy suitcase |
Nitrogen Purity Tester Specification
Gas Detected | Nitrogen Purity / N2 | ||
Detection principle | Electrochemistry | ||

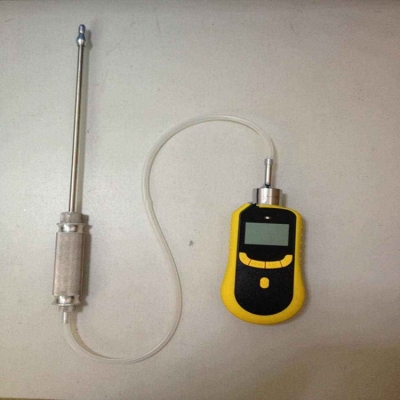

Sampling Method | Pumping suction, flow rate can up to 1L/min, ten grades of pumping suction for selection. | ||
Measure Range | 0-100%VOL | ||
Resolution | 0.01%VOL | ||
Precision | ≤± 3% F.S for normal sensor, .≤± 1% F.S for high precision sensor | ||
Signal Output | High-speed data transmission by USB, available for data downloading and printing (optional) | ||
Response Time | ≤10S | Recovery Time | ≤10S |
Repeatability | ≤±1% | Linearity error | ≤±1% |
Zero shift | ≤±1%(F.S/year) | Display | LCD dot matrix display |
Operating language | English | Gas unit | %VOL |
Temperature | -20℃~50℃ | Humidity | 0-95%RH |
Explosion-Proof | II 2G Ex ia IIC T4 Ga IP66 | Degree of protection | IP66 |
Alarm mode | Sound, light, vibration | Operating time | 12h |
Dimensions | 205*75*32mm | Weight | 300g |
