Musktool-Non-contact Motor Rotation Indication Three Phase Rotation Tester PM5900
Product descriptions from the supplier
PM5900 Non-contact Motor Rotation Indication Three Phase Rotation Tester
Product Description
| PM5900 Motor and Three Phase Rotation Tester is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction. Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft. It is durable, reliable and light-weight handheld device, which is necessary tool for those who often install, repair or maintain three-phase system or motor. |
Features | ||
Phase Rotation Tester Detection | For testing Phase sequence, default phase of the three phase wires | |
Non-contact motor rotation Detection | For testing motor rotation direction & connection sequence | |
Magnetic field Detection | For testing the existence of the magnetic field | |
Specifications | ||
Operating Voltage | 120V to 400V AC | |
Current Consumption | ≤20mA | |
Frequency Range | 2Hz ~400Hz | |
Resistance | 200Ω/2kΩ/20kΩ/200KΩ/2MΩ/20MΩ | |
General Specifications | ||
Power supply | 9V 6F22 | |
Weight | 168g | |
Size | 128 x70 x30 mm | |
Safety Rating | CE CAT.III600V RoHS | |

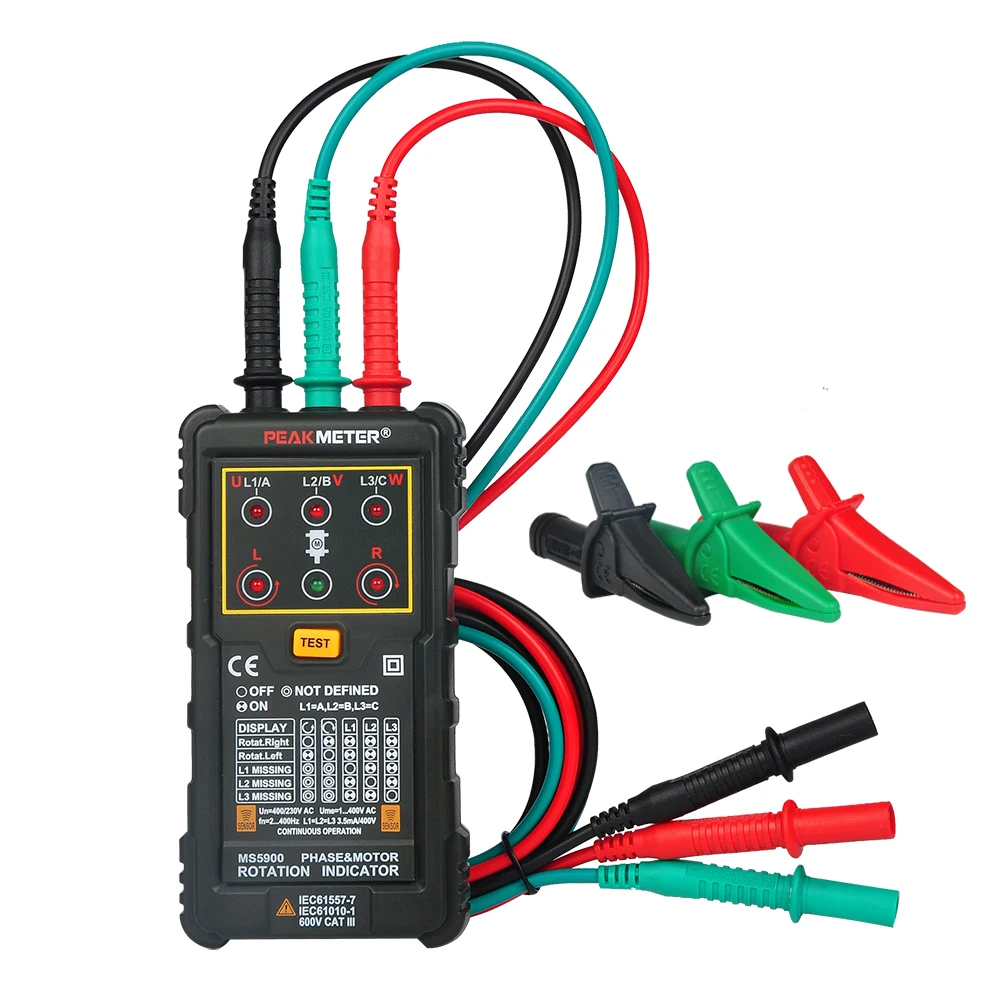

Accessories
Test lead | Three pieces |
Clip | Three pieces |
A AA battery | Three pieces |
User’s manual | One piece |
Carry case | One piece |
Gift box | One piece |

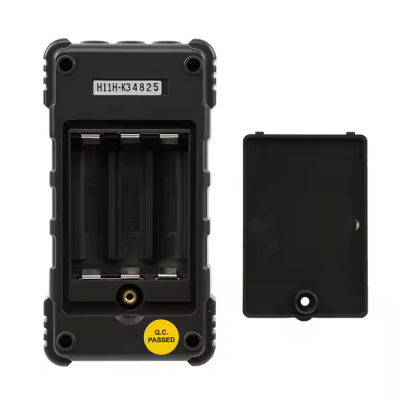

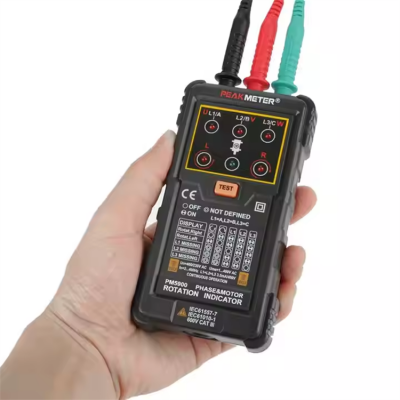

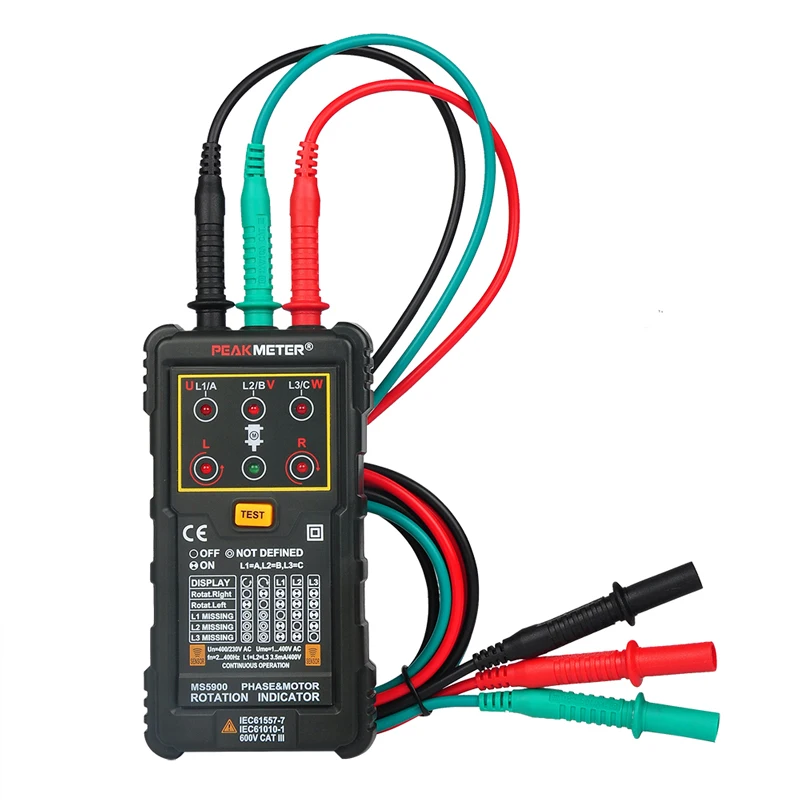

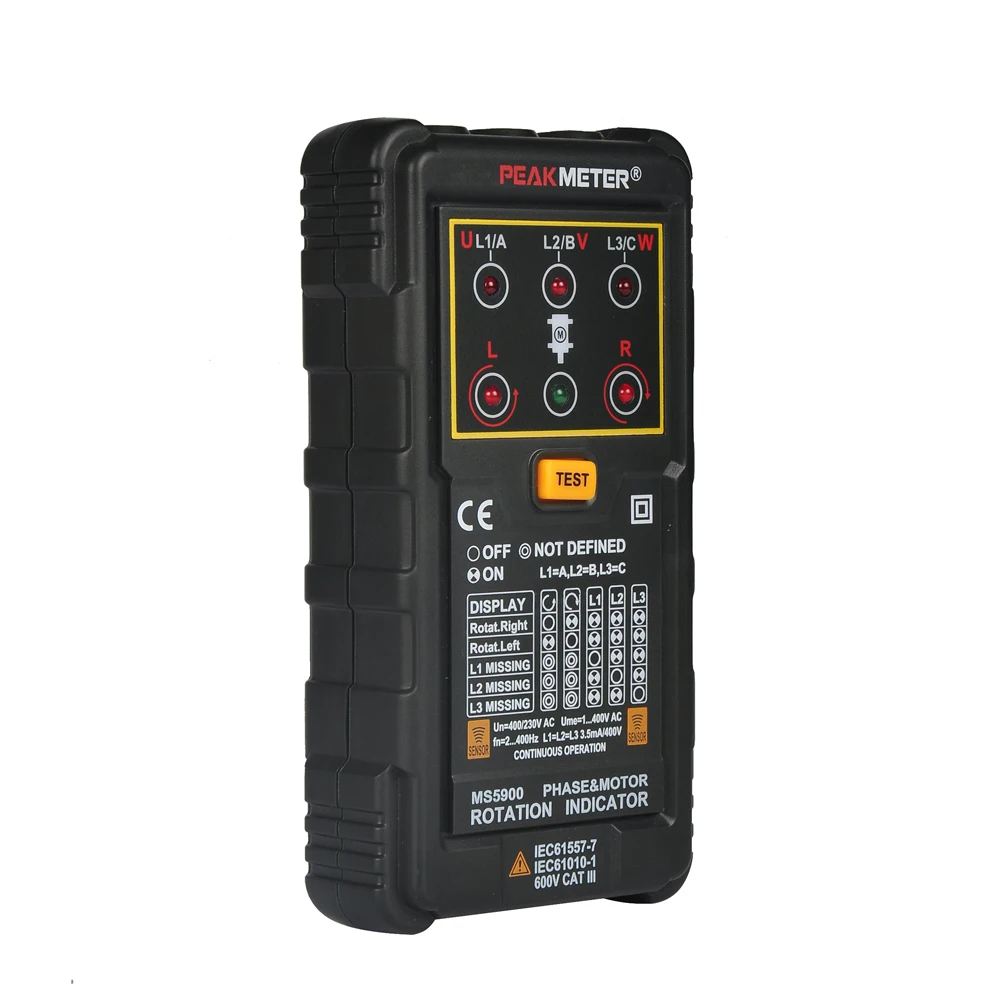

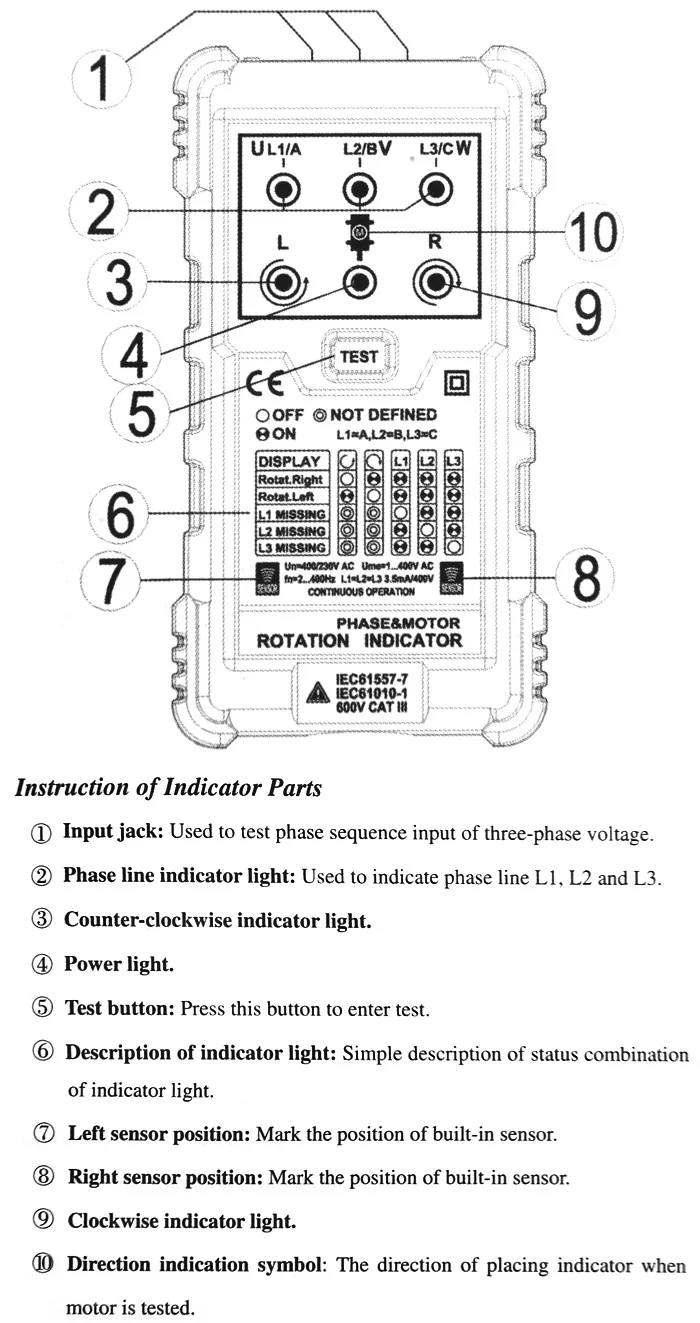

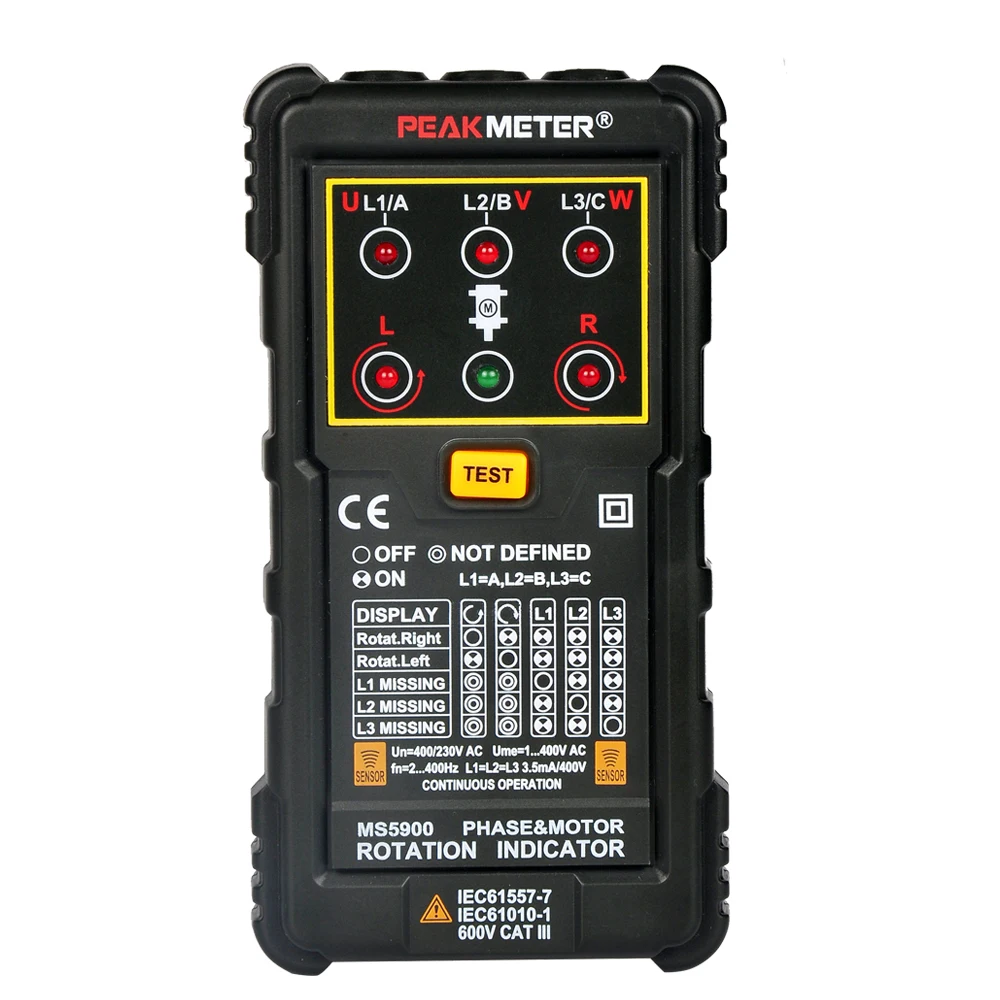

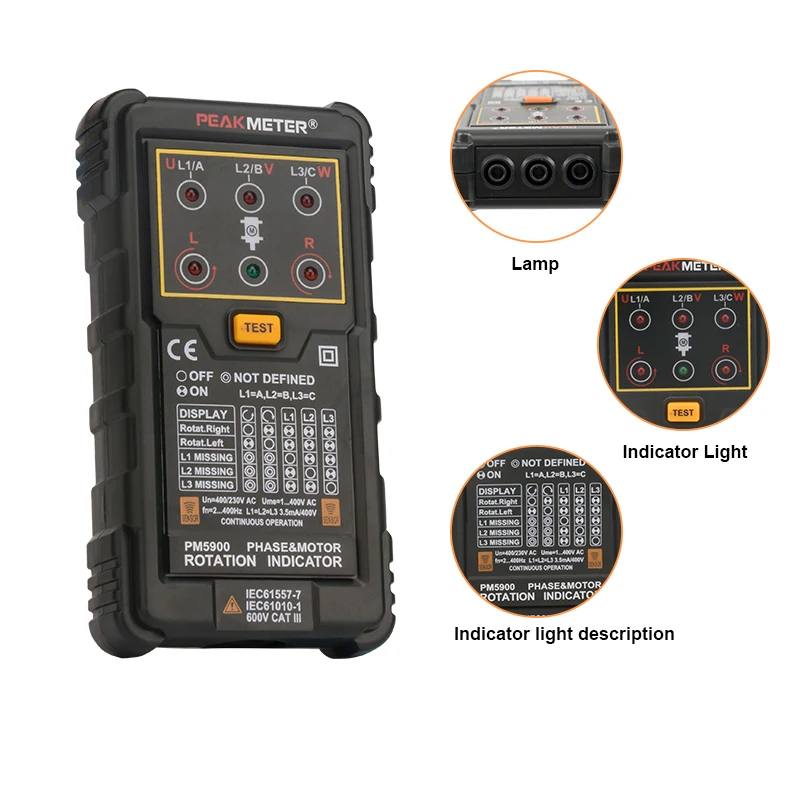

Detailed Images
Lable:
Three Phase Rotation Tester
