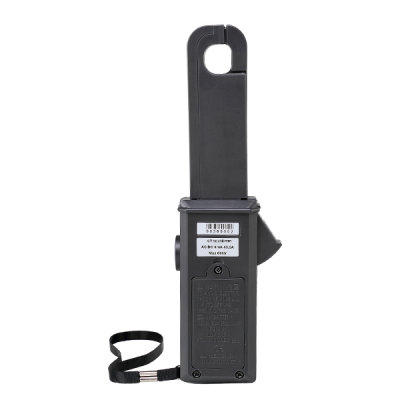

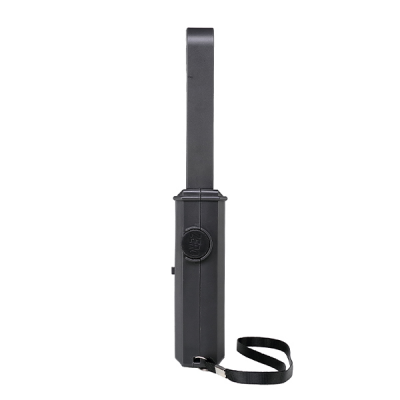

Musktool-ETCR6000B Portable High Accuracy AC/DC Leakage Current Clamp Meter
Ⅰ. INTRODUCTION
Musktool-ETCR6000B AC/DC Leakage Current Clamp Meter also named: Car Leakage Current Clamp Meter, Car Standby Current Clamp Meter, Car Inrush current Tester, Car Charge Current Tester. It is specially designed for online measurement of AC/DC leakage current, current below 600V by adopting up-to-date CT technology and digital integration technology. It is especially suitable for measure car standby current, leakage current, inrush current. It is a product with the characteristic of relatively small size, high accuracy, strong anti-interference capability and automatic shifting. It is apply to car leakage rapid detection, consumed current detection, quickly find the fault of the wire broke leakage, equipment fled electric, line contact with iron, measuring the motor inrush current and alternator charge current etc. It could be widely use in those fields as car repair, car leave factory test, car parts test, the current detection in telecommunication room, electric power overhauling, meteorology, oil detection, etc. It has those functions as peak holding, data holding and data storage. It obtains one RS232 interface, communication cable and software, through the computer, it can online real-time monitoring, historical query, dynamic display, MIN-AVG-MAX indication, alarm setting and indicating, data reading, saving and printing. |
Ⅱ. APPLICATION
Specification
Function | Measurement of AC/DC current, leakage current，Car Leakage Current Test |
Power Supply | Zn-Mn dry battery,6F22,9V, continuous use for 100h |
Test Mode | Clip-on CT, noncontact measurement |
Clamp Size | 16*18mm |
Measurement Range | 0mA~60.0A AC/DC |
Resolution | 1mA AC/DC |
Accuracy | ±2%rdg±5dgt (23℃±5℃, below 75%rh) |
Display Mode | Four digits LCD display |
Dimension | LWH: 215mm×65mm×34mm |
LCD Dimension | 35mm×21.5mm; display domain: 32mm×15mm |
Sampling Rate | 2 times/s |
Frequency | AC: 45Hz-400Hz |
Polarity Indication | DC current auto identified and display“—” |
Test Position | Tested wire in the jaw center |
Range Shift | Automatically |
Line Voltage | AC600V |
RS232 Interface | Data stored in the memory of the meter via RS232 upload to PC |
Com-Configure | Baud rate:9600, data bit:8, stop bit:1, check bit: NONE |
Data Memory | 99units, FULL blinks when the memory is full |
Reading Hold | DH indicating the reading is hold |
Out of Range | OL indicating the current is out of range |
Auto Power-off | 5 Minutes after power on, it will power off automatically to lower the power consumption |
Battery Voltage | Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed |
Weight | 220g(including the battery) |
Working Current | 10mA |
Humiture | -10℃-50℃,below 80%rh |
Limit Temperature Error | -10℃-0℃ and 40℃-50℃, within 2%rdg |
Humiture Storage | -10℃-60℃,below 70%rh |
Insulating Strength | AC 3700V/rms. (between the alloy of the clamp and the housing) |
Applicable safety rules | IEC1010-1, IEC1010-2-032, pollution:2, CAT Ⅲ(600V) |

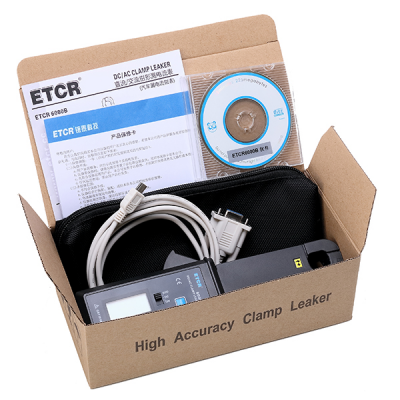

Accessories | Meter:1pc; Toolkit:1pc; RS232 communication line;Disk:1pc; Case:1pc |
