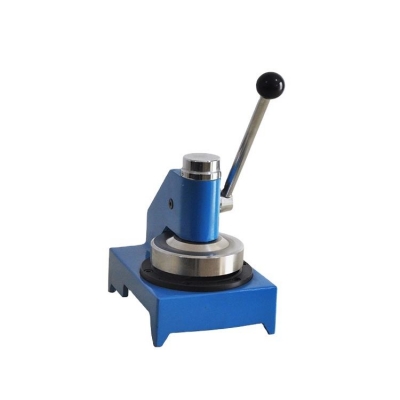

Lab paper 10x10cm sample cutter for gsm paper grammage and slice 10x10cm sample cutter for paper circle cutter testing

  • Main Feature :
  • Serial No. : Zoe178

Musktool- Lab paper 10x10cm sample cutter for gsm paper grammage and slice 10x10cm sample cutter for paper circle cutter testing

Technical parameters:It is the sample cutter for the test of all kinds of paper grammage and slice .The cutter conforms to the standard of QB/T1671—98.

Specification

Area

100Cm2

Specimen diameter

Φ112.8±0.05mm

Specimen thickness

paper: 0.1-1.0 (mm), cardboard: single wall <0.6mm

Dimension

270×260×405 (mm)

Weight

15kg

Structure and operation

Structure: base, rack, gear, rack, upper edge and lower edge, specimen baffles, received board and operating handle.
Put the material into the blade between the upper edge and lower edge, press the handle, the blade on the upper edge pressed down
and cut the sample. Then falls on the received board, and automatically slide out from the side. After cutting, release the
handle, the upper edge blade reset automatically by spring effect.

Installation and Maintenance

place noto a solid flat worktable, can be work. After use should be thoroughly wiped clean and clear. If long period not use,
should be to wipe the blade up and down with oil.
