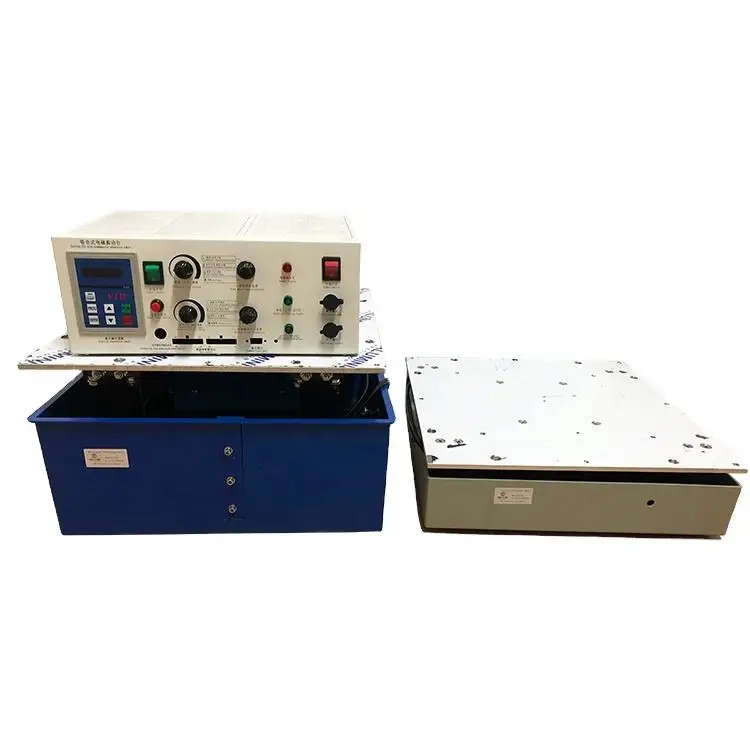

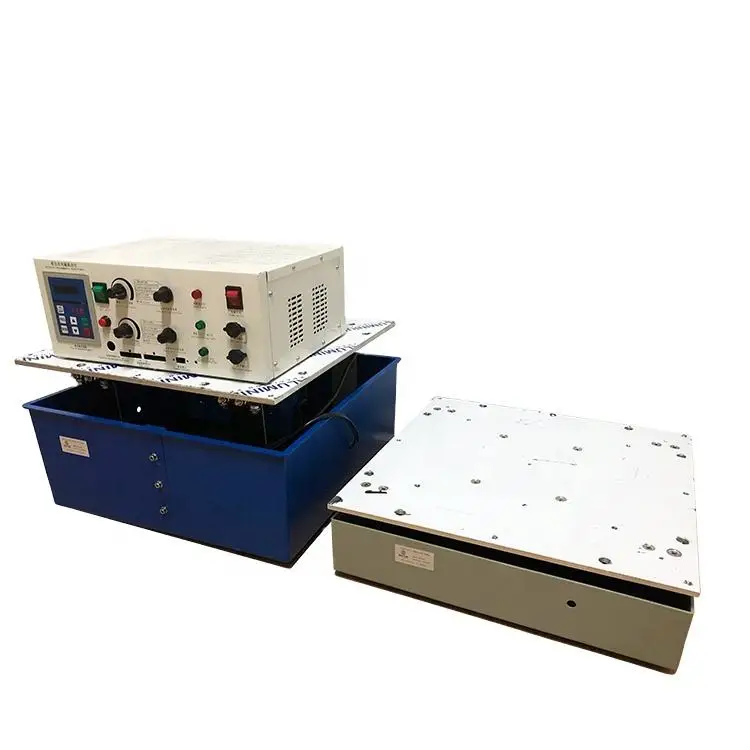

Musktool- Lab Electromagnetic shaker vibration mobile phone vibration tester machine
Any product in process of transit, use, preservation will produce shock, vibration, which may cause seriously affecting and unnecessary economic losses, in order to avoid this situation, must know in advance the components resistant to vibration life. |
Technical parameters:
Vibration direction | vertical, horizontal |
Platform body size | 500*500mm |
Maximum test load | 100kg |
Vibration machine power | 2.2KW |
Supply voltage | 220V + 20% |
Time control | Any time can be set (seconds) |
Maximum current | 10A |
Amplitude | 0 to 5 mm |
Maximum acceleration | 0 ~ 20g |
Accuracy | Displayed to 0.01Hz, 0.1Hz precision |
FM function | 1 ~ 600HZ, 15 segments multiplies |
low to high frequency | |
High frequency to low frequency | |
Low to high and then low frequency / can be recycled | |
Sweep function | 1 ~ 600HZ, can be arbitrarily set |
Programmable Function | 1 ~ 600HZ, 15 segments each can be set |
Logarithmic function | 1 ~ 600HZ |
Lower frequency to the upper frequency | |
Upper frequency to lower frequency | |
lower frequency to the upper frequency, then lower | |
3 modes logarithmic frequency / can be recycled | |
Vibration waveforms | sine wave (half-wave / full-wave) |
Time control | 1 second to 30 days can be set (seconds) |
Maximum exciting force | 2000kgf |
Noise | 60 db or less |
Working condition | -10 ℃ ~ 60 ℃, 10% ~ 95% |
