Musktool- HY-VT-11 vibration transducer

Description

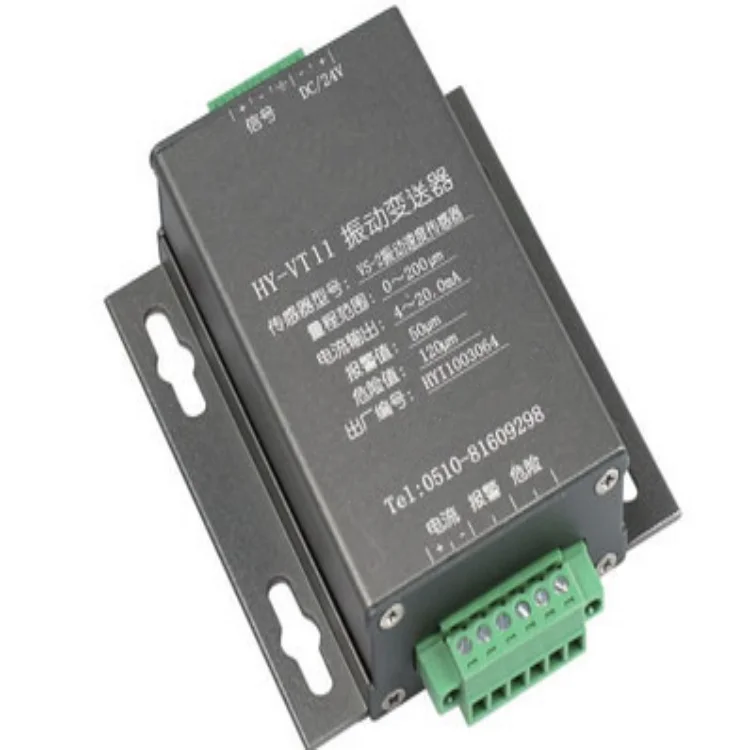

HY-VT-11 vibration transducer and VS-2 vibration speed sensor are used for measuring sleeve vibration of rotating equipment. It is small size, high precision, easy to install. Transducer supply voltage is 24V, can get value of displacement and severity on line, 4-20mA output, suitable for connecting with DCS. Customers choose according to their requirement.

Technical Parameters

1. Measuring range: in 10~300Hz frequency
Amplitude 0~200μm or 0~300μm(P-P);
Severity 0~20.0mm/s or 0~20.0mm/s(RMS);
2. Linear error:≤0.5%;
3. Currency output:4~20mA(loading resistance≤850Ω);
4. Supply voltage:DC24V power≤1W;
5. Environmental temperature: transducer -15℃~65℃;
6. Installation: transducer in local protecting box or control cabinet;
7. Overall size:76×105×27(mm);
8. Hole:61.5×50 Φ4(mm)
