Musktool-Habotest HT207A 2000 Counts Digital Clamp Meter AC DC Voltage and Current Electrical Installation and Maintenance

Main Feature :
Serial No. : monica1013

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Habotest HT207A 2000 Counts Digital Clamp Meter AC DC Voltage and Current Electrical Installation and Maintenance

Product descriptions from the supplier

Products Description

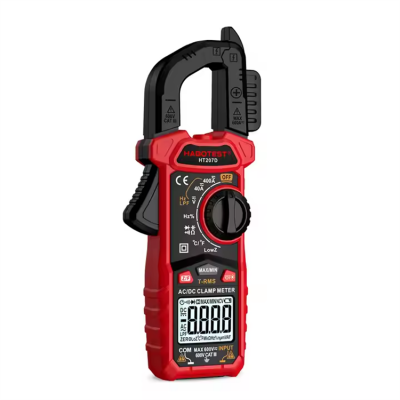

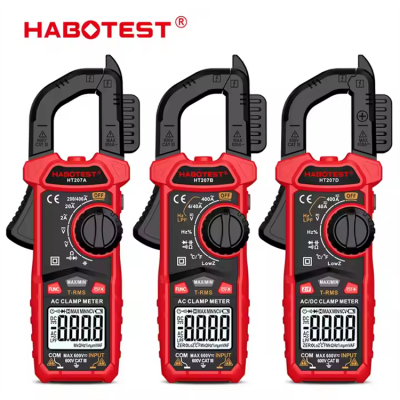

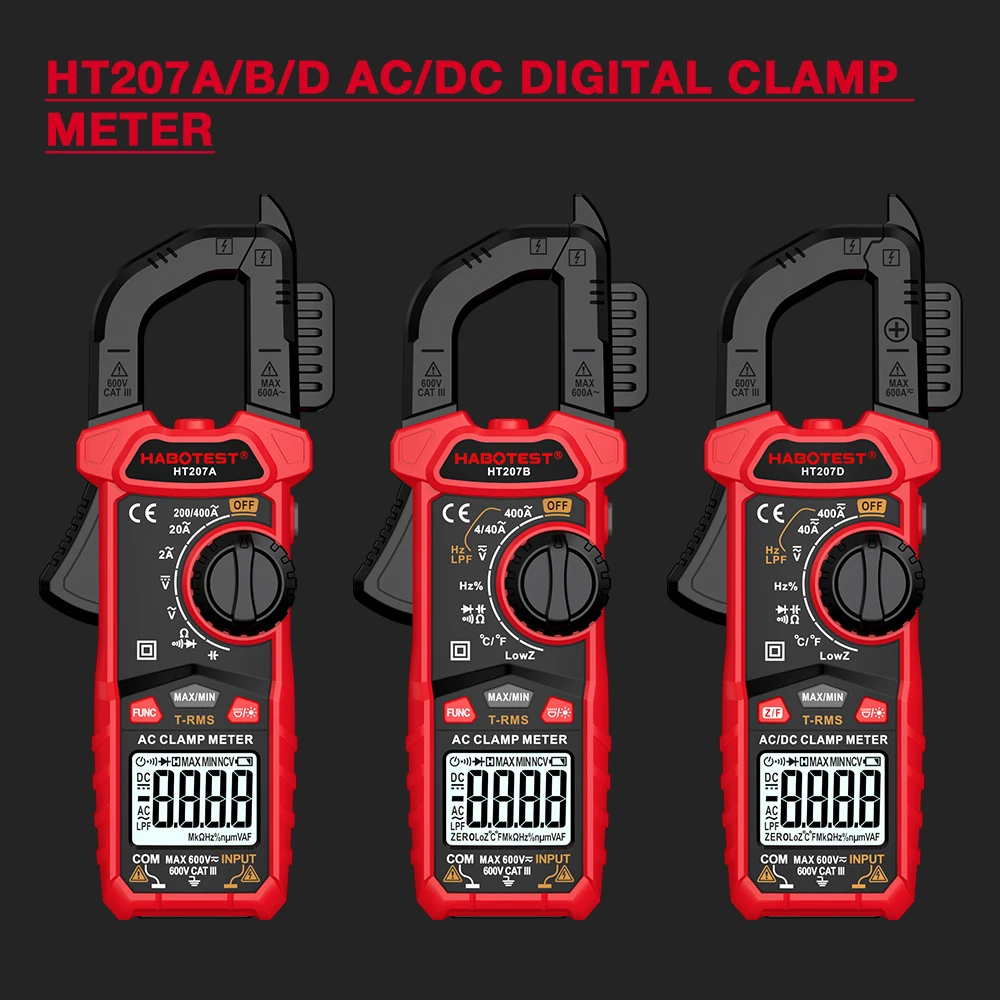

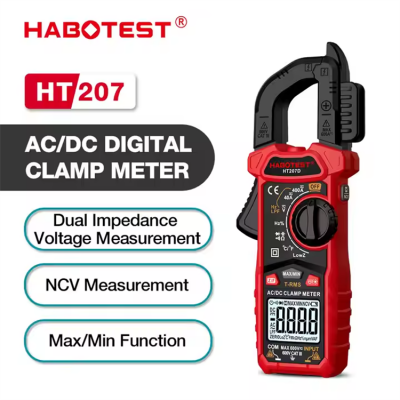

Habotest HT207A

Function	Range		Accuracy
			HT207A	HT207B	HT207D
DC Voltage	200mV/2V/20V/200V/600V		±(0.5%+5)
	400mV/4V/40V/400V/600V			±(0.5%+5)	±(0.5%+5)
AC Voltage	2V/20V/200V/600V		±(1.0%+5)
	4V/40V/400V/600V			±(1.0%+5)	±(1.0%+5)
DC Current	40A/400A				±(2.5%+5)
AC Current	2A/20A/200A/400A		±(2.5%+5)
	4A/40A/400A			±(2.5%+5)
	40A/400A				±(2.5%+5)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ		±(1.0%+5)
	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ			±(1.0%+5)	±(1.0%+5)
Capacitance	2nF/20nF/200nF/2μF/20μF/200μF/2mF		±(4.0%+5)
	4nF/40nF/400nF/4μF/40μF/400μF/4mF			±(4.0%+5)	±(4.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz			±(1.0%+3)	±(1.0%+3)
Duty	1%~99%			±(1.0%+3)	±(1.0%+3)
Temperature (°C/°F)	-20°C~1000°C			±(1.0%+2)	±(1.0%+2)
	-4°F~1832°F			±(1.0%+2)	±(1.0%+2)
Counts			2000 counts	4000 counts	4000 counts
Auto/Manual range			Auto	Auto	Auto
Continuity			√	√	√
Diode test			√	√	√
Data Hold			√	√	√
NCV				√	√
Back light			√	√	√
Flashlight			√	√	√
DCA ZERO					√
Low battery indication			√	√	√
Auto power off			√	√	√
True RMS			√	√	√
LPF				√	√
MAX/MIN			√	√	√
LowZ				√	√
Beep			√	√	√
Power		2x1.5V AAA Batteries
Weight		Approx.190g
Size		193x79x34mm
QTY		40pcs
Safety Rating		EN61010-1,-2-030 EN61010-2-033, EN61326-1 CAT III 600V

Lable: Current Electrical Installation
