Musktool-Habotest HT206A True RMS Ammeter Budget Electrical Ampere Tester AC Amp 600A Current Multimeter Digital Clamp Meters

Main Feature :
Serial No. : monica1005

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-Habotest HT206A True RMS Ammeter Budget Electrical Ampere Tester AC Amp 600A Current Multimeter Digital Clamp Meters

Product descriptions from the supplier

Function	Range	Accuracy
		HT206A	HT206B	HT206D
DC Voltage	600V	±(0.5%+3)
	600mV/6V/60V/600V		±(0.5%+3)	±(0.5%+3)
DC Voltage	600V	±(0.8%+5)
	6V/60V/600V		±(0.8%+3)
DC Current	60A/600A			±(2.5%+5)
AC Current	60A/600A	±(2.5%+5)	±(2.5%+5)	±(2.5%+5)
Resistance	6kΩ/60kΩ	±(1.0%+3)
	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ		±(1.0%+3)	±(1.0%+3)
Capacitance	10nF/100nF/1uF/10uF/100uF/1mF/100mF		±(4.0%+3)	±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10k Hz/100k Hz/1M Hz/10MHz		±(0.5%+5)	±(0.5%+5)
Duty	1%~99%		±(1.0%+2)	±(1.0%+2)
Temperature	-40℃~1000℃ -40℉~1832℉		±(1.0%+2)	±(1.0%+2)
Features
Display		4000 Counts	6000 Counts		6000 Counts
Auto/Manual range		Auto	Auto		Auto
On-off test (acousto-optic indication)		√	√		√
NCV detection (LED and beep sound alarm)			√		√
Diode test		√	√		√
Continuity(LED and beep sound alarm)		√	√		√
MAX /MIN Measurement		√	√		√
Data hold		√	√		√
True RMS		√	√		√
LPF			√		√
LowZ			√
Low power indication		√	√		√
Auto power off		√	√		√
Back light		√	√		√

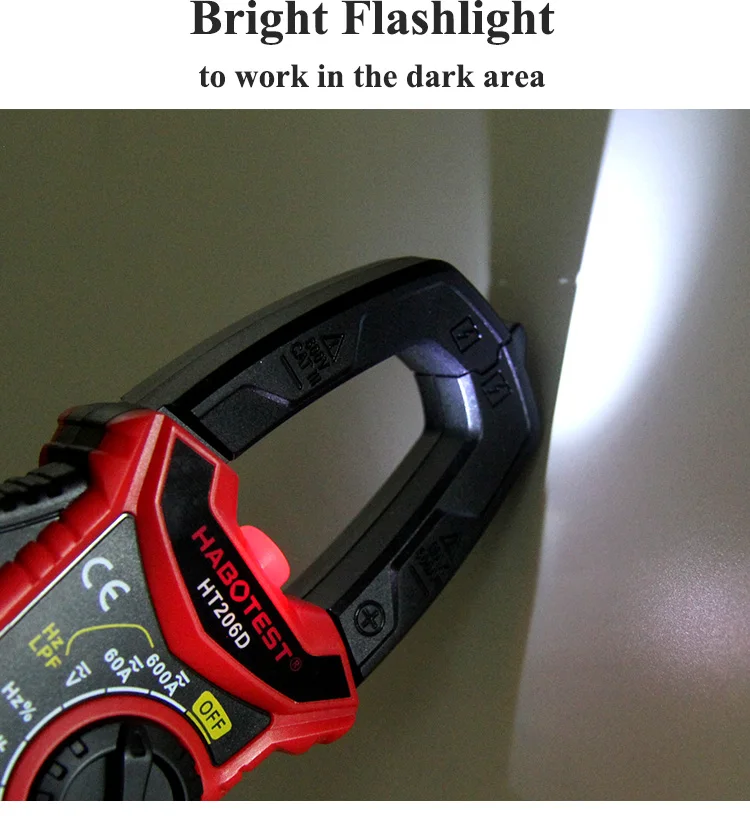

Flash light		√	√		√
General Specifications

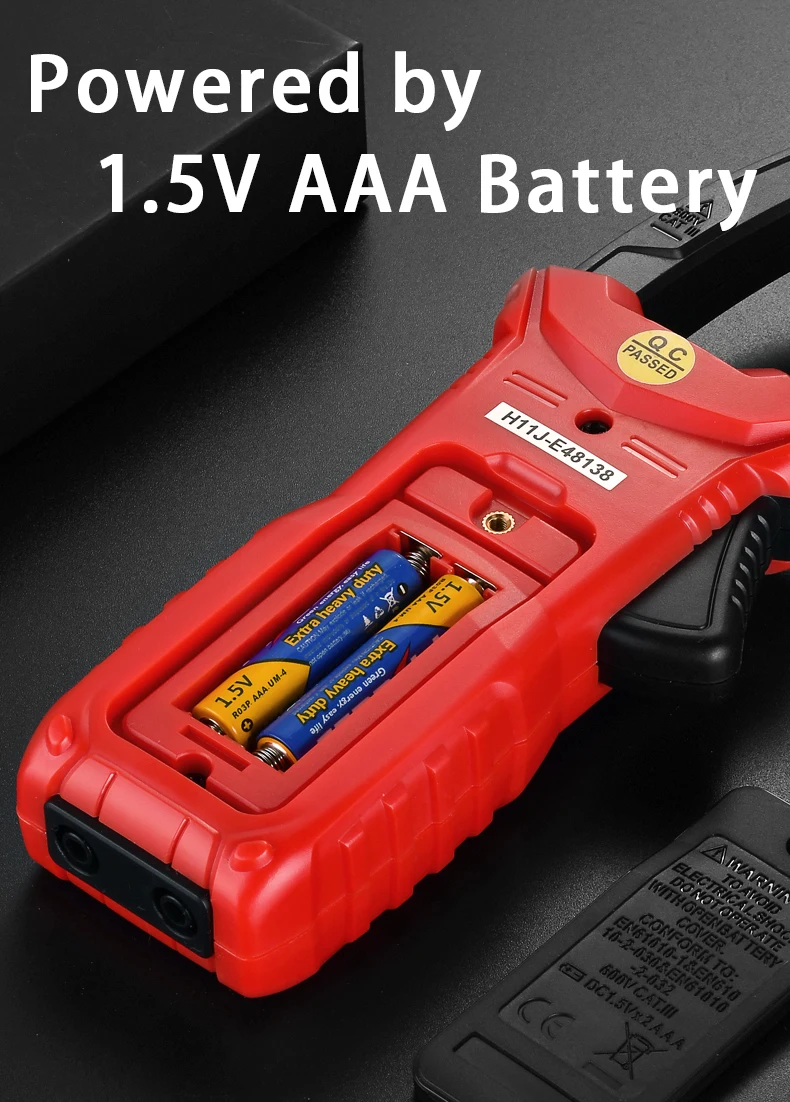

Power		2x1.5V AAA batteries
Weight		Approx. 260g

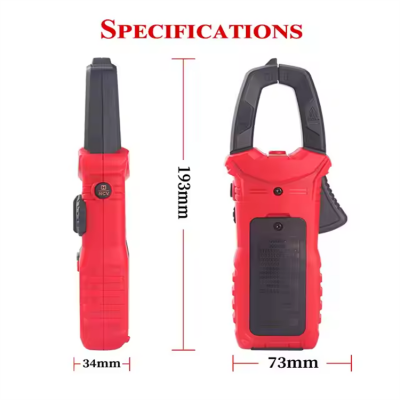

Size		1937334mm

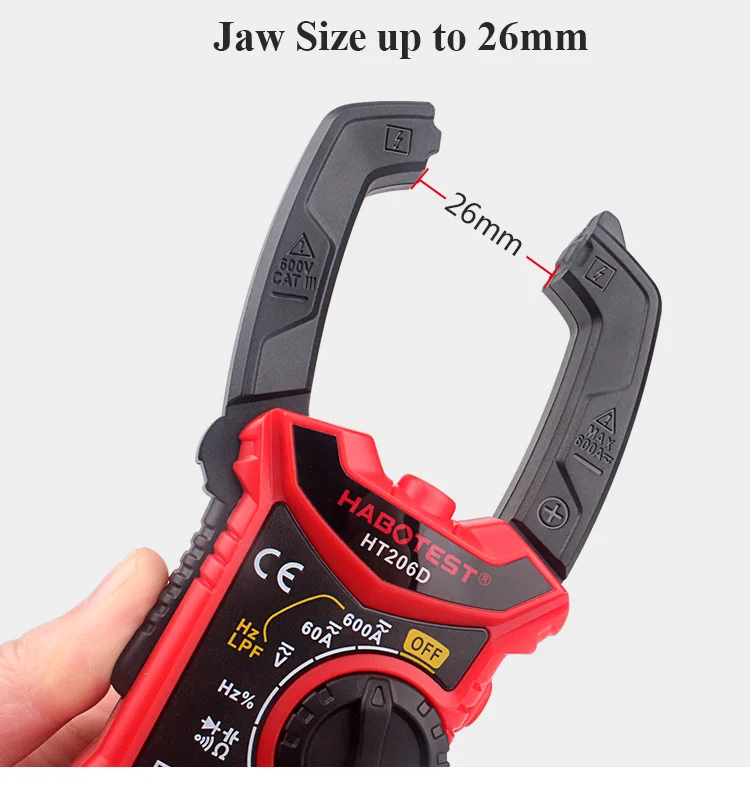

Jaw Size		φ26*44mm
Safety Rating		EN61010-1/EN61010-2-030 EN61010-2-033, EN61326-1 CAT III 600V

Lable: Digital Clamp Meters
