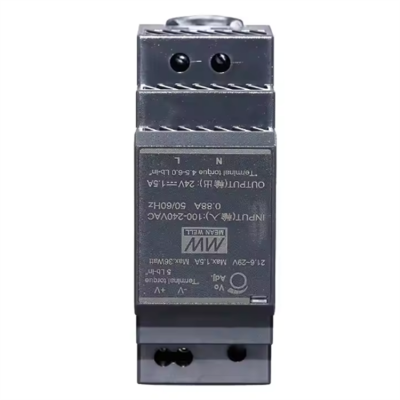

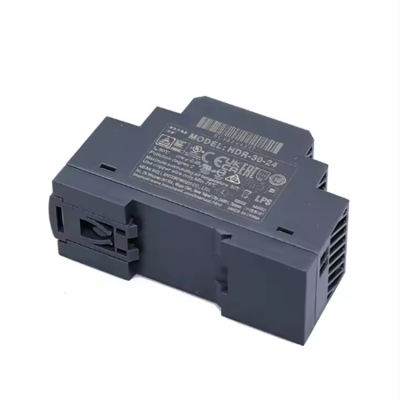

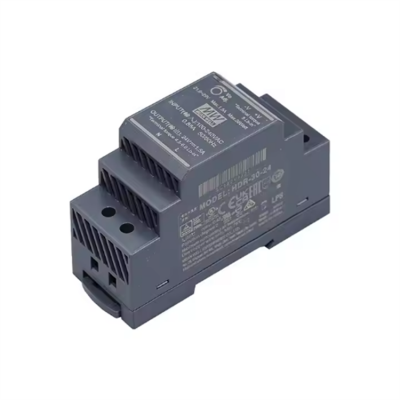

Musktool-30W R HDR-30-5 Small Volume 5V DC Switching Power Supply Rail Type Step Loader for Industry Application 2A 3A Output

Main Feature :
Serial No. : monica0976

Specification

Contact Us For Quotation

Email: 464560351@qq.com

Whatsapp&Wechat:+8618620373879

Musktool-30W R HDR-30-5 Small Volume 5V DC Switching Power Supply Rail Type Step Loader for Industry Application 2A 3A Output

Product descriptions from the supplier

Model Name	HDR-30
Brand Name	MEAN WELL
AC Input Voltage Range	85 ~ 264VAC(277VAC) 120 ~ 370VDC(390VDC)
Output Type	Single
Output Voltage	5V 12V 15V 24V 48V
Output Frequency	47 ~ 63Hz
Output Power	30W
Over-Voltage Protection	Shut down o/p voltage, re-power on to recover
Over Load Protection	105 - 135% fold back current limiting auto- recovery
Error	±2% ±1%
Working Temperature	-30℃-+70℃
Dimension	359054.5mm (LWH)
Weight	0.13kg
Packing	96pcs/carton/14.2kg/1.04CUFT
Warranty	3 years
Place of Origin	China

Lable: Power Supply
