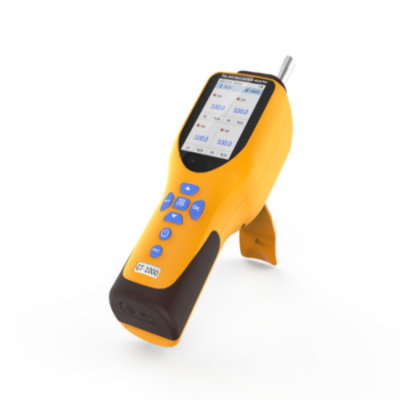

GT-1000-JM(NH3) Portable ammonia gas detector, Range:0-100PPM
Category | Specification |
Product Type | GT-1000-JM(NH3); Portable Ammonia Gas Detector |
Sensor Type | Electrochemical gas sensor |
Detection Range | 0-100PPM |
Resolution | 0.01PPM |
Scalable Gas Sensor | User can customize 1-5 gas sensors in any combination, or customize 3 gas sensors plus 1 dust sensor |
Dust Sensor (Optional) | Laser dust sensor (0.3/0.5um,1.0um,2.5um,10um) |
Temperature and Humidity | Temperature detection range: -25~85℃ Humidity detection range: 10~90%RH |
Detection Pattern | Sample Method: Pumping, with built-in high-power pump allowing the device to work under tiny negative pressure conditions, with a flow rate of 500ml/min. Detection Accuracy: ≤±3%F.S Linearity Error: ≤±2% F.S Reaction Time: ≤30 S(T90) Zero Drift: ≤±2% F.S Detection Method: Real-time detection mode and timing detection, cycle detection mode can be switched freely. |
Storage Method | Automatically saving and manually saving are available. Each channel has 30,800 groups of data, which users can view on the display. |
Explosion Proof Sign | Ex ia IIC T4 Ga |
Shell Case Material | ABS+PC |
IP Rating | IP66 |
Operating Temperature | -20 ~ 50℃ |
Power | 3800mA high capacity polymer rechargeable battery |
Relative Humidity | ≤90%RH, Non-condensing |
Dimensions / Weight | Dimensions: 255*80*60 mm (L×W×H)
Weight: 0.5 Kg (net weight) |
Operating Pressure | 108Kpa±10% |
Standard Accessories | Gas detector Portable aluminum case User manual USB charger + Data cable (Need the user to prepare the charging adapter) Calibration cover |
Optional Accessories | Micro printer & connected cable Bluetooth printer Vapor filter (external) Hose Scalable handle (stainless steel, approx 55cm) |
